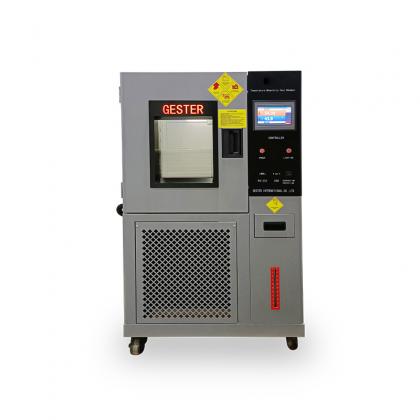

Environmental Chamber Temperature and Humidity Test Chamber GT-C52

Environmental test chamber climate chamber

Brand:
GESTER
Item NO.:
GT-C52
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
10-30 days

Inquire now

Product Detail

Temperature and Humidity Test Chamber GT-C52

<br />

Product Introduction of temperature and humidity test chamber

Application of Environmental Chamber:

Temperature Humidity Chamber for conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.

Control System

Touch screen, South Korean import,900 temperature controller
Temperature and Humidity Chamber Control mode: Touchpad
Display: LCD display, Korean TEMi880, programmable.
System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another.
Cycle setting: each operation procedure can carry out 9999 times or heaps of times cycle and repeated performance, and to the degree, divide further 5 segmentation sections to do part cycle of the extra.

Test Space Options

Capacity

80L

150L

225L

408L

612L

1000L

Inside dimension

WxHxD(cm)

40x50x40

50x60x50

50x75x60

60x85x80

80x90x85

100X100X100

Outside dimension

WxHxD(cm)

88x135x99.5

100X146X110

123x136X120

110x171x137

130x181x137

152x 210x 127

Key Specifications of temperature and humidity chamber

Temperature range (optional, can be custom-made)	-20～150℃	-40～150℃		-60～150℃
Humidity range	20%～98%, can be set.

Rate of temperature increasing	Room temperature～150℃		About 45 minutes(non-linear no-load, about 3.5℃/minute)
	Room temperature～-20℃		About 45 minutes(non-linear no-load, about 1.2℃/minute)
Machine precision	Control accuracy (test precision)		Temperature		+/-0.5℃
			Humidity		+/-1%RH
	Distribution accuracy (uniformity)		Temperature		+/-1.0℃
			Humidity		+/-2%RH
Environment temperature	5℃-28℃
Environment relative humidity	≤85%RH
Power voltage	220V AC(+/-10%), protect ground wire, ground resistance≤4Ω.
Frequency	50+/-0.5Hz
Power switch	Air-break switch(40A, knife switch or outlet is prohibited to use.)
Power	4.5KW
Humidification water	Resistivity(≥500MΩ)
Requirement of ambient air quality	Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby.
Power supply	AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage.
Max loading capacity	8KVA
Max operating current	30A
