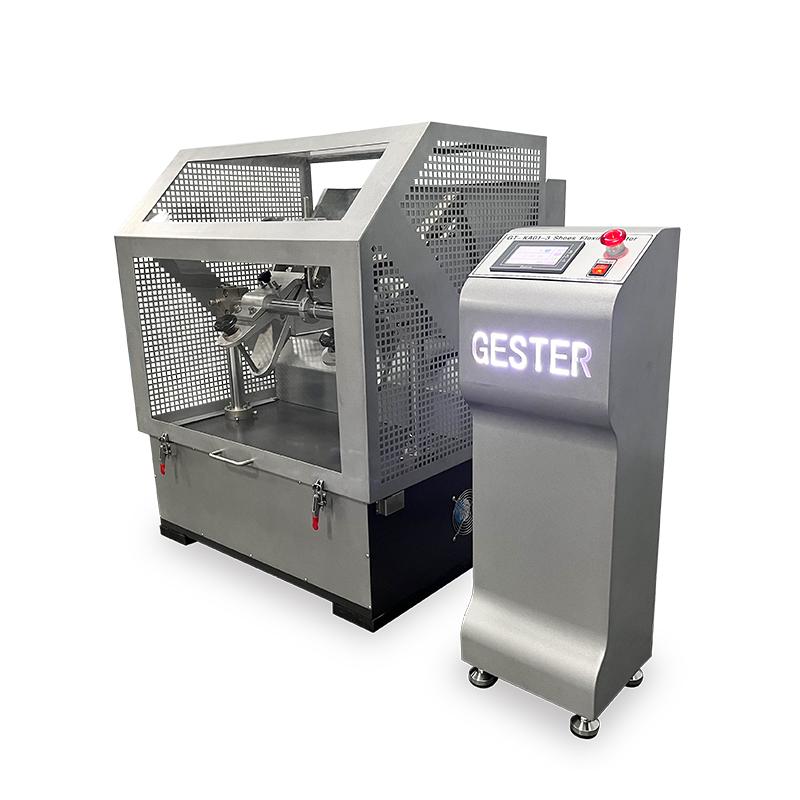

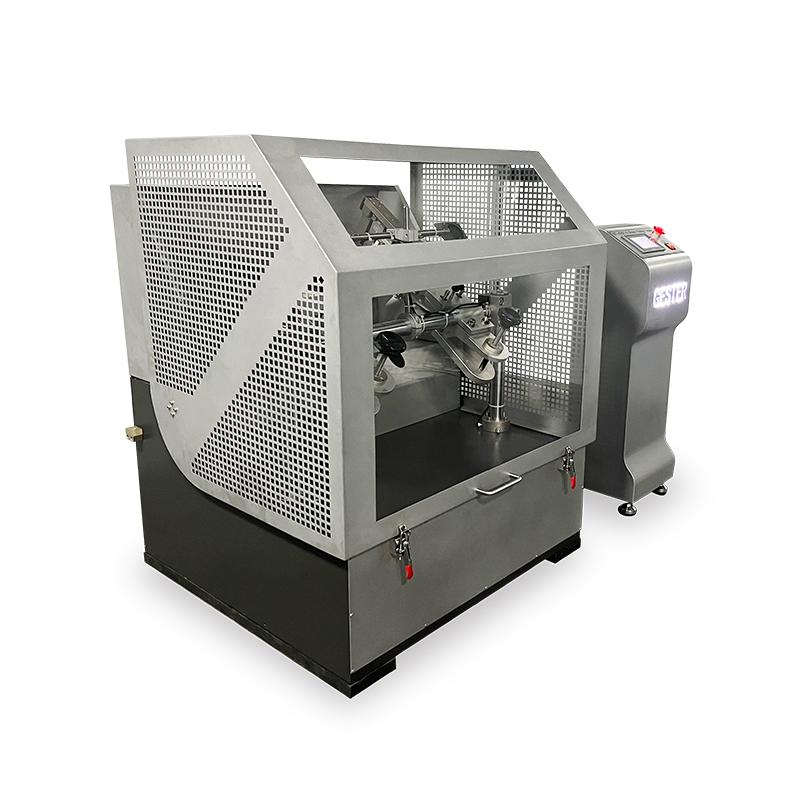

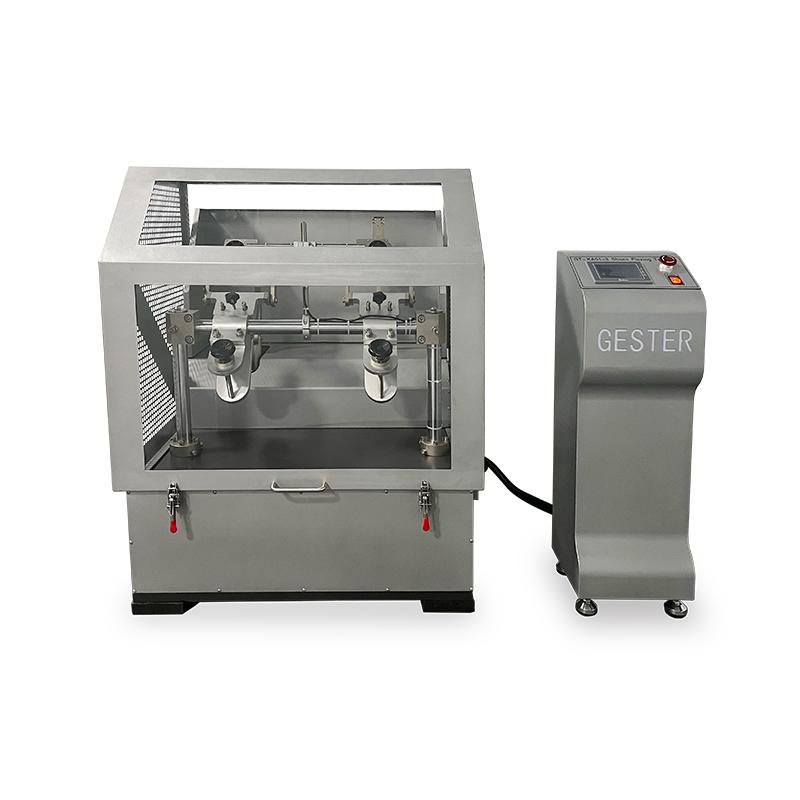

Shoes Flexing Tester GT-KA01-3

Product Introduction

Application:

Shoes Flexing Tester is used for determine the flexing resistance for whole shoe or shoe sloe(sheet) at room temperature. Flex the specimen under a specified angle and frequency to assess its cracking degree and observe the change of it's upper.

Standards:

GB/T 3903.1,

ISO 24266 Method B

HG/T 2871-2022 Method A

Feature

1. The number of flex cycles can be set and displayed on the control panel;
2. The counter and the machine will stop automatically when the set value has been reached;

3. The protective shield is equipped for safety operation and noise reduction;

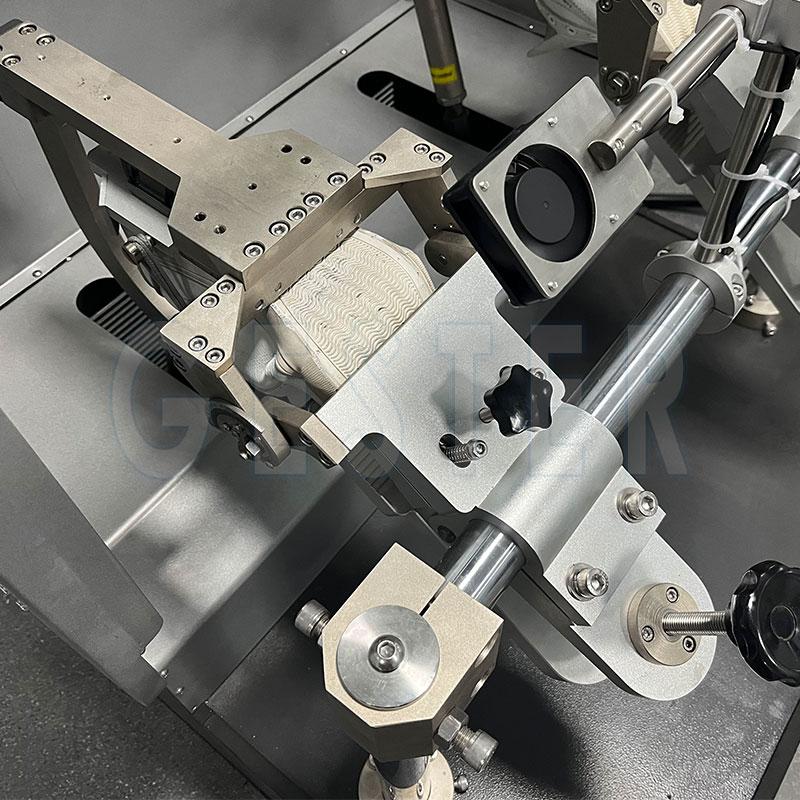

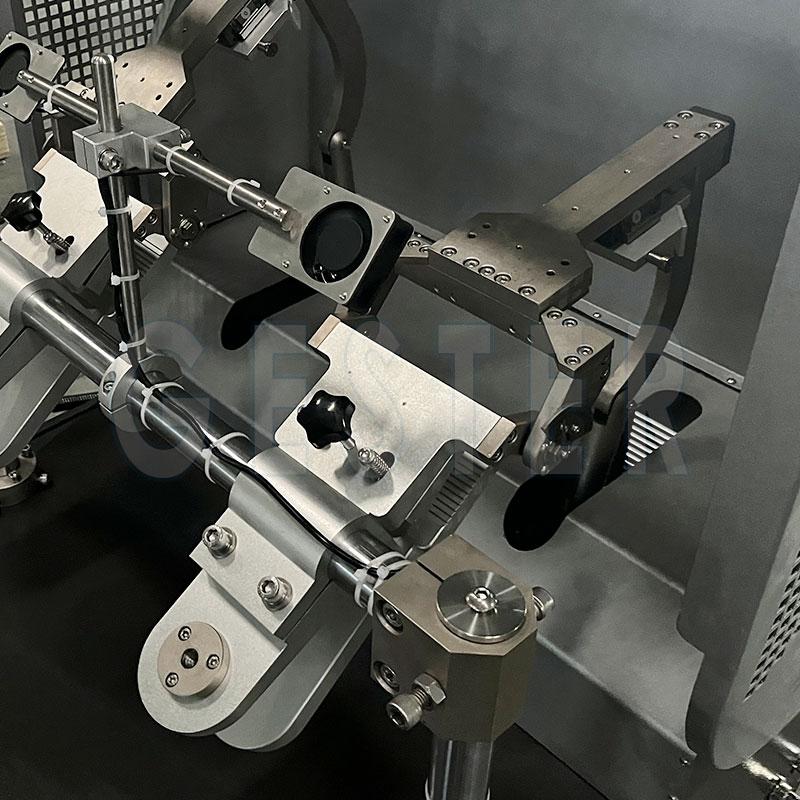

4. A fan is installed on each set of clamps to prevent shoes from changing characteristics caused by high temperature during flexing.

Key Specifications

Model	GT-KA01-3A	GT-KA01-3B
Test position	2	4
Bending angle	0~55 degree
Counter	Touch screen control
Bending speed	230 ± 10 rpm (adjustable)
Power supply	1∮AC 220V 50/60HZ 8A
Dimensions (L x W x H)	95×88×140 cm	209×88×140cm
Weight	420 kg	750kg
Standards	GB/T 3903.1, ISO 24266 Method B, HG/T 2871-2022 Method A

Standards accessories	2 Pairs	Shoe last (Size 35, Size 44 or by customer requires)
	1pc	Power line
	1pc	Chisel cutter（5mm）
Option accessories	Optional	Calipers (accuracy 0.02mm)
Option accessories	Optional	Shoe last (Size 36, 37, 38, 39, 40, 41, 42, 43)

Application Industry

All the shoes blow can be tested on the Shoes Flexing Tester

Shoes Flexing Tester
