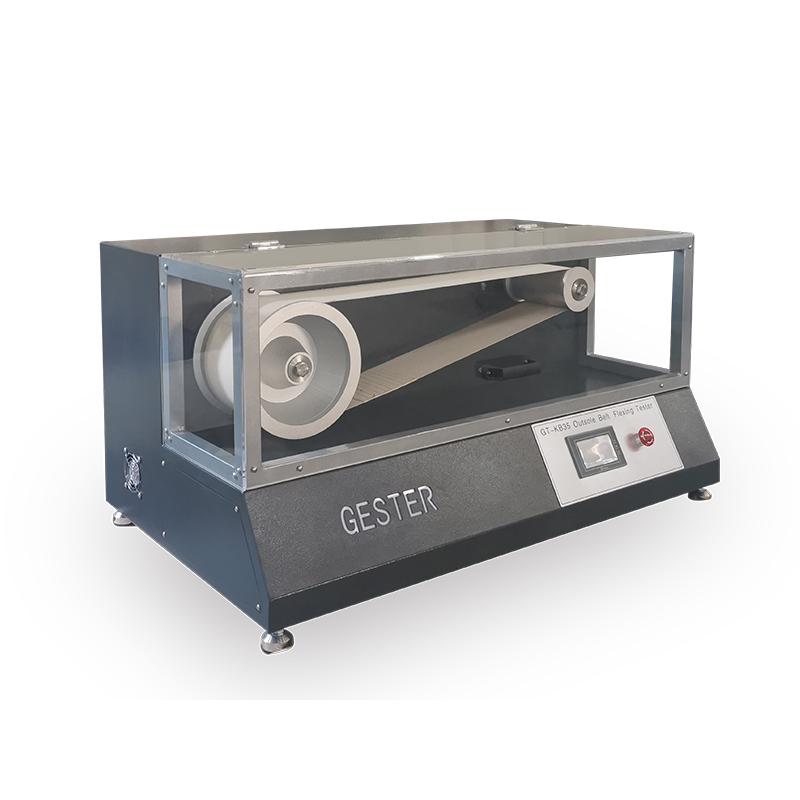

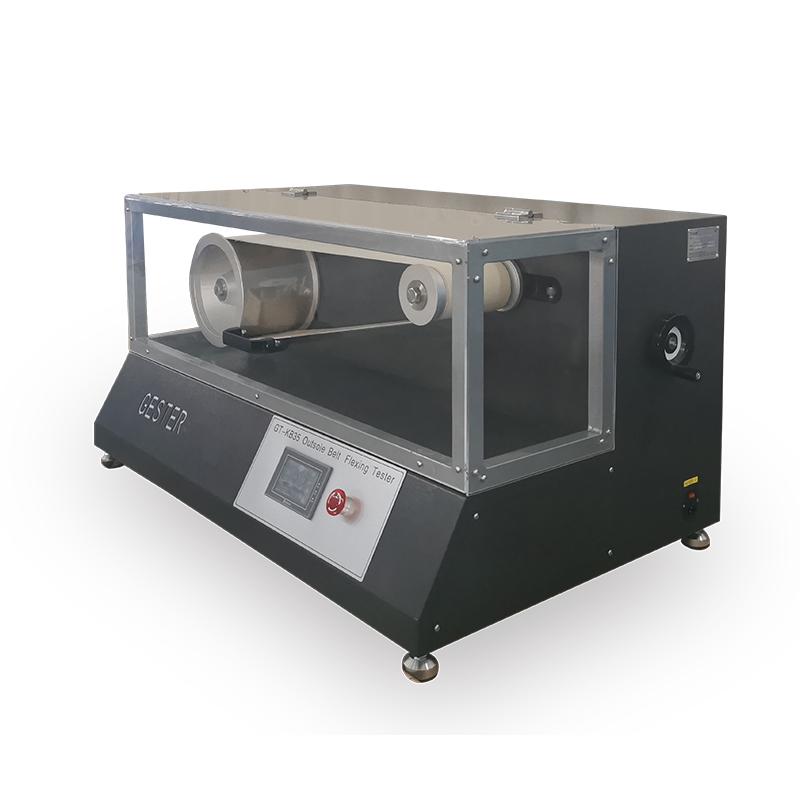

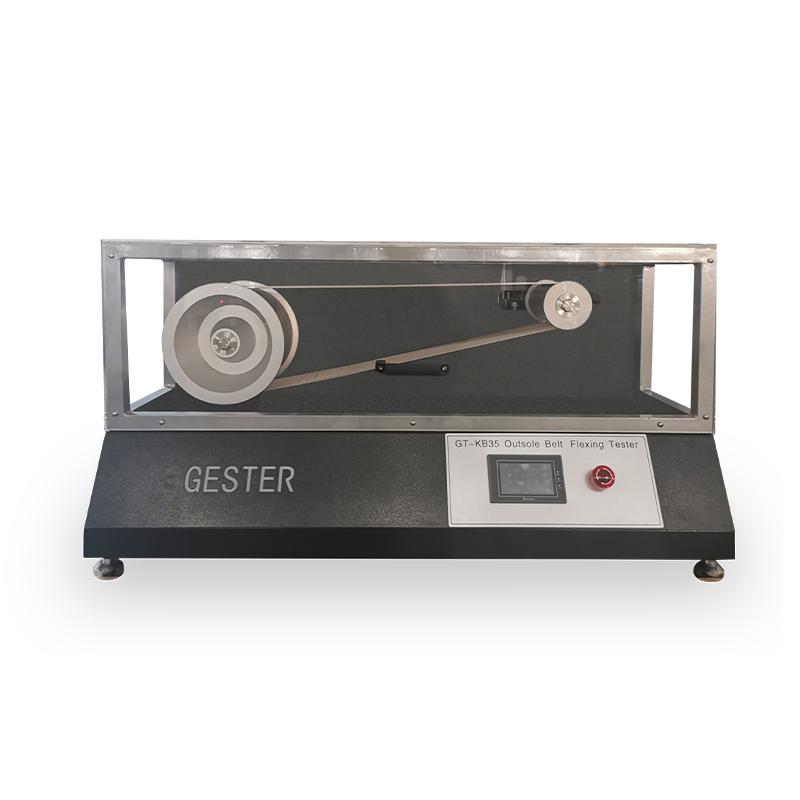

Footwear Outsole Belt Flexing Tester GT-KB35
Application:
This outsole belt flexing tester is to determine the resistance of a component or material to crack initiation and growth due to repeated flexing.
Standards:
SATRA TM 133, ISO 16177

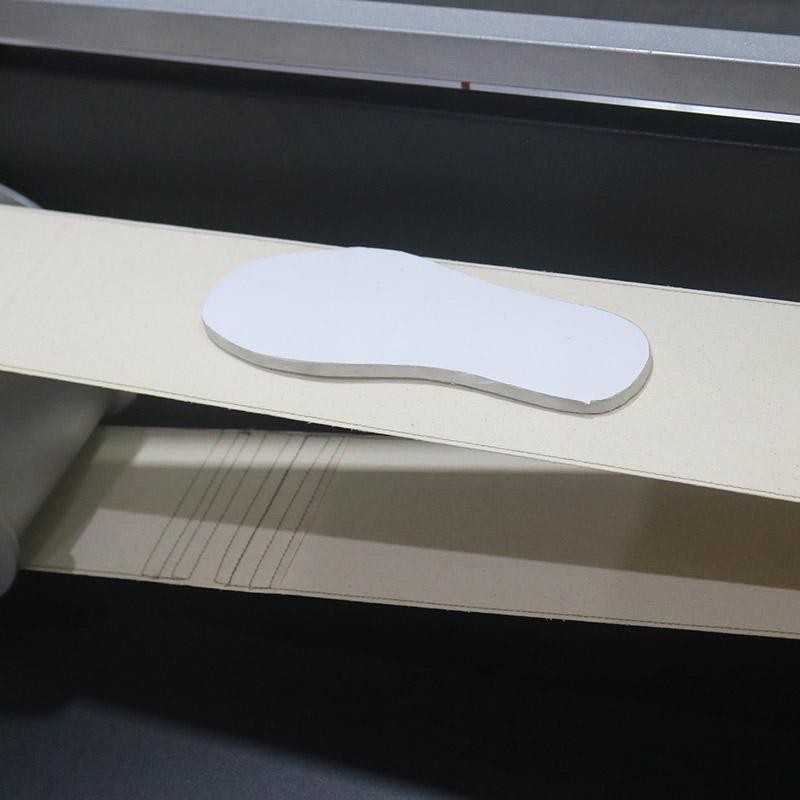

Sole Belt Flexing Tester tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.
|
Model |
GT-KB35 |
|
Canvas belt size |
Length :1930±50mm Width :140±5mm |
|
Driven roller |
Diameter: 225 ± 5 mm |
|
Width: 170 ± 20 mm |
|
|
Free roller 1 for typical sole units test |
Centre Diameter : 90.0 ± 0.5 mm |
|
Ends Diameter : 87 ± 1 mm |
|
|
Width: 170 ± 20 mm |
|
|
Free roller 2 for very flexible sole units test |
Centre Diameter : 60.0 ± 0.5 mm |
|
Ends Diameter : 57 ± 1 mm |
|
|
Width: 170 ± 20 mm |
|
|
Free roller 3 for very rigid sole units |
Centre Diameter : 120.0 ± 0.5 mm |
|
Ends Diameter : 117 ± 1 mm |
|
|
Width: 170 ± 20 mm |
|
|
Belt rotate speed |
90 ± 8 CPM |
|
Sampling |
MAX.6 pcs |
|

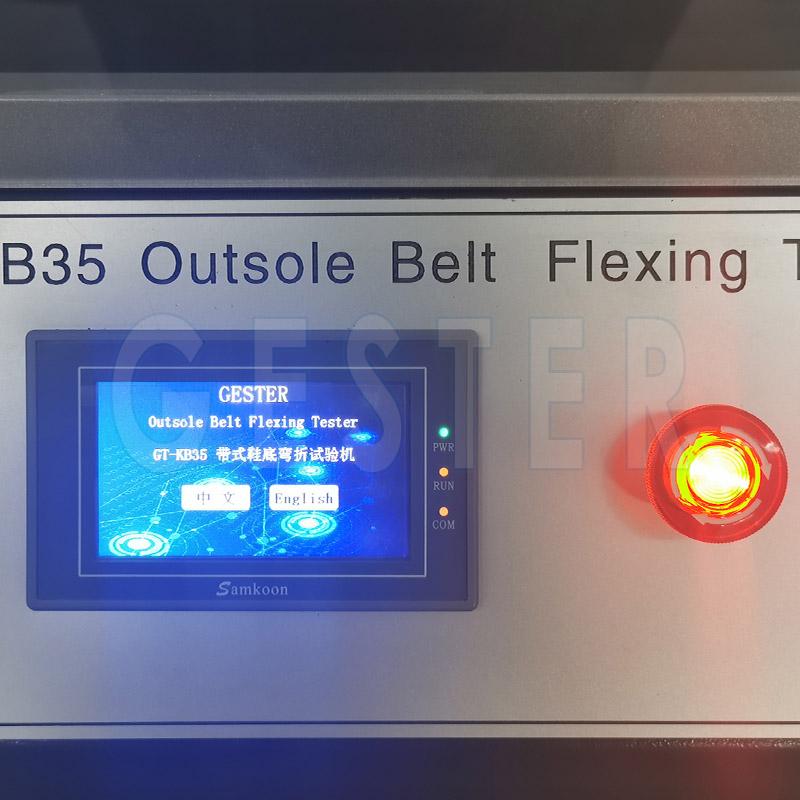

Counter |
LCD 0~999,999 |
|
Power supply |
1∮AC 220V 50/60HZ 3A |
|
Dimensions(W×D×H) |
131 cm x 82cm x 69cm |
|
Weight(Approx) |
170kg |
|
Standards |
SATRA TM 133, ISO 16177
|
Accessories
Standard accessories
1pc
Spanner
1pc
Canvas belt
3pcs
Free roller
1pc
Drive roller
1pc
Power line
Option accessories
Optional
Canvas belt (consumptive material)
All the material blow can be tested on the Outsole Belt Flexing Tester
