Touch Screen Control Diapers Permeability Tester GT-CN15

Diapers Permeability Tester Used to test the permeability performance of diapers, such as absorption speed, infiltration amount, leakage.
  • Brand:

    GESTER
  • Item NO.:

    GT-CN15
  • Order(MOQ):

    1
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

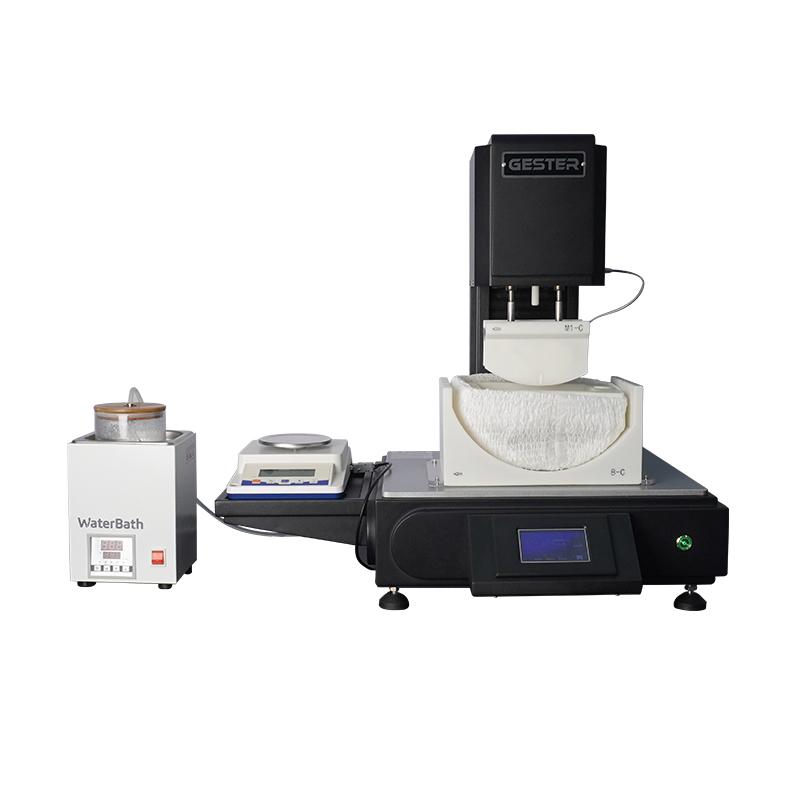

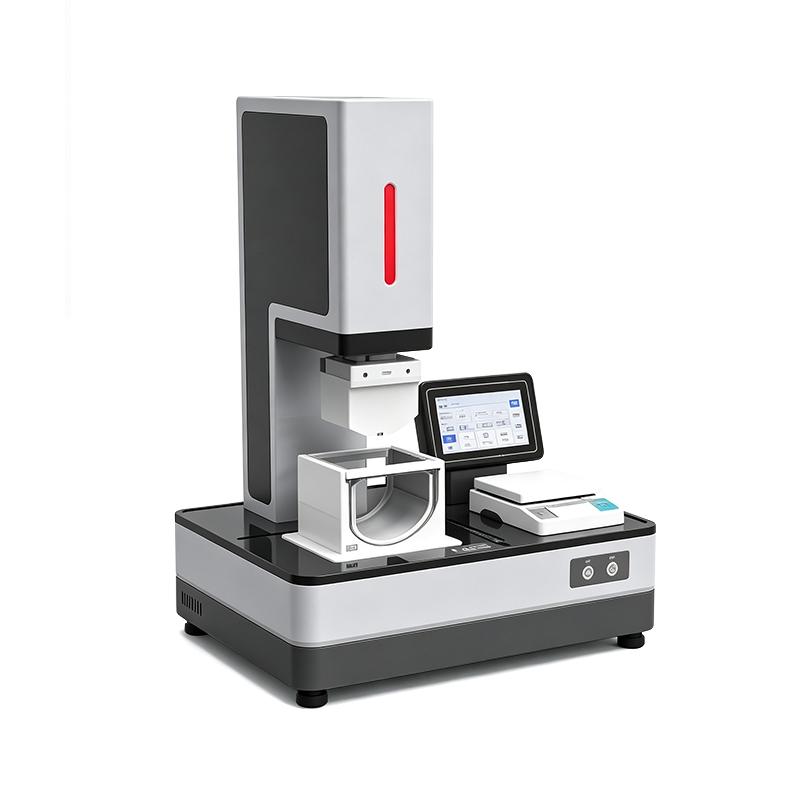

Diapers Permeability Tester GT-CN15


Product Introduction

Application:

Diapers Permeability Tester Used to test the permeability performance of diapers, such as absorption speed, rewet, leakage.


Standards:
GB/T 28004.1-2021 Diapers Part 1:Infant Diapers
GB/T 28004.2-2021 Diapers Part 2:Adult Diapers


  1. Diapers Permeability Tester can automatically complete the functions of liquid addition, constant pressure pressurization, timing and other functions in the test process, and measure the absorption performance indicators such as pressure absorption rate, re-osmosis and leakage of the sample.

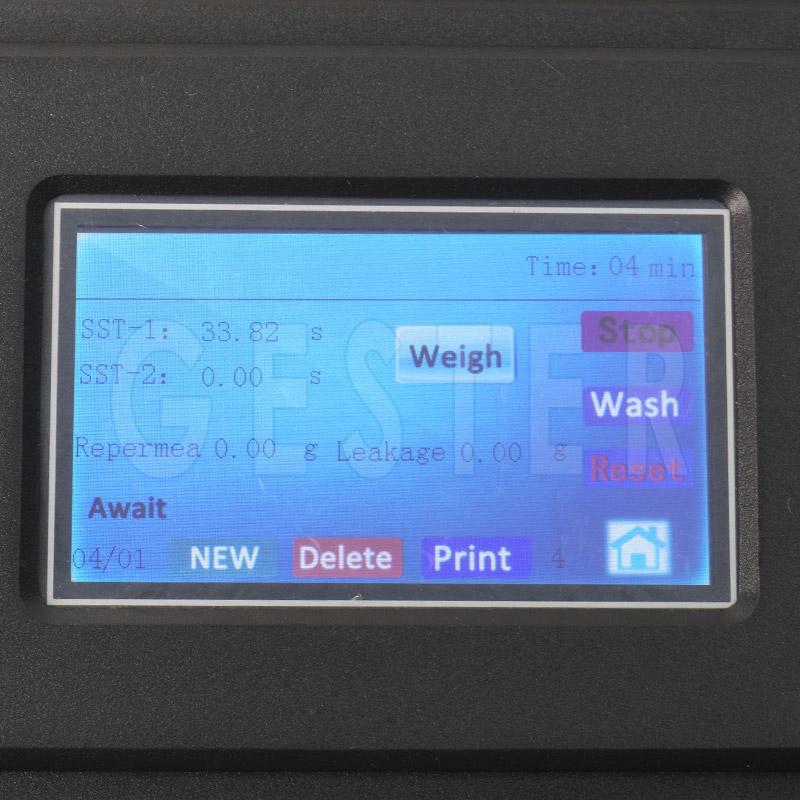

  2. Touch Screen Control, Chinese & English Menu, Man-Machine Conversation Mode.
  3. Built-in thermal printer, convenient to quickly print test results.
  4. Professional computer analysis software can realize two-way operation with computer.
  5. High-precision peristaltic pump to ensure the accuracy of penetrating liquid volume.
  6. The built-in water tank is made of 316L stainless steel, durable and rust free; Automatic heating, constant temperature.
  7. Automatic liquid adding and testing, no need to add liquid manually.
  8. The electrode is made of special materials, with good induction and automatic positioning of the electrode.
  9. Using stepping motor and high-precision ball screw drive, the stroke control is accurate.
  10. Automatic data processing, can get test average, standard deviation, coefficient of variation.
  11. Equipped with high precision balance, can directly calculate the leakage and rewet after weighing.
  12. Stainless steel weights are used to provide constant pressure, which effectively avoids pressure changes after the specimen absorbs water.
  13. Diapers Permeability Testing machine equipped with buzzer coming with reminder function.


Key Specifications



Model

GT-CN15A

GT-CN15B

Application

 Infant Diapers

Adult Diapers

Accuracy of counting

0.01s

Liquid adding device

Liquid adding amount accuracy: ±2mL,

Liquid adding speed: 200~800mL/min

Capacity of water-bath (2L)

Infant diaper pants: (40±2)ml/(60±2)ml/(80±2)ml

Adult diaper pants:

(100±2)ml/(150±2)ml

Infant diapers: (30±2)ml/(40±2)ml/(50±2)ml

Adult diapers:

(70±2)ml/(100±2)ml

Adding liquid flow rate

(480±10)ml/min

(720±15)ml/min

Standard liquid module

W

(80±1)

mm

(M1)

(85±1)

mm

(M2)

(95±1)

mm

(M3)

W

(70±1)

mm

(M1)

(95±1)

mm

(M2)

/

L

(100±1)

mm

(M1)

(108±1)

mm

(M2)

(125±1)

mm

(M3)

L

(170±)

mm

(M1)

(170±1)

mm

(M2)

/

Standard pressure module

W

(80±1)

mm

(Y1)

(85±1)

mm

(Y2)

(95±1)

mm

(Y3)

W

(70±)

mm

(Y1)

(95±1)

mm

(Y2)

/

L

(100±1)

mm

(Y1)

(108±1)

mm

(Y2)

(125±1)

mm

(Y3)

L

(170±)

mm

(Y1)

(170±)

mm

(Y2)

/

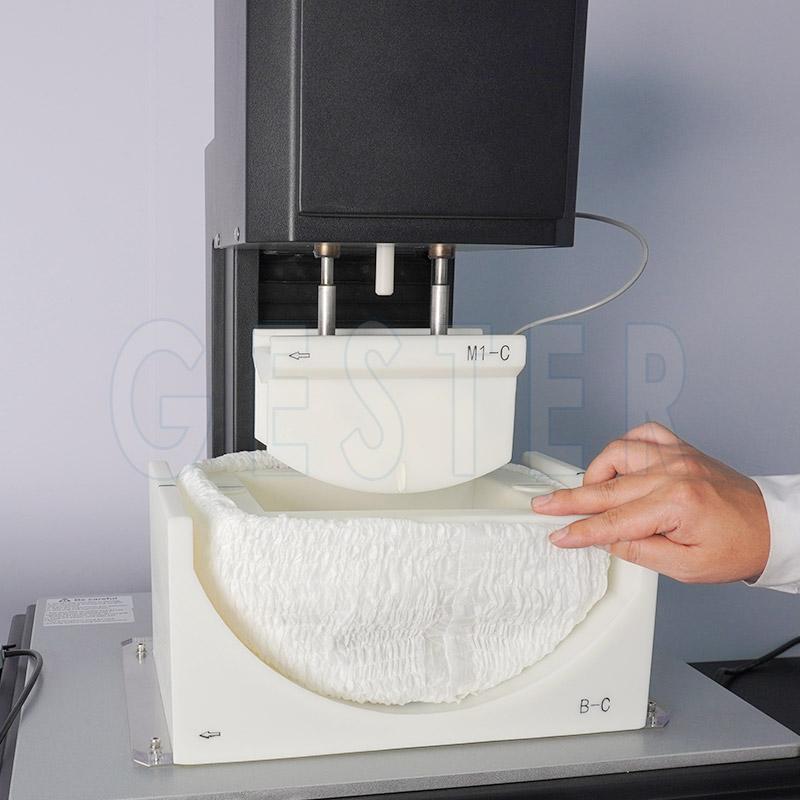

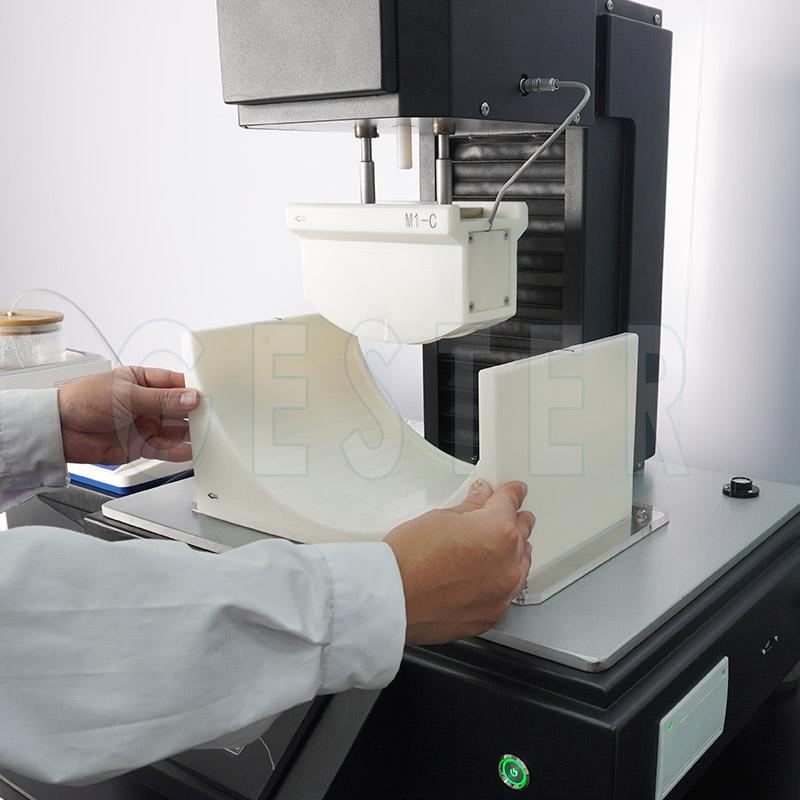

Sample base

U Type Sample Base

Arc Type Sample Base

W

(122±1)

mm

(B1)

(135±1)

mm
(B2)

(152±1)

mm
(B3)

319mm×200mm

L

(125±1)mm

(B1)

(136±1)mm
(B2)

(154±1)mm
(B3)

Balance accuracy

Range: 300g, 0.01g

Dimension(W*L*H)

820x575x750mm

Weight

62KG

Power

AC 220V 50Hz 100W
