Diaper Permeability Testing Machine GT-CN16

Diaper Permeability Testing Machine factory direct sale.
  • Brand:

    GESTER
  • Item NO.:

    GT-CN16
  • Order(MOQ):

    1
  • Lead Time:

    10-30 days
  • Product Detail

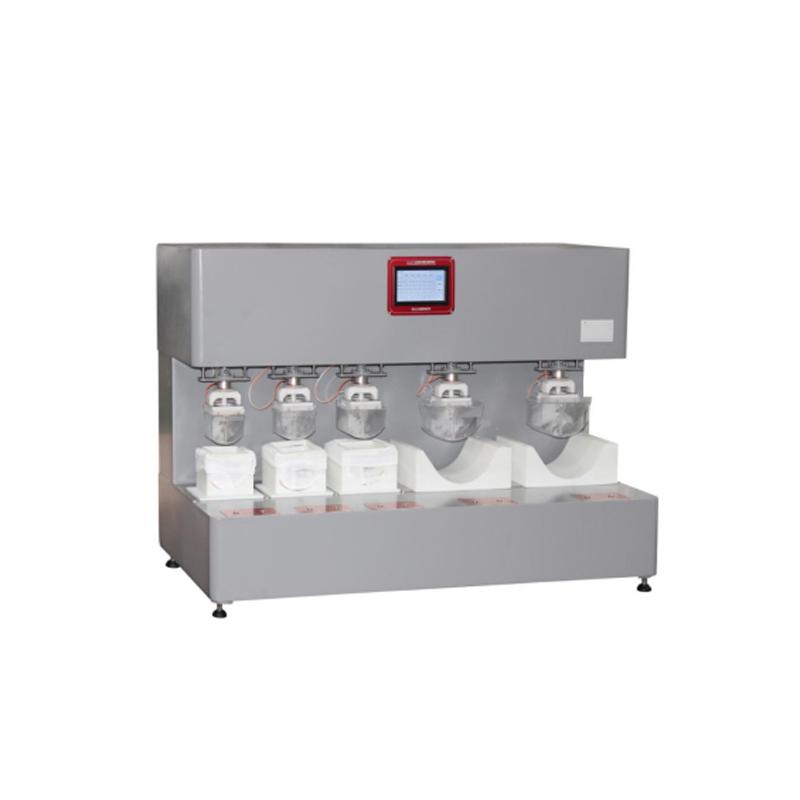

Diaper Permeability Testing Machine GT-CN16


Product Introduction

Application:

Diapers Permeability Tester Used to test the permeability performance of diapers, such as absorption speed, rewet, leakage.


Diapers Permeability Tester Feature
  • Color touch screen control, Chinese and English menu, man-machine dialogue mode, convenient to operation.

  • 5 positions, can be set and test liquid filling volume and flow rate of each position separately.

  • 5 independent electrodes and pumps, can test different types of samples including adults and baby.

  • Diaper Permeability Testing Equipment: Automatically fill liquid, test, and weighing.

  • High-precision peristaltic pump, to ensure the accuracy of penetrating liquid volume.

  • Platinum electrode, good induction and positioning automatically.

  • Adopting stepping motor and high-precision ball screw drive, accurate stroke.

  • Data processing automatically, including average, standard deviation, and coefficient of variation.

  • High-precision balance, can calculate the leakage and rewet directly after weighing.

  • Heating pipe and a liquid level in water tank,for temperature control accurately and low liquid level remind.

  • Thermal printer,for printing of test results quickly.


Key Specifications



Mode

GT-CN16

Timer Accuracy

0.01S

Liquid Device

Error: ±2mL;  Speed: 200800mL/min

Balance

300g/0.01g

Power Supply

AC220V  50/60Hz  1000W

Dimension

1714×761×827mm

Weight

290kg


Standards

GB/T 28004.1-2021 Disposable Diapers for Baby

GB/T 28004.2-2021 Disposable Diapers for Adult


Standard test module

BABY

W

(80±1)mmM1

(85±1)mmM2

(95±1)mmM3

L

(100±1)mmM1

(108±1)mmM2

(125±1)mmM3

ADULT

W

(70±1)mmM1

(95±1)mmM2

/

L

(170±1)mmM1

(170±1)mmM2

/

Notes: Standard test module can be divided into 2parts, liquid module and pressure module. Size is consistent.

Sample Plate

BABY

U Type

W

(80±1)mmM1

(85±1)mmM2

(95±1)mmM3

L

(100±1)mmM1

(108±1)mmM2

(125±1)mmM3

ADULT

ARC Type

319mm×200mm


Accessories

Standards Accessories

1pc

Power line

1set

S Fixture

1set

M Fixture

1set

L Fixture

1set

Adult Medium Fixture

1set

Adult Extreme Fixture
