Nonwovens Run-off Tester GT-CN03

This Nonwovens Run-off Tester GT-CN03 is used to test the overflow quantity of thin nonwoven, such as sanitary towel and diaper coating material.

  • Brand:

    GESTER
  • Item NO.:

    GT-CN03
  • Order(MOQ):

    1
  • Payment:

    TT
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    About 25days
  • Product Detail

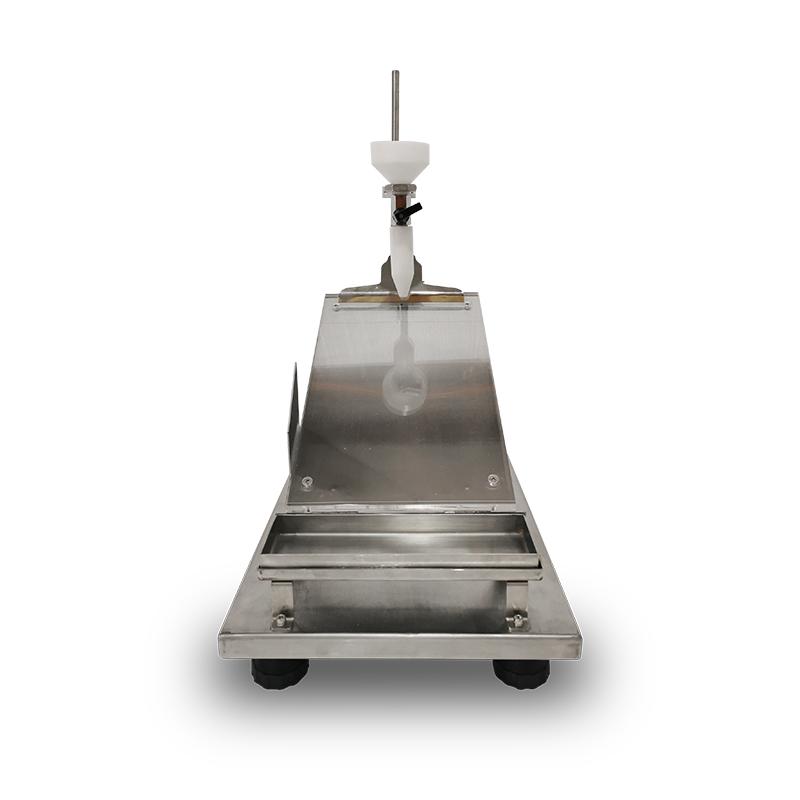

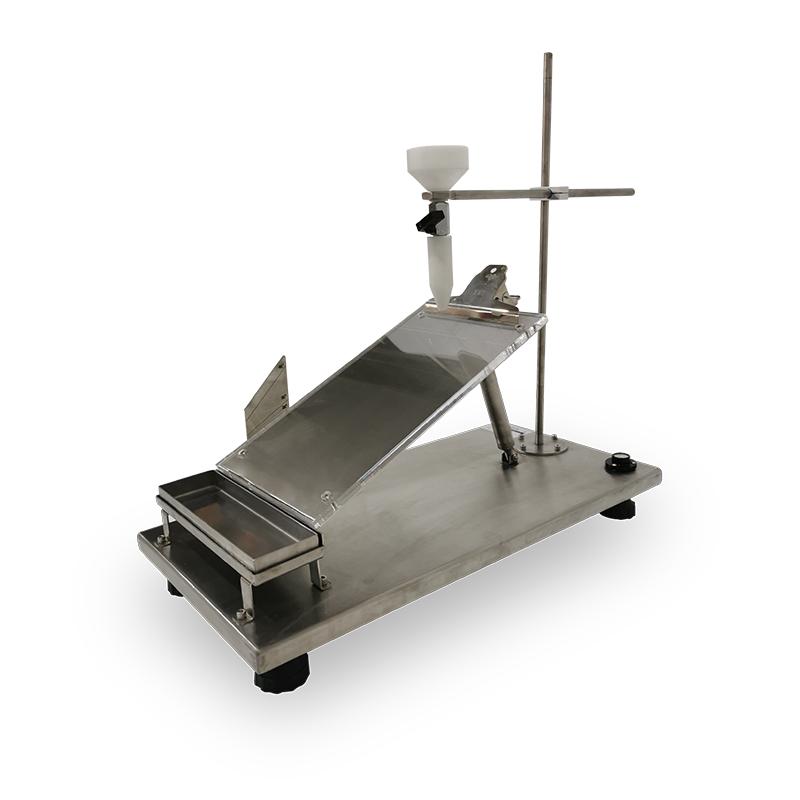

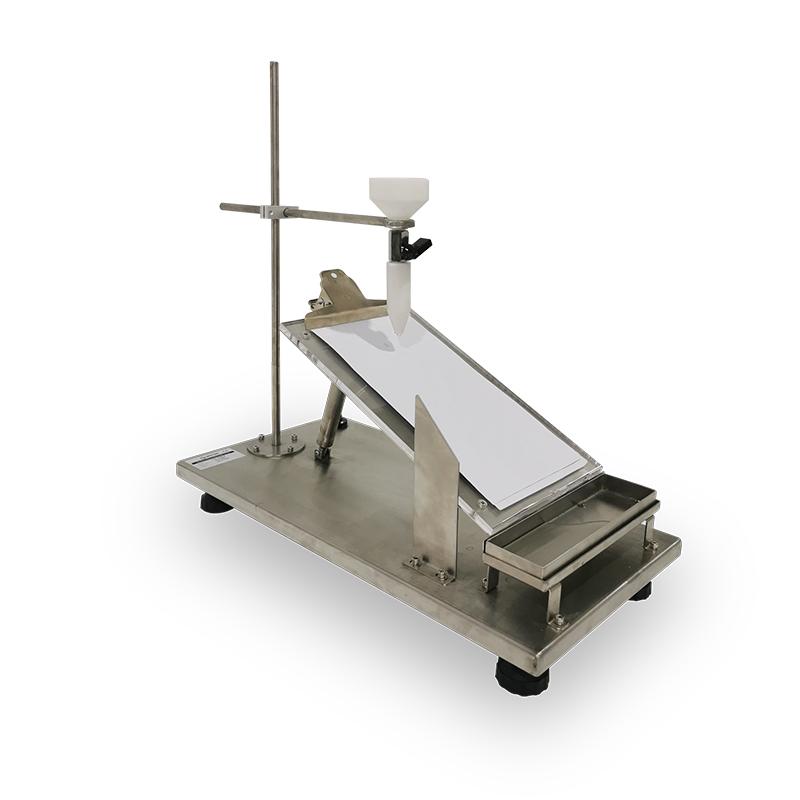

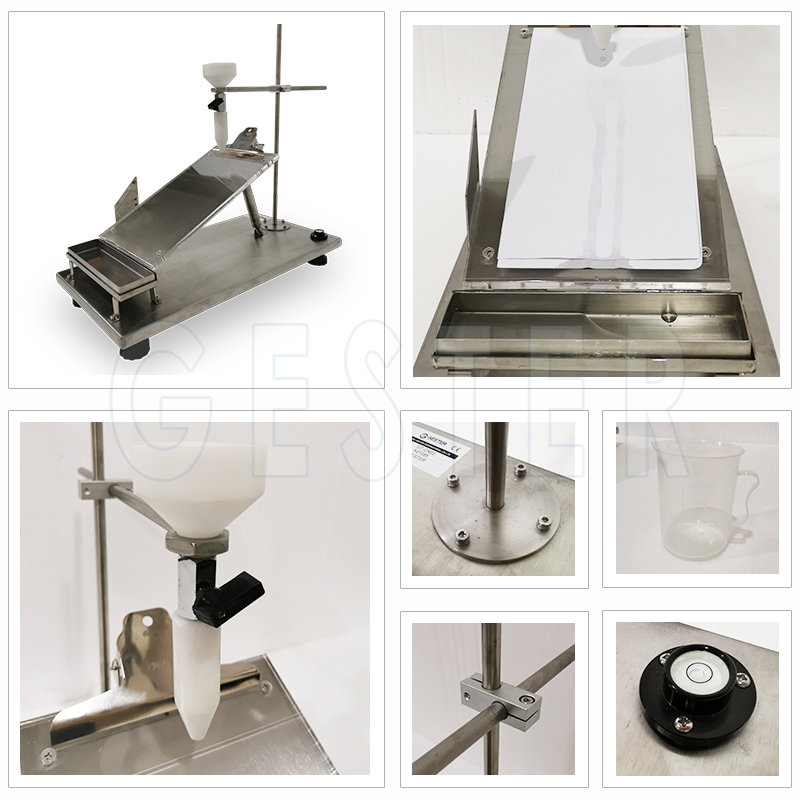

Nonwovens Run-off Tester GT-CN03



Product Introduction

Application:

This Nonwovens Run-off Tester GT-CN03 is used to test the overflow quantity of thin nonwoven, such as sanitary towel and diaper coating material.


Principle

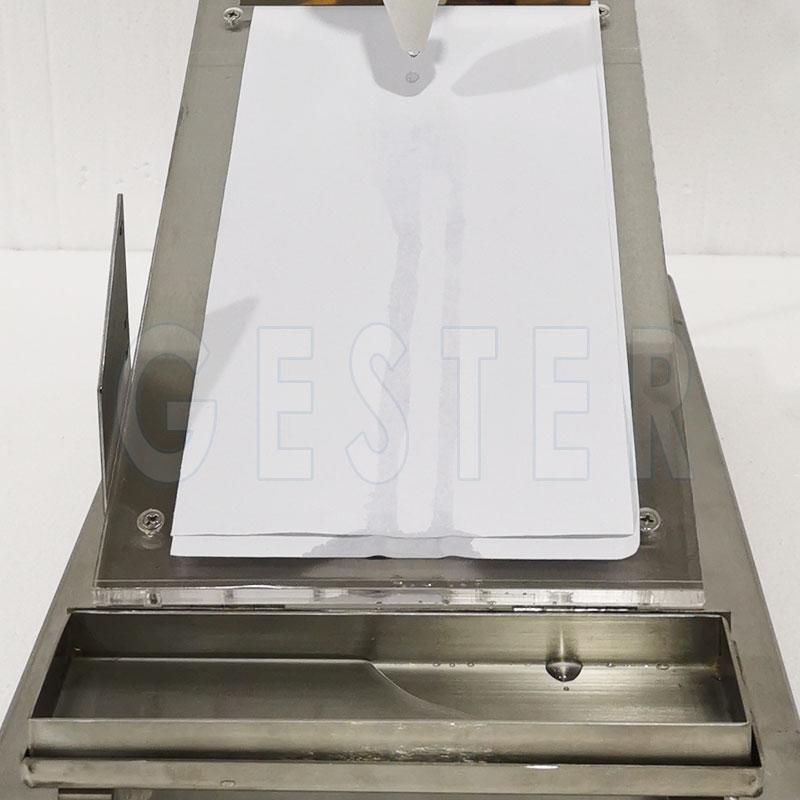

A specified quantity of simulated urine is discharged at a prescribed rate under specified conditions on to a test piece of nonwoven that is superimpossed on a standard absorbent media and placed on an inclined table. Any excess liquid that runs down the test piece is collected by a standard receiver pad placed below the lower end of the nonwoven test piece.

Key Specifications



Model

GT-CN03

Size of the Test Stand

303×180mm

Angel of the Test Stand

Adjustable

Distance between 2 Lines of Reference

250±0.2mm

Position of the Up Line of Reference

3±0.2mm from the lower end of the table to define the position of the lower end absorbent medium

Position of the Up Line of Reference

Approximately 25mm from the upper end of the test piece to define the position of the discharge tube axis.

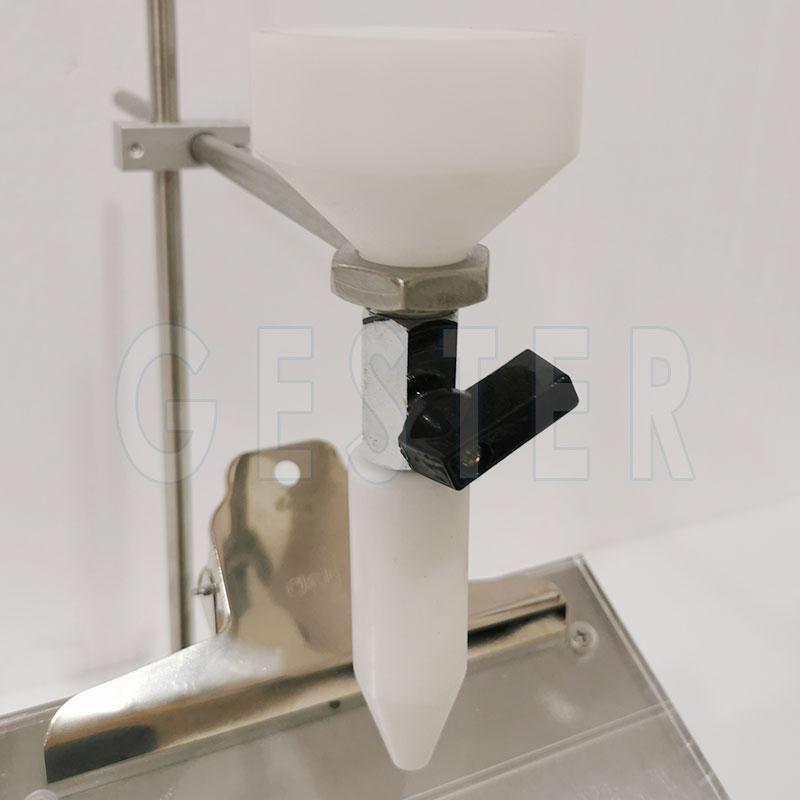

Inner Diameter of the Bleeder Tube

5mm

Dimension

545×280×400mm

Weight

10kg

Standards

Edana 152.0-99, ISO 9073-11, GB/T 24218.11,

GB/T 28004, WSP 80.9


Nonwovens Run-off Tester GT-CN03
