Dual Column Universal Testing Machine

GESTER Universal Testing Machine (UTM) Manufacturer Suppliers

Brand:
GESTER
Item NO.:
GT-K01
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

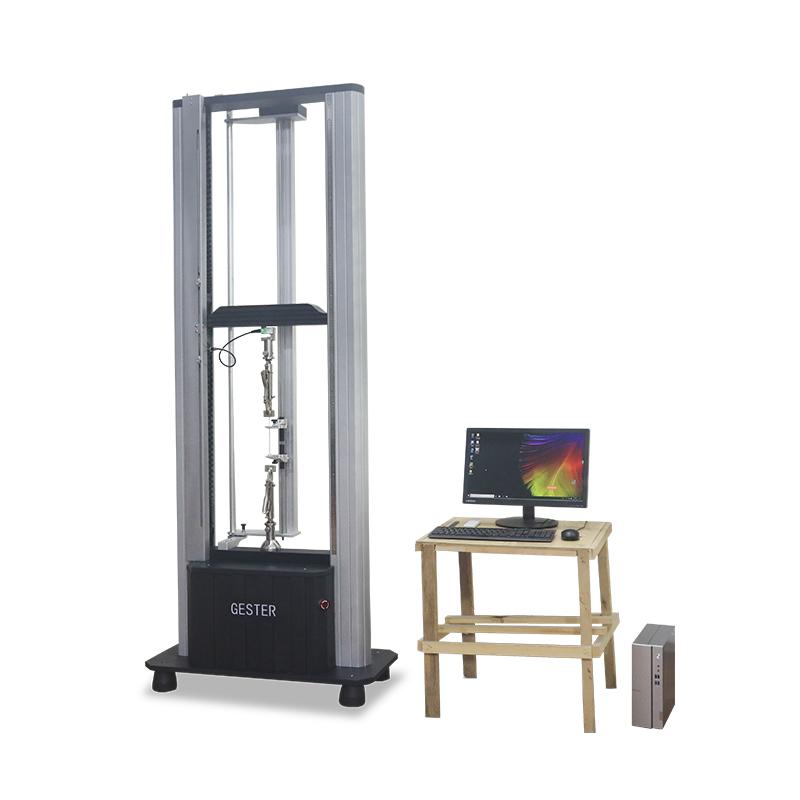

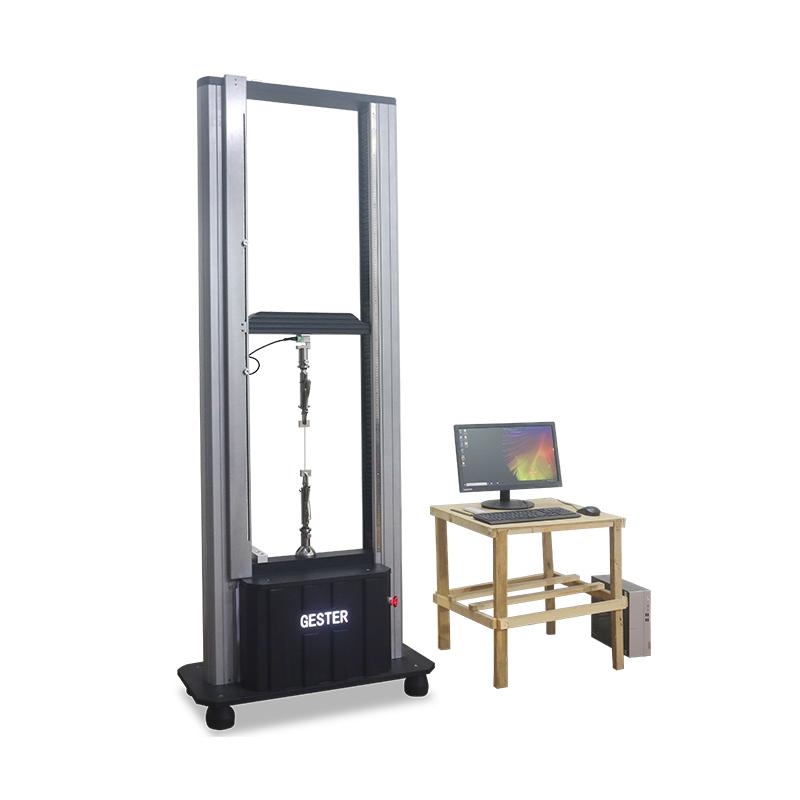

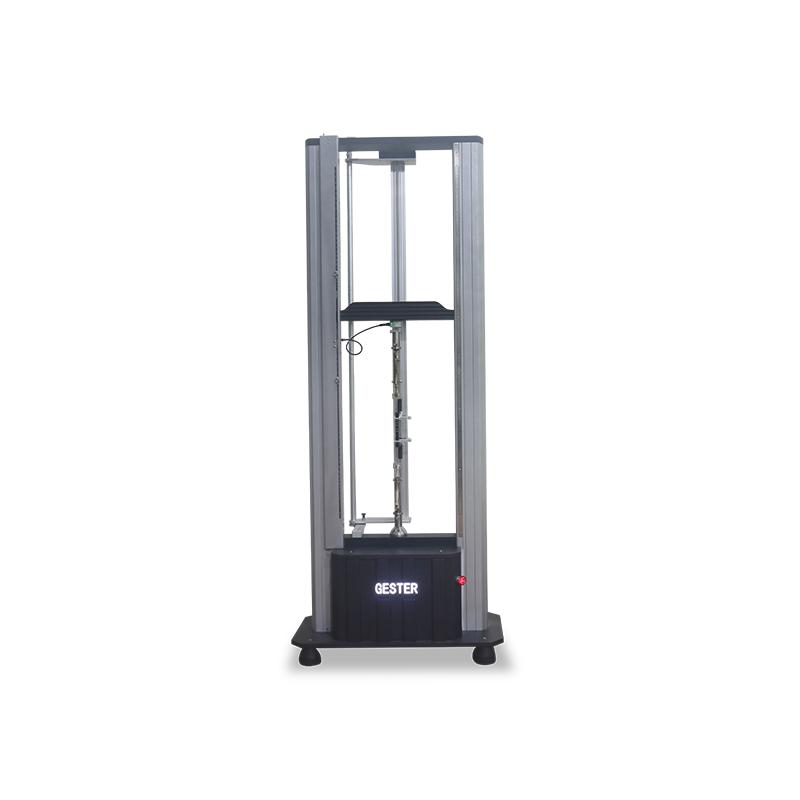

Dual Column Universal Testing Machine GT-K01

Product Introduction

Application:

This universal testing machine enables comprehensive testing of various materials including shoes, rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle components, and more. With its ability to conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing, and other tests, this tester serves as an essential tool for quality control, receiving inspection, physical testing, mechanics research, and material development.

Standards:

SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411, TM 410,

ASTMD 751/2209 /412/624/3512 FIA 1206,

BS 5131- 3.7, 5.11, 5.13 , BS 5131-2.6

ISO 22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO 20867, ISO 19957, ISO 20874, ISO 20344-5.2.4, ISO 20345-5.3.1.2, ISO 17698, ISO 20875, ISO 22777, ISO 22776, ISO 22654, ISO 20863, ISO 20876, ISO 17695, ISO 17697, ISO34-1, ISO36, ISO37, ISO 17708, ISO 17696, ISO 17706, ISO 22650

AS/NZS 2210.2-5.2.4

DIN 53331,

GB/T 3903.8, GB/T 3903.9, GB/T3903.14 ,GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23 , GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29, GB/T3903.32,GB/T 3903.39,GB/T 3903.40, GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T11413, GB/T21396

QB/T 2711, QB/T2675, QB/T2883, QB/T4118, QB/T4198

HG/T 2726, HG/T 2877, HG/T4805

Universal Tensile Tester Key Specifications

Model	GT-K01
Max. Capacity	5KN,10KN, 20KN
Display	Computer display mode
Force Resolution	1/100,000
Force Accuracy	≤+/-0.5%
Stroke Resolution	0.001 mm
Extensometer Resolution	0.001 mm
Test Speed	0.001-1000mm/min
Walking space	1400mm (it can be custom-tailor according to their requirements)
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power Supply	AC 220V 50/60HZ 10A
Dimensions	110cm x 70cm x 240cm(WxDxH)
Weight	370kg

Standards accessories	1set	Manual grips
	1pc	English operation software
	1pc	Cable connect with PC
	1set	Extensometer
Option accessories	Optional	Desk Top Computer
Option accessories	Optional	Other grips
