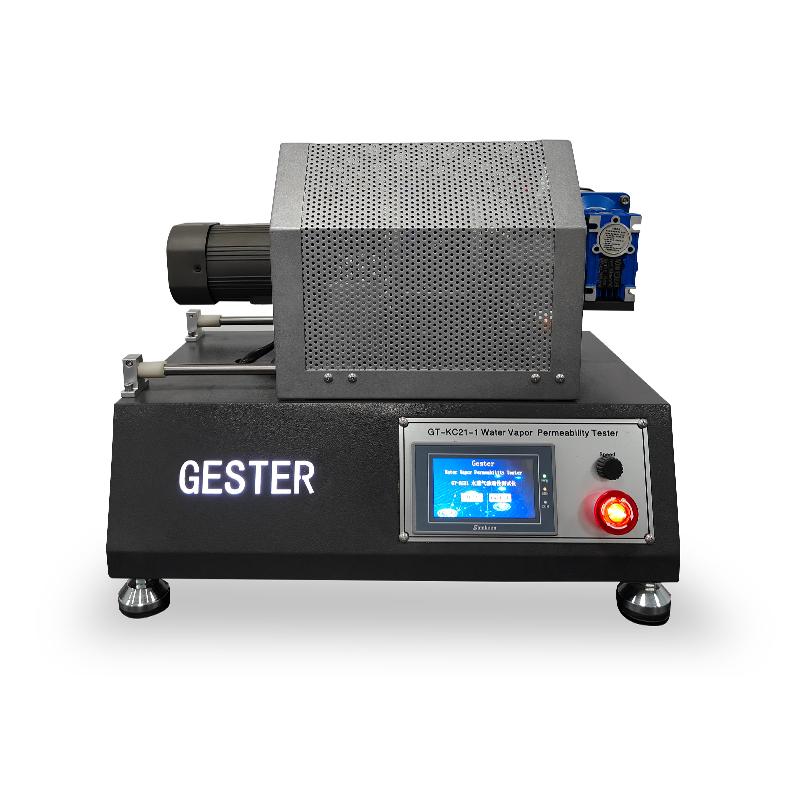

Water Vapor Permeability Tester GT-KC21-1

Water Vapor Permeability Tester is used to determine the water vapor permeability for vamp and upper shoe materials.

  • Brand:

    GESTER
  • Item NO.:

    GT-KC21-1
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Product Detail

Water Vapor Permeability Tester GT-KC21-1



Product Introduction

Application:

Water Vapor Permeability Tester is used to determine the water vapor permeability for vamp and upper shoe materials. Using in the conditioning room under the standard stipulated temperature (23 ± 2)℃ and humidity (50 ± 5)% RH.


Standards:

EN ISO 20344 Section 6.6.2, AS/NZS 2210.2 Section 6.6.2
GB/T 20991 Section 6.6.2 , EN 344-1 Section 5.13, BS 3144,
DIN 5333. SATRA TM172


Key Specifications



Model

GT-KC21-1

Control mode

Touch screen control

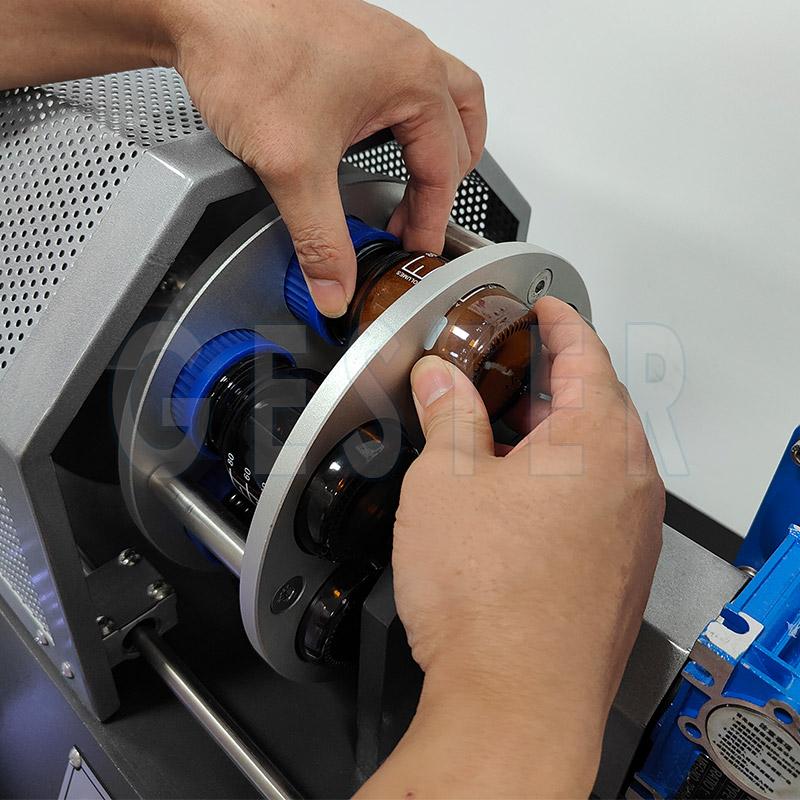

Testing bottle number

6pcs

Bottle mouth diameter

30mm

Bottles holder speed

75 ±5cpm

Fan blades

90 x 75 mm, 3 flat blades in planes inclined at 120° to each other

Fan rotate speed

(1400 ± 100) r/min

Specimen size

34mm

Power supply

1∮AC220V 50/60HZ

Dimensions

56X37X38cm

Weight

50kg



Shoes Material Water Vapor Permeability Tester Accessories (A):

Standard Accessories

6pcs

Testing Bottles

1bottle

Silica Gel

1pc

Power Line



Water Vapor Permeability Tester Accessories (B):

Option Accessories

Optional

GT-D10 Drying Oven

Optional

GT-KD20 Hydraulic Rocker Pressure Tester

(cutter: 70 ± 5 x 45 ± 5 mm,and 34mm)

Optional

GT-KC10A Bally Resistance Flexing Tester
