Brand:
GESTERItem NO.:
GT-KC06Order(MOQ):
1Lead Time：
10-30 daysProduct Detail

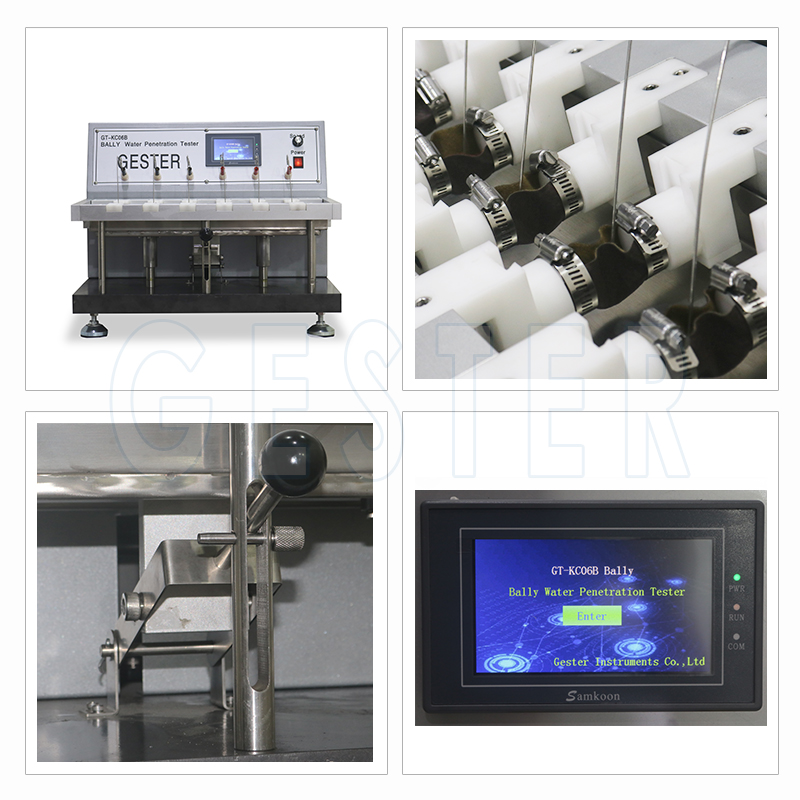

Leather BALLY Water Penetration Testing Machine
Bally Waterproofness Tester designed for assessing the water resistance of footwear upper materials, including leather, artificial leather, and fabric. This state-of-the-art tester is essential for determining the material's ability to resist water penetration during flexing, ensuring its suitability for various applications.
Standards:
DIN53338, ISO 5403-1, ISO 17702, EN ISO 20344-2021 section 6.13, EN 344-1 section 5.12,
EN ISO20347 section 6.3.1, AS/NZS 2210.2 section 6.13, QB/T 3903.17, GB/T20991 section 6.13
|
Model |
GT-KC06A |
GT-KC06B |
|
Position |
4 |
6 |
|
Clamp cylinder |
￠30.0 ± 0.5 mm |
|
|
Clamps Max. apart |
40 ± 0.5 mm |
|
|
Move clamp stroke |
2 ,3 ,4 ,6mm |
|
|
Move clamp speed |
50±1 rpm |
|
|
Sample size |
75±2 mm x 60±1 mm |
|
|
Control method |
Touch-screen control, 0-999999999 |
|
|
Shutdown method |
Electrode induction |
|
|
Power supply |
1∮AC 220V 50/60HZ |
|
|
Dimensions ( L x W x H ) |
45 x 55 x 50cm |
60 x 57 x 50cm |
|
Weight |
about 48kg |
about 60kg |
|
Standards accessories |
1 Set |
Hose clamp |
|
1pc |
Power line |
|
|
Option accessories |
Optional |
GT-KD20 Pneumatic Sample Cutting Machine (Cutter: 75±2 mm x 60±1 mm) |
|
Optional |
Electronic balance (200g / 0.001g) |
