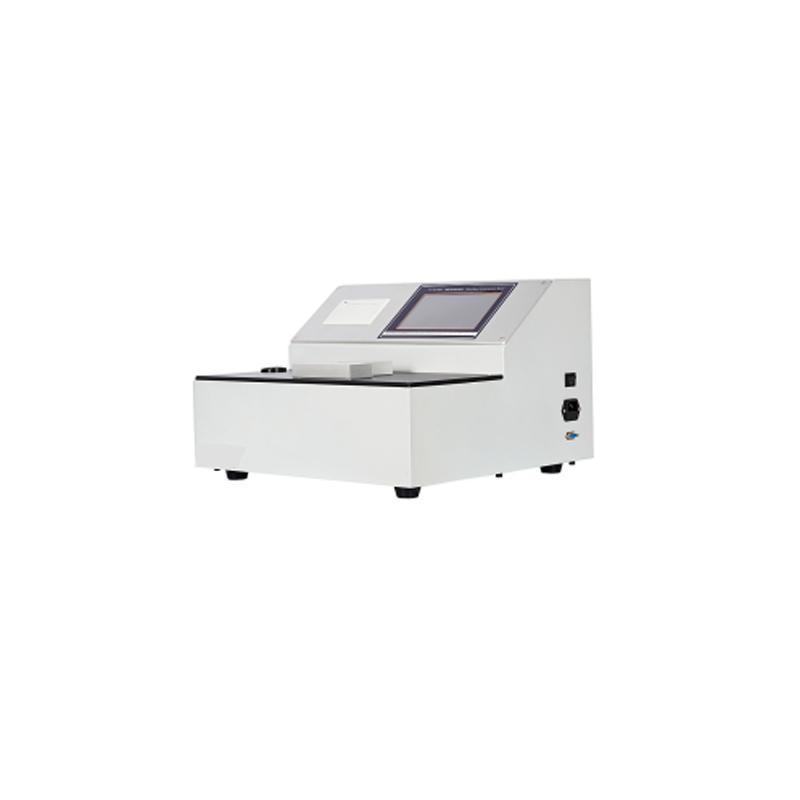

Short Span Compression Tester GT-N21

Short Span Compression Tester GT-N21

Application:

The Short Span Compression Tester is used for paper and cardboard which make cartons and boxes, and it is also suitable for paper sheets prepared by the laboratory in the pulp test.

Standards:

ISO 9895, TAPPI 826, GB/T 2679.10

1. Double cylinders, pneumatic clamping of the sample, reliably guarantee the parameters specified by the standard.
2. 24-bit precision analog-to-digital converter, ARM processor, fast and accurate sampling.
3. It can store 5000 sets of batch data, which is convenient for users to check historical measurement data.
4. Driven by a stepping motor, the speed is accurate and stable, and it can return quickly to improve the test efficiency.
5. The vertical and horizontal tests can be carried out in the same batch, and the vertical and horizontal average values can be printed.
6. Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
7. The real-time force value-displacement curve is displayed during the test, which is convenient for users to observe the test process.
