Lab Automatic Wire Bar Coating Machine GT-N37

Lab Automatic Bar Coater
  • Brand:

    GESTER
  • Item NO.:

    GT-N37
  • Order(MOQ):

    1
  • Product Detail

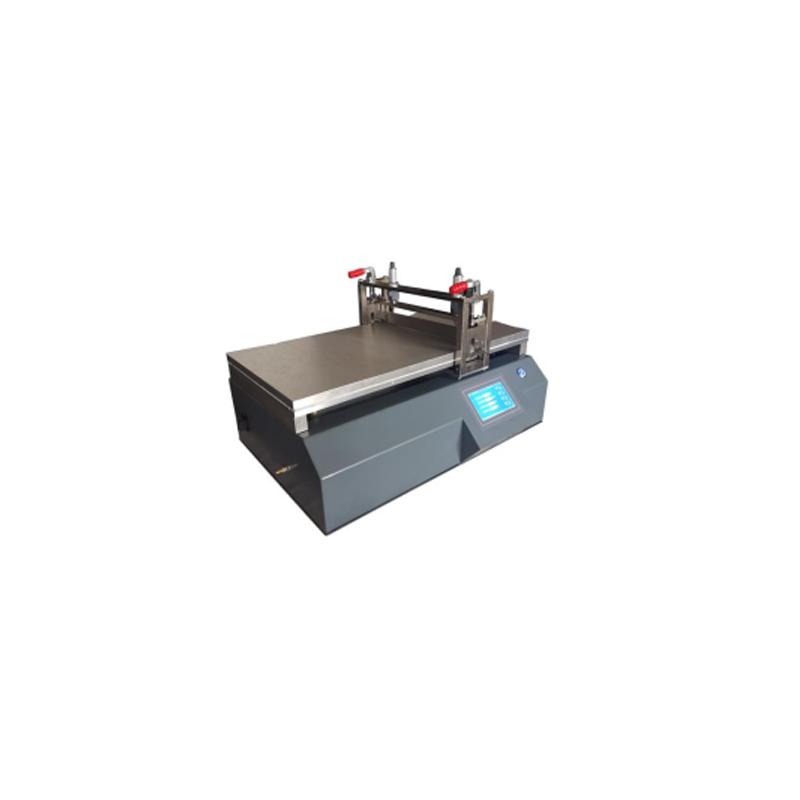

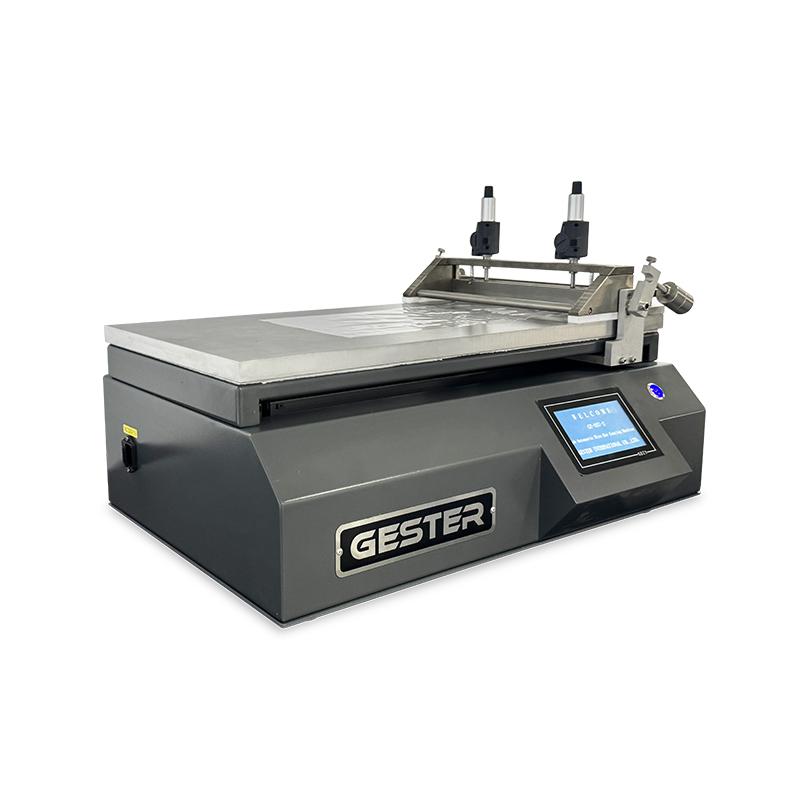

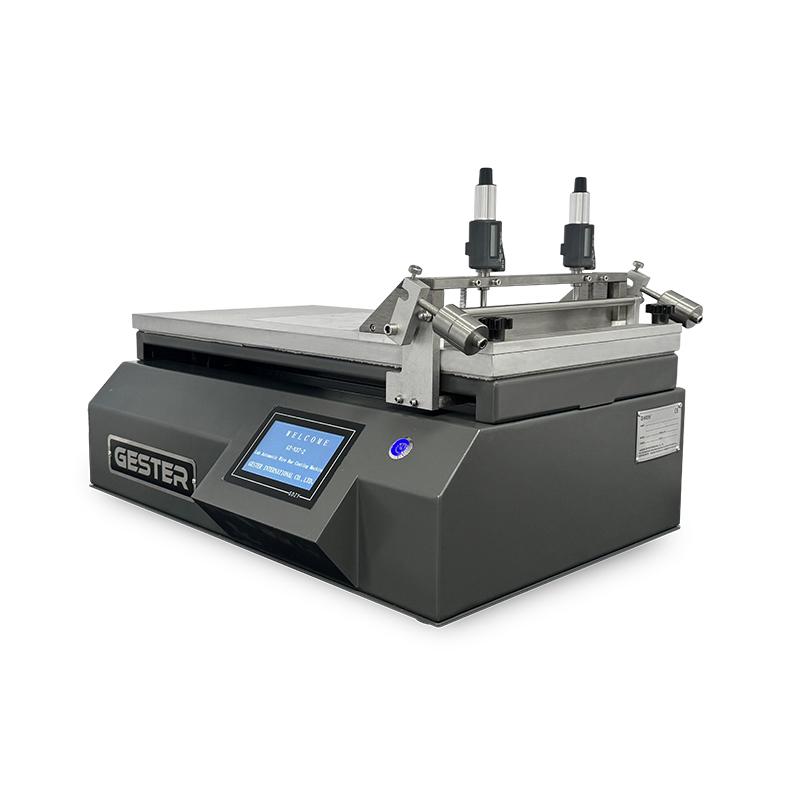

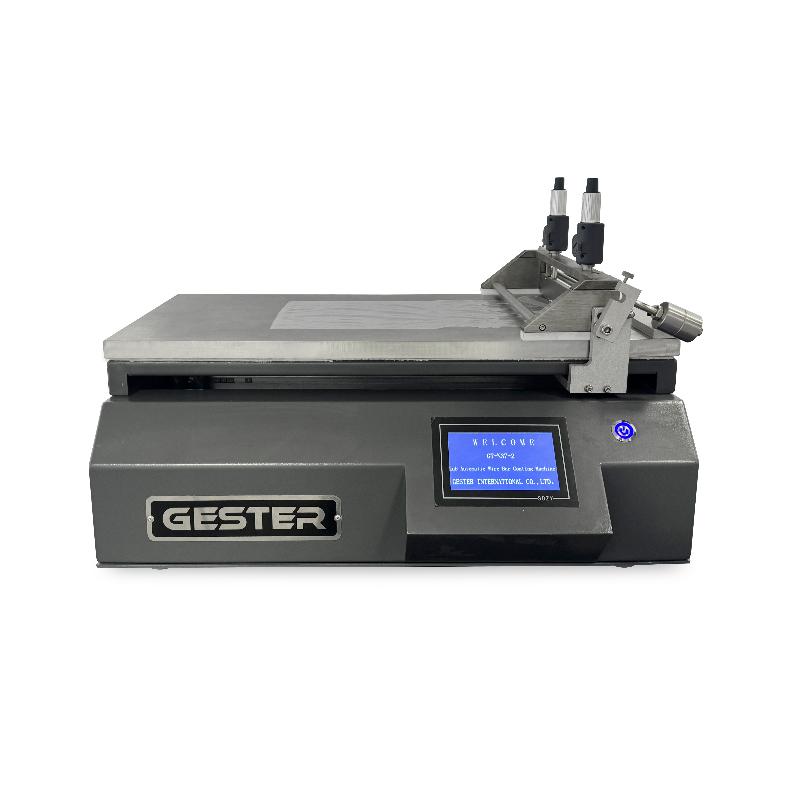

Lab Automatic Wire Bar Coating Machine GT-N37


Product Introduction

Application:

The automatic coating testing machine adopts imported accessories, with excellent price, has been favored by many multinational R&D institutions, and well-known universities and scientific research institutions at domestic and overseas. By controlling the speed and stable pressure, to ensure that the effect, uniformity and stability of coating and gluing.


lab coating machine wide application: It can carry out coating on various plane materials such as paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate and so on.




Key Specifications



Model

GT-N37-1

GT-N37-2

GT-N37-3

Clamping method

Mechanical Fixing Fixture

Mechanical Fixing Fixture

Vacuum adsorption

Heating Temperature

/

RT-180

Accuracy: ±3

RT-180

Accuracy: ±3

Heating method



Aluminum baseplate heating

Aluminum baseplate heating

Vacuum Adsorption Function

/

/

hole: φ1.2mm

Hole distance: 20*20mm

Adsorption area: 300*400mm

Control mode

Touch screen

Coating distance control

1-400mm

Coating Thickness

0.001-10mm (Liftable)

Speed

5-180mm/s (Stepless)

Coating Area

300*400mm (Adjustable)

Size of Wire Bar

Accuracy: ±0.001mm

Effective coating width: 300mm

The coating thickness is determined the wire bar, 10μm wire bar as standard accessories

Length of Scraper

360mm (Stainless steel), accuracy: ±0.003mm

Power Supply

220V  50HZ
