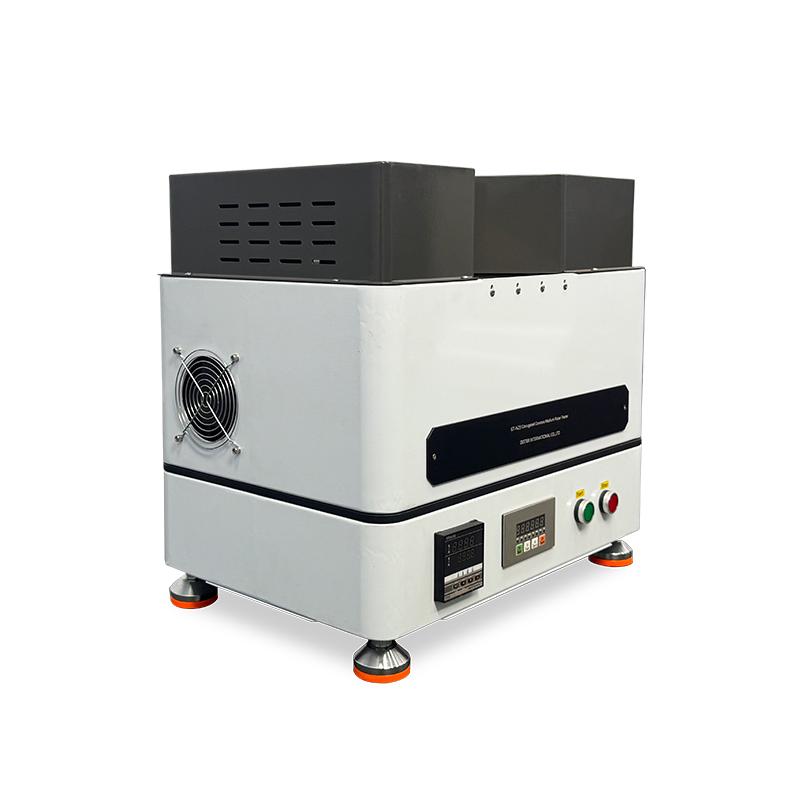

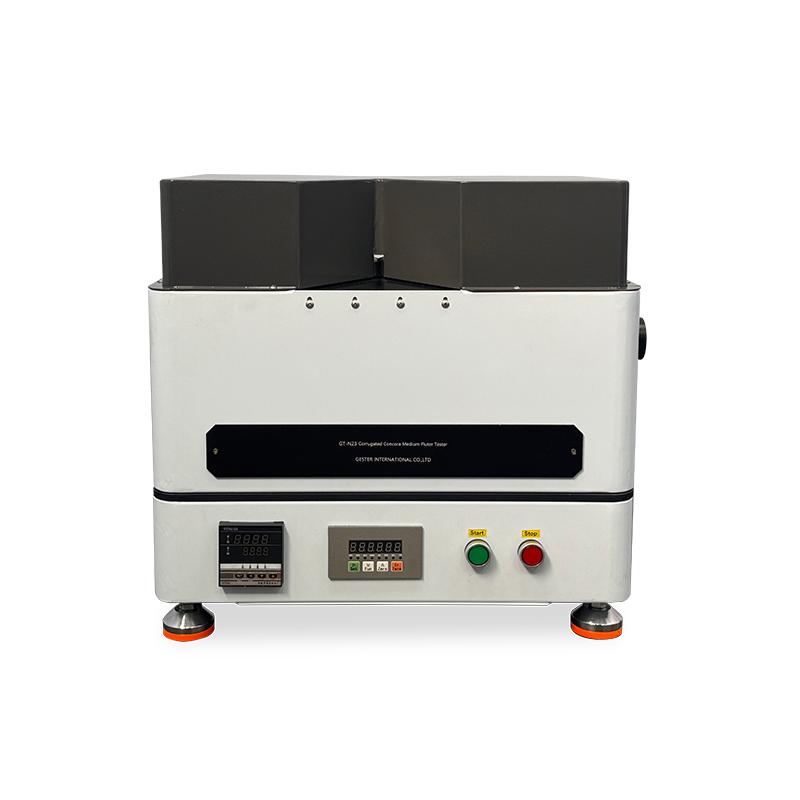

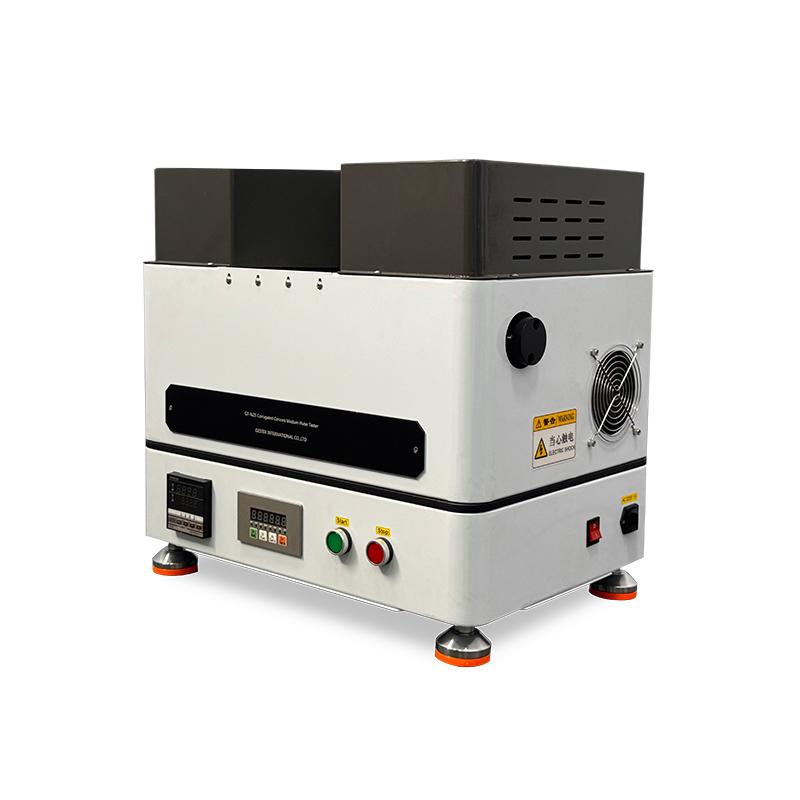

CMT CCT Corrugated Concora Medium Fluter Tester

Product Introduction

Application

Corrugating Medium Flute Tester is used to test the flat compression and vertical compression strength of corrugating medium after laboratory fluting corrugating medium. This tester is specially used to make standard sample for flat compressive strength test and vertical compressive strength test of corrugating medium - make standard corrugating waveform(the corrugating medium after laboratory fluting). After corrugated, use full automatic or micro-computer compression tester to determinate flat and compressive strength of corrugating medium. It is comply with standard of QB/T 1061, GB/T2679.6, ISO7263 and so on. This tester is widely use in paper mills, scientific research, quality inspection institutions and other industrial of corrugated paper.


Standards

QB/T 1061, GB/T2679.6, ISO7263, TAPPI T 809 om-1


Key Specifications



Model

GT-N23

Working speed

4.5r/min, error0.5r/min

Temperature display resolution

1℃

Temperature measurement accuracy

0.5 grade ± 1 word

Adjustable temperature range

room temperature ~200℃

Working pressure adjustable range

(49~180)N, working pressure should be consistent with the actual working pressure of flute roller, error should not exceed ±10%

Standard working temperature

175℃, the actual error should not exceed 8 ℃ at 177 ℃

Safety temperature

After working time ≥ 2h, the shell temperature shall not exceed 50°C

Heating mechanism

the insulation resistance of the hot plate should be 5m Ω

Real-time monitoring

With monitoring window (155×338mm), it can be opened at any time to monitor the real-time working state

Ambient temperature

20 ± 10 ℃; no vibration, without flammable and corrosive gas

Standard tooth type

A type tooth

External diameter of flute roller

228.5±0.5mm

Thickness of flute roller

16 ± 1 mm

Number of teeth

84 pcs

Arc radius of crest of thread

R l.5 ± 0.1mm

Arc radius of tooth valley

R 2.0 ± 0.1mm

Height of whole tooth

4.75 ± 0.05 mm

Power supply environment

the fluctuation range of power supply voltage should not exceed 10% of the rated voltage

The worktable is stable and flat without vibration. Angle

90 degree

Spring tension

100N

Dimension(L×W×H)

≈ 540mm×390mm×550mm

Power

AC220V,50Hz

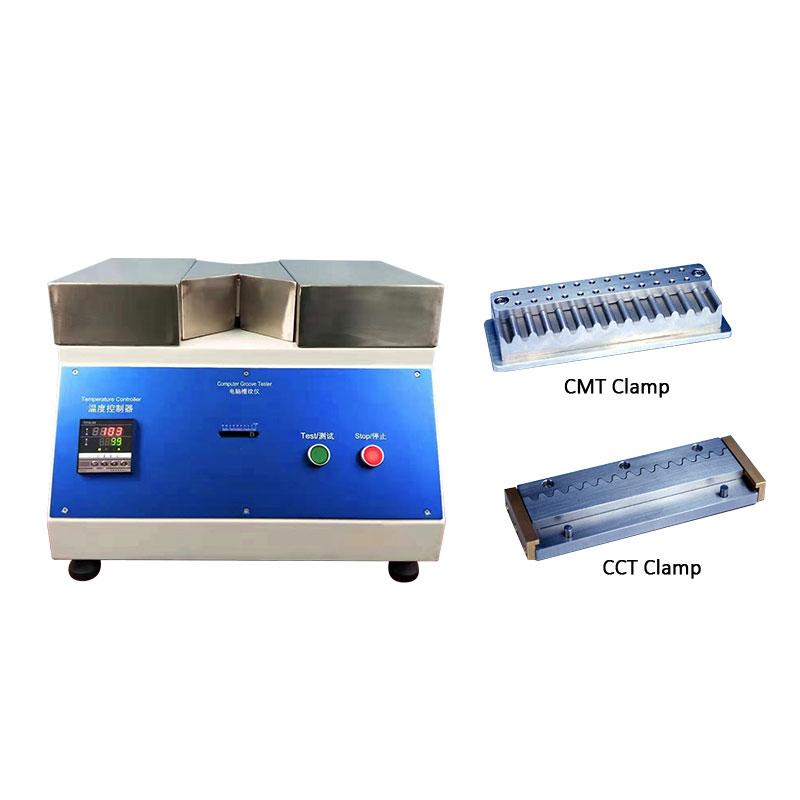

CMT Clamp

thread depth

4.75±0.05mm

Radius of lower tooth

2.4±0.1mm

Teeth peak

8.5±0.05mm

Size

70±0.1mm×40±0.1mm

CCT Clamp

Length of tooth

19mm

Number of tooth

16 pcs

Height of tooth

2.4±0.1mm

Size

152±0.1mm×62±0.1mm
