Rattle Test Template GT-M46

Rattle Test Template is used to test whether toys or the parts of toys may cause choking or swallowing. There are two kind of test template: oval rattle test fixture and round rattle test Template.
  • Brand:

    GESTER
  • Item NO.:

    GT-M46
  • Order(MOQ):

    1
  • Payment:

    L/C or T/T
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20-30 days
  • Product Detail

Rattle Test Template GT-M46


Product Introduction

Application

Rattle test is a simulation of children’s oral cavity capacity, used to test whether toys or the parts of toys may cause choking or swallowing. Mainly used in toys intended for children who are too young to sit up unaided.


Standards:

EN-71-1

ASTM F963

16CFR 1510

ISO 8124-1

GB 6675-2


Dimensions

 Rattle Test Template

 Rattle Test Template

Test Range

1. Rattle-shaped toys and squeeze toys with or without noise making features;

2. Teethers, toys or components intended to be chewed on;

3.Hand-held activity toys;

4.Books and building blocks covered by textile or vinyl;

5.Removable components of toys intended to be strung across a crib, playpen or perambulator;

6. Removable components of baby gyms;

7. Legs of baby gyms.

8. Play figures

Note: The tester do not apply to soft-filled parts of a toy or parts of fabric. And do not apply to rigid elements having a major dimension equal to 30 mm or less.


Testing Requirements:

GT-M46A (Template A) : For such toys having a mass of 0.5 kg or less, no part of the toy shall protrude past the base of Template A

GT-M46B (Template B) : For such toys with nearly spherical, hemispherical or circular flared ends having a mass of 0.5 kg or less, no part of the toy shall protrude past the base of Template B

Key Specifications



Model

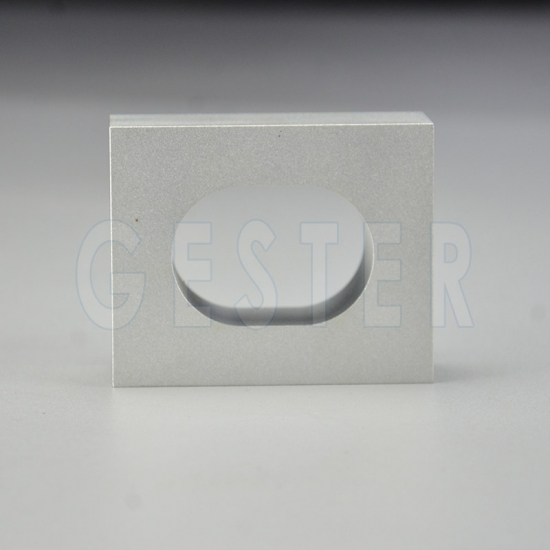

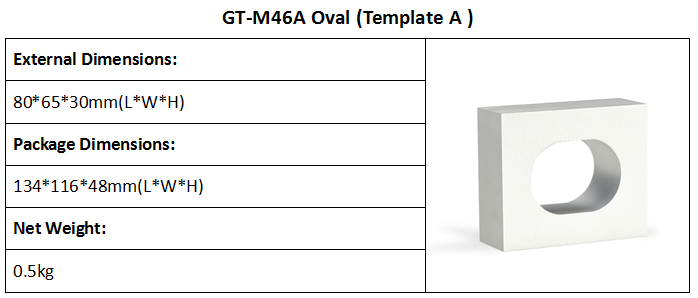

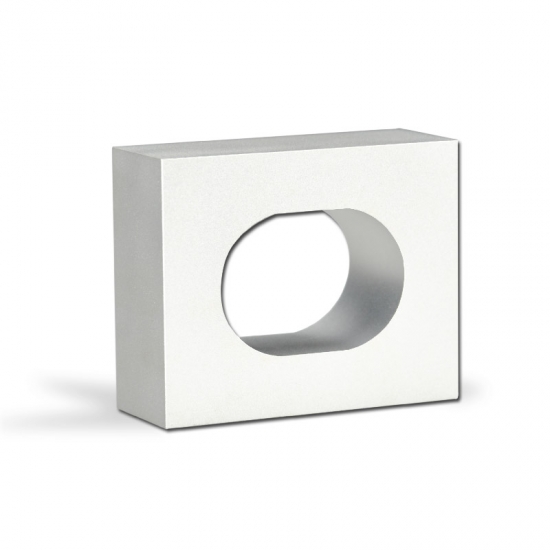

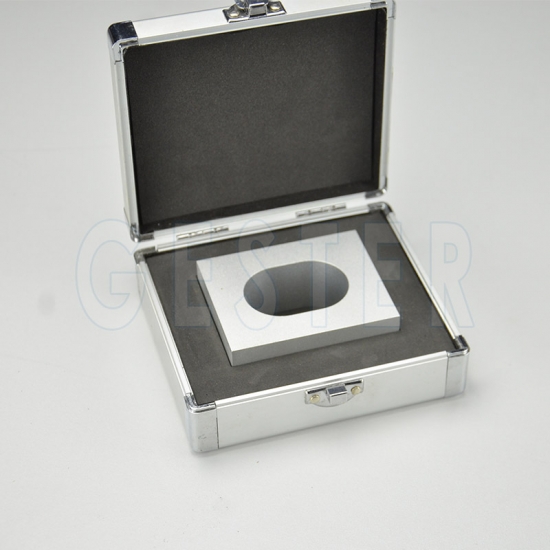

GT-M46A Oval (Template A)

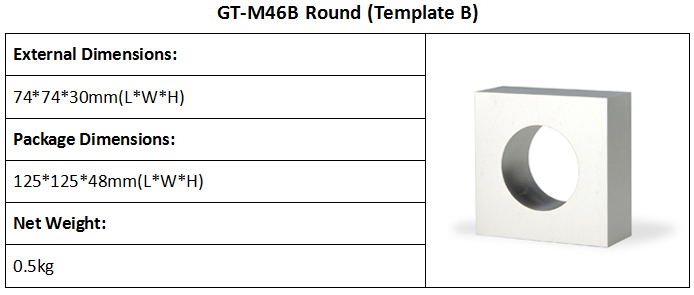

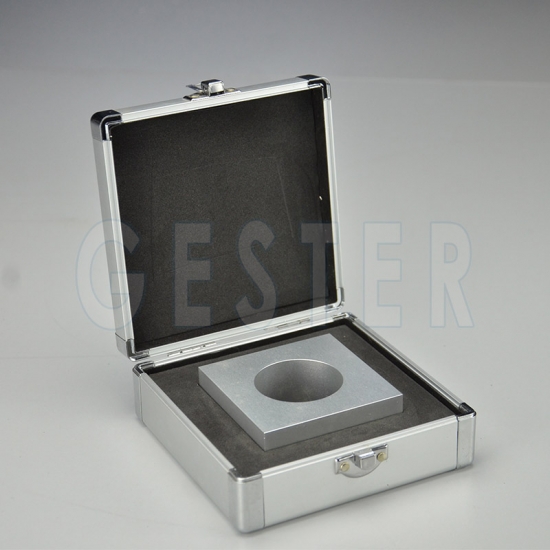

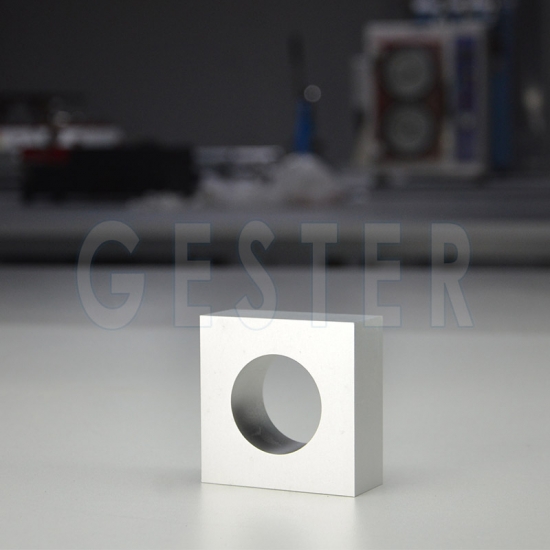

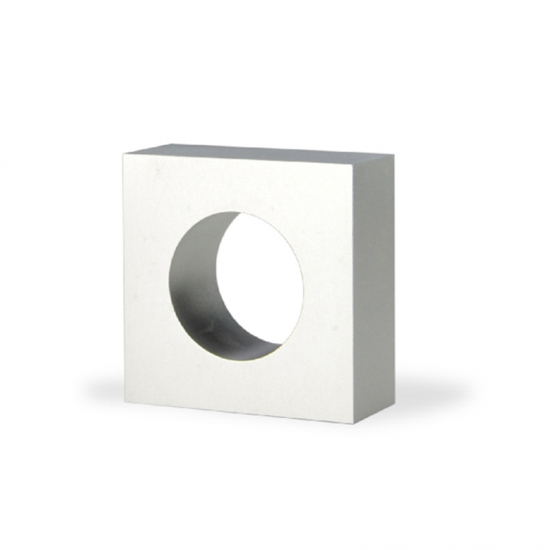

GT-M46B Round (Template B)

Inside hole radius/ Inner Diameter(mm)

17.5+0/-0.05

42.7+0/-0.1

Width(mm)

65±2

73±2

Inside Hole Width(mm)

35mm

/

Inside Hole length(mm)

50+0/-0.1

/

Length(mm)

80±2

73±2

Thickness(mm)

30+0.1/-0

30+0.1/-0

Material

Aluminum metal alloy, surface oxidation



Standards

EN-71-1 section 8.16

ASTM F963 section 4.22.1, 4.23, 4.24

16CFR 1510

ISO 8124-1section 5.3

GB6675-2 section 5.3

EN-71-1 section 8.16 and 8.33

ASTM F963 section 4.22.2, 4.24.2, 4.32

16CFR 1510

ISO 8124-1section 5.3, 5.6

GB6675-2 section 5.3, 5.6

Weight

500g

500g


 Rattle Test Template
