Small Torque Fixture GT-M42

Torque Test for Toys Torque Clamp Middle is the assistant tool for toys torque test.

  • Brand:

    GESTER
  • Item NO.:

    GT-M42
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Western Union
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    in stock
  • Product Detail

Small Torque Fixture GT-M42


Product Introduction

Application:

Toys Torque Clamp for Torque Testing Small Size is the assistant tool for toys torque test.


Standards:

ISO8124-1 section 5.24.5
GB 6675-2 section 5.24.5
EN71-1 section 8.3
EN 16890-2017 Section 8.3.1
ASTM F963 section 8.8, 8.16, 8.24.4.3
16CFR 1500 section 51, 52, 53


Dimensions

Toys Torque Clamp



Application Range


1. Buttons, eyes, decorative sheet and other things on the toys

2. Toys or toys parts made of expandable material

3. Glued wooden toys

4. Toys protrusion protector or projectiles impacted surface protector

5. Mouthpiece of mouth actuated toys or other parts of toys intended to be placed on the mouth

6. All hard materials to cover on the face (such as goggles, space helmets or welding masks)

7. Airlock of aquatic toys and inflatable toys

8. Small ball parts on toys

9. Toys can be touched magnetism components, etc.

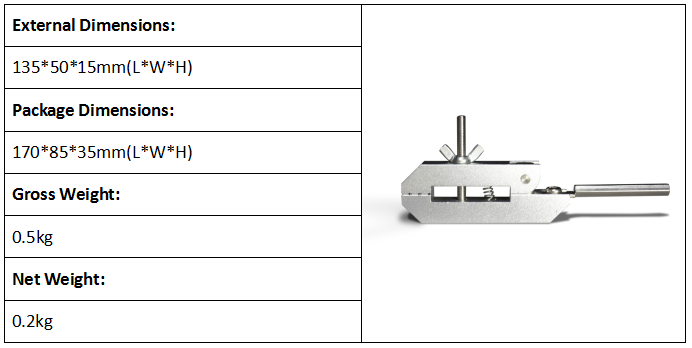

Key Specifications



Model

GT-M42

Material

Aluminum/Stainless steel

Opening range

0mm-20mm

Throat depth

25mm

Dimension

135×50×15mm

Packing dimension

170×5×35mm

Weight

0.5kg

Accessories

Optional accessories

Optional

9BTG TOHNICHI Torque Gauge



Application Industry

Many kinds of toys can be tested on the Small Torque Fixture.

Toys Torque Clamp
