Torque Test for Toys Torque Clamp Middle is the assistant tool for toys torque test.
Brand:
GESTERItem NO.:
GT-M41Order(MOQ):
1Payment:
T/T, L/C, Western UnionShipping Port:
Xiamen PortLead Time：
in stockProduct Detail

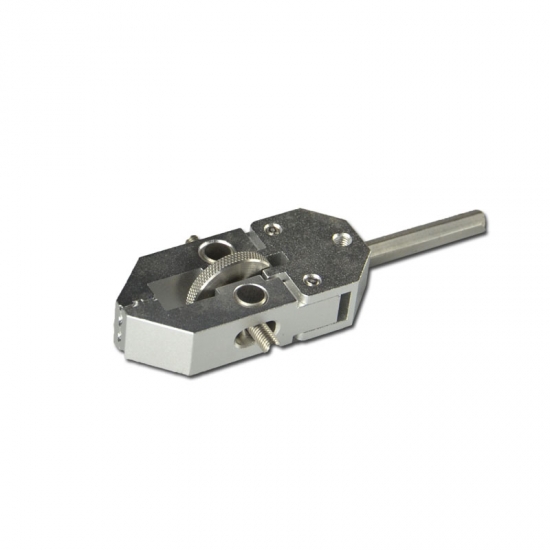

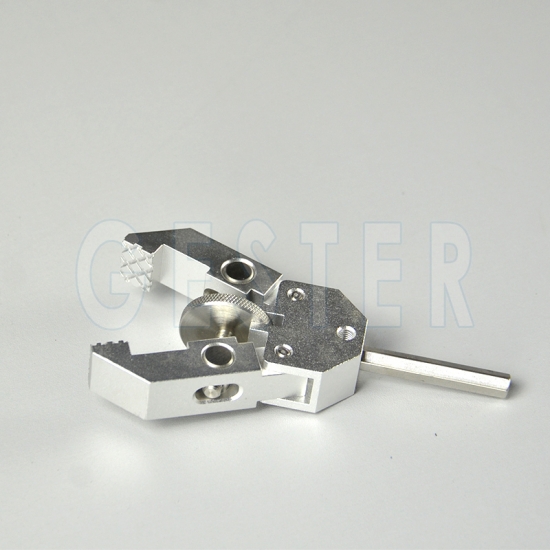

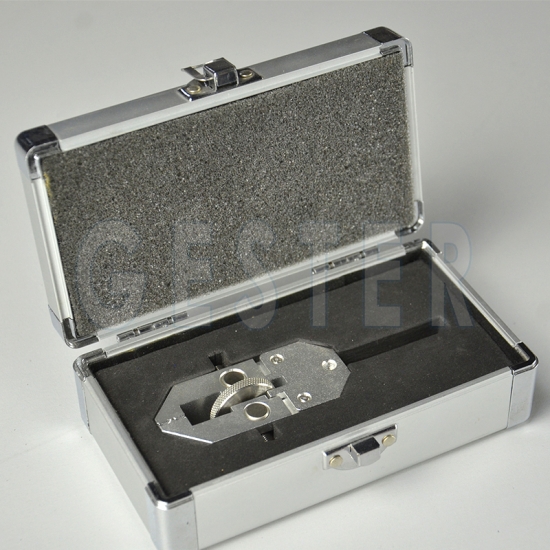

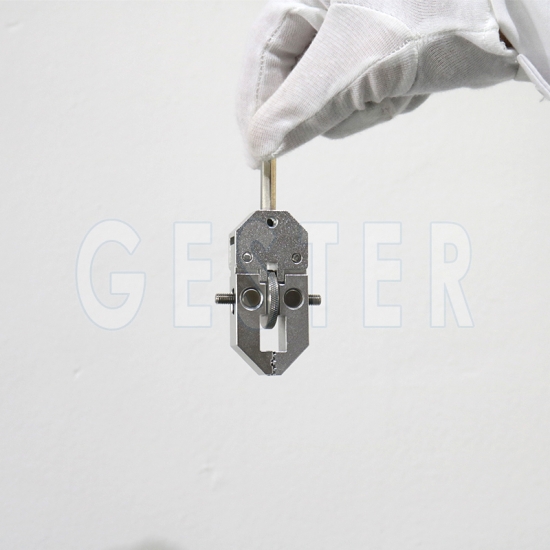

Middle Torque Fixture GT-M41
|
Application: Torque Clamp Middle is the assistant tool for toys torque test.
ISO8124-1 section 5.24.5 GB 6675-2 section 5.24.5 EN71-1 section 8.3 EN 16890-2017 Section 8.3.1 ASTM F963 section 8.8, 8.16, 8.24.4.3 16CFR 1500 section 51, 52, 53
|
1. Buttons, eyes, decorative sheet and other things on the toys
2. Toys or toys parts made of expandable material
3. Glued wooden toys
4. Toys protrusion protector or projectiles impacted surface protector
5. Mouthpiece of mouth actuated toys or other parts of toys intended to be placed on the mouth
6. All hard materials to cover on the face (such as goggles, space helmets or welding masks)
7. Airlock of aquatic toys and inflatable toys
8. Small ball parts on toys
9. Toys can be touched magnetism components, etc.
Model |
GT-M41 |
Material |
Aluminum/Stainless steel |
Opening range |
0mm-37mm |
Throat depth |
20mm |
Dimension |
110×50×25mm |
Packing dimension |
140×80×45mm |
Weight |
0.5kg |
Accessories:
Optional accessories |
Optional |
9BTG TOHNICHI Torque Gauge |

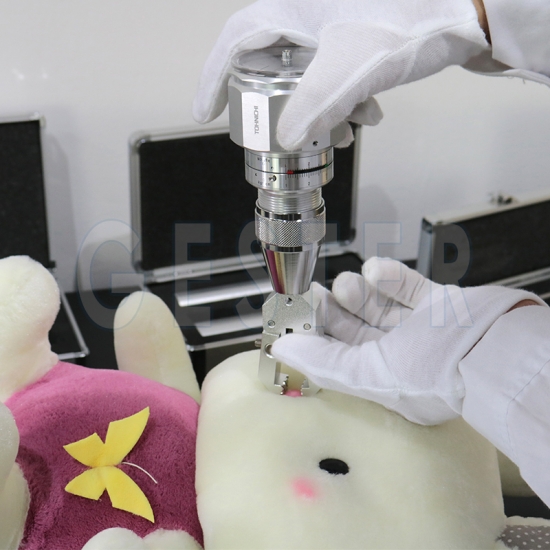

Many kinds of toys can be tested on the Middle Torque Fixture.
