Rain Tester for Textile Fabric GT-C45

Rain Tester for Textile Fabric GT-C45 To determine the penetration resistance of fabrics or composites at different intensities of water impact.

  • Brand:

    GESTER
  • Item NO.:

    GT-C45
  • Order(MOQ):

    1
  • Payment:

    L/C T/T
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

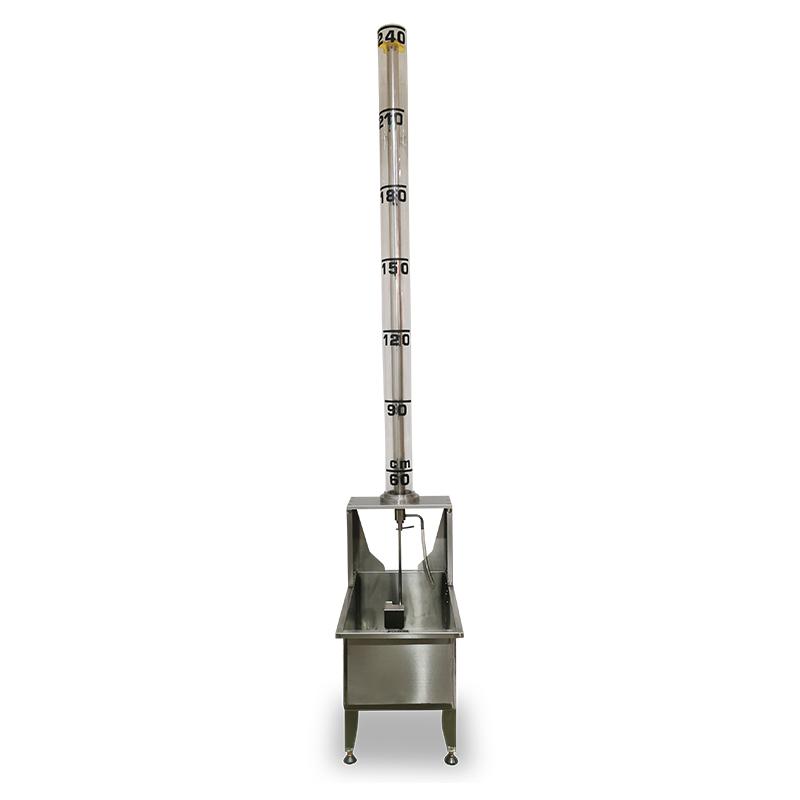

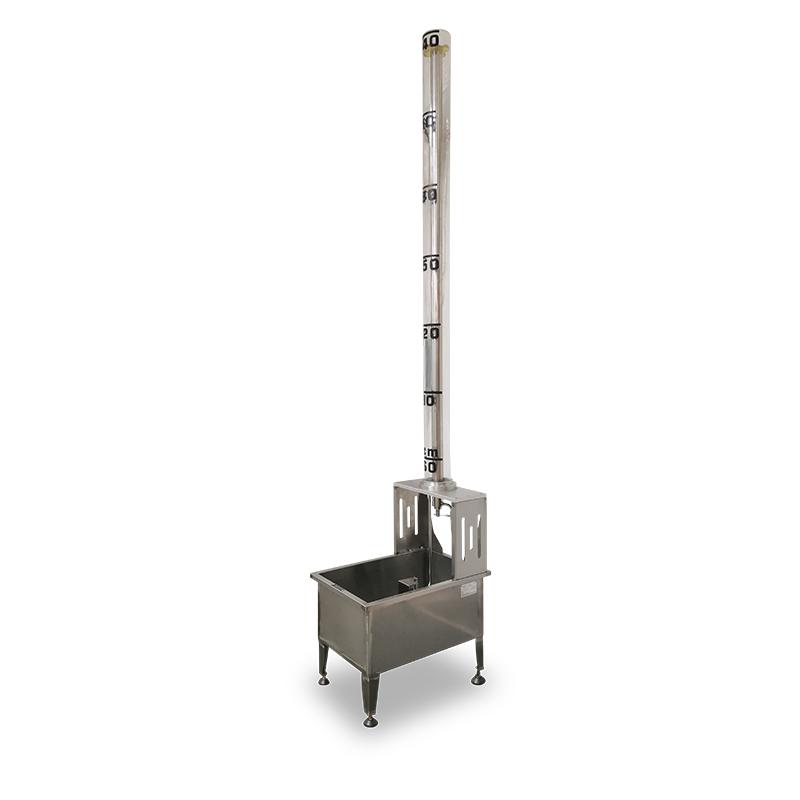

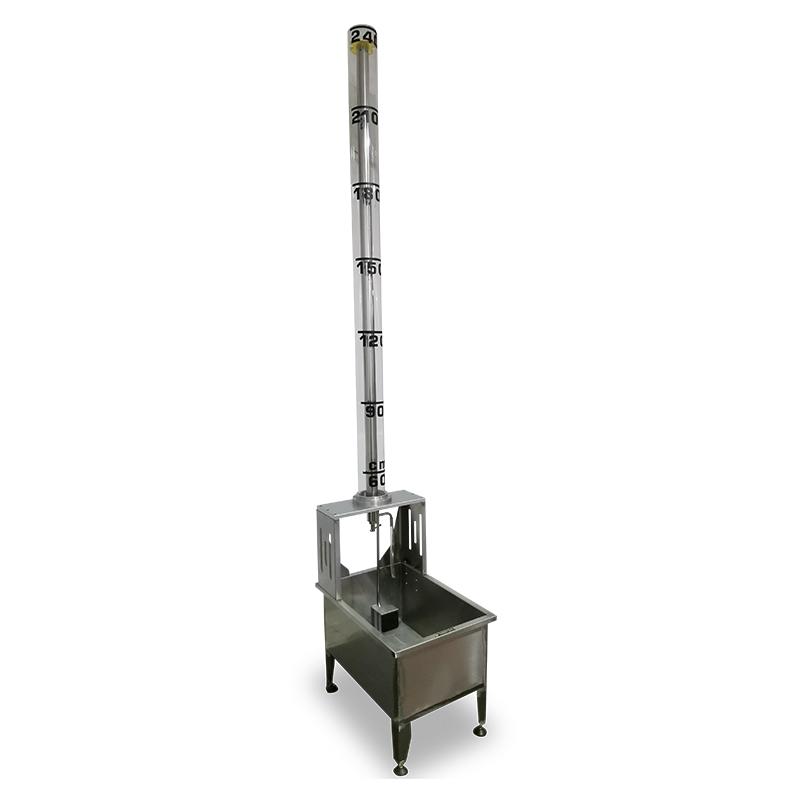

Rain Tester for Textile Fabric GT-C45



Product Introduction

Application:

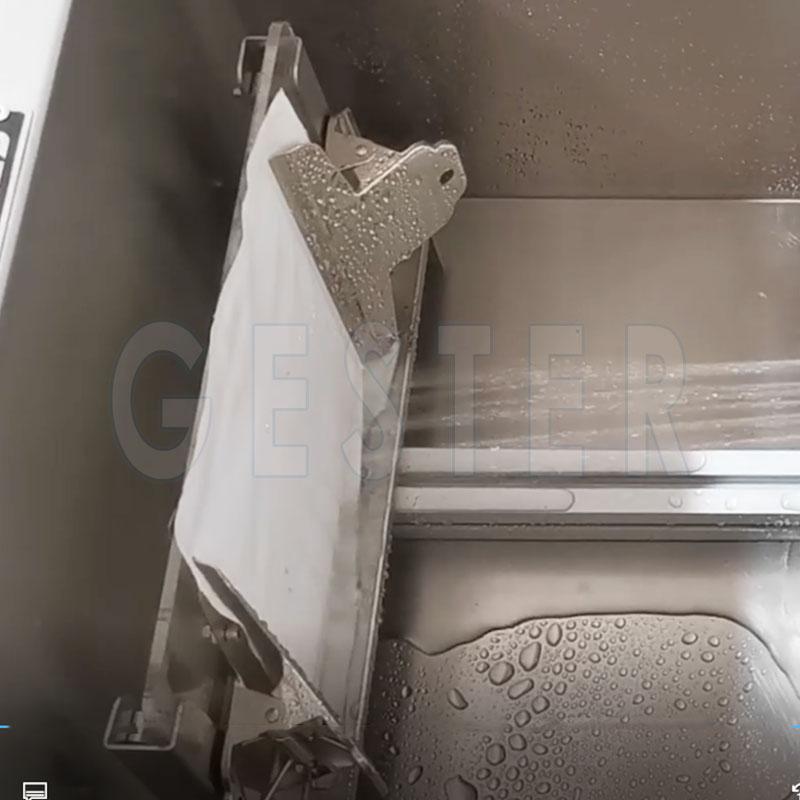

Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated  the rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standard blotting paper (which is weighed before and after each test). The rain is formed by a column of  water which can be adjusted from 600mm to 2400mm.,depending on model in 10mm  increments, applied via a standardized nozzle.

Standards:
AATCC 35, GB /T 23321, ISO 22958, IST 80.2 (01) 8.7

Feature
  1. The Rainproof Tester testing box is made by organic glass.
  2. The rain test equipment level control tube is made of organic glass tube, inner tube made of stainless steel tubes.
  3. Have water circulating system .



Rain Tester Key Specifications


Model

GT-C45

Sample Dimensions

200 x 200mm

Blotting Paper Dimensions

152x152mm

Sample Nip Width

152mm

Sample Nip Space Apart

165mm

Sample Nip Dimensions

178 x 229mm

Nozzle

13×φ0.99mm

Distance Between Nozzle & Specimen

305mm

Hydraulic Pressure

600mm to 2400mm

Dimensions

460 x 460 x 3300mm( L x W x H )

Weight

30kg


Accessories:

Test Cabinets and Fixture

1pc



Water Level Barrel

1pc



Digital Balance (Accuracy 0.1g)

1Set

optional

Blotting Paper (6 in.*6 in.)

1Pack (250pcs)

optional



Application Industry

All kinds of materials can be tested on the Rain Tester for Textile Fabric
