Horizontal Flame Chamber for Textile GT-C34B

Horizontal Flame Chamber for Textile GT-C34A Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles.
  • Brand:

    GESTER
  • Item NO.:

    GT-C34A
  • Order(MOQ):

    1
  • Payment:

    L/C T/T
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

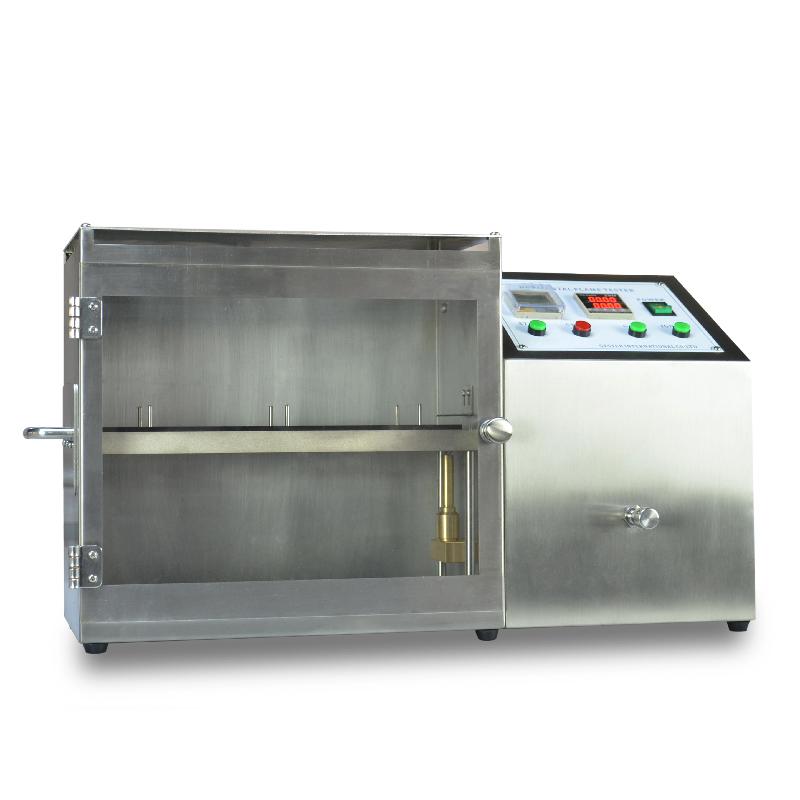

Horizontal Flame Chamber for Textile GT-C34A


Product Introduction

Application:

Horizontal Flame ChamberMainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles (for example, passenger cars, lorries/trucks, estate cars, coaches), and of tractors and machinery for agriculture and forestry, after exposure to a small flame.

Standards:
ASTM D5132, ISO 3795, FMVSS 302, JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953,

SAE J369, GMW3232

Feature
  1. Shell 2mm cold plate inside and outside powder stoving varnish.
  2. Dedicated high quality aluminum fixture for anodizing.

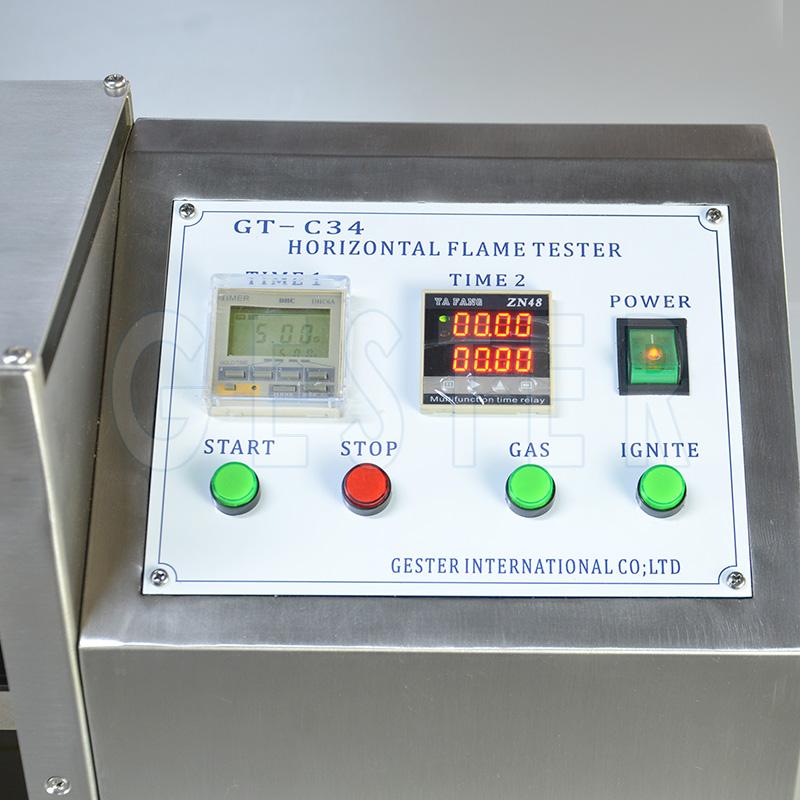

  3. Flammability tester: wireless remote controller timing device.
  4. Standard burning appliances, electric spark firing automatically.
  5. Horizontal Flame Chamber: Tempered glass window.
Horizontal Flame Chamber Key Specifications


Time range

0-999.9s

Time resolution

0.01s

Ignition time

15s

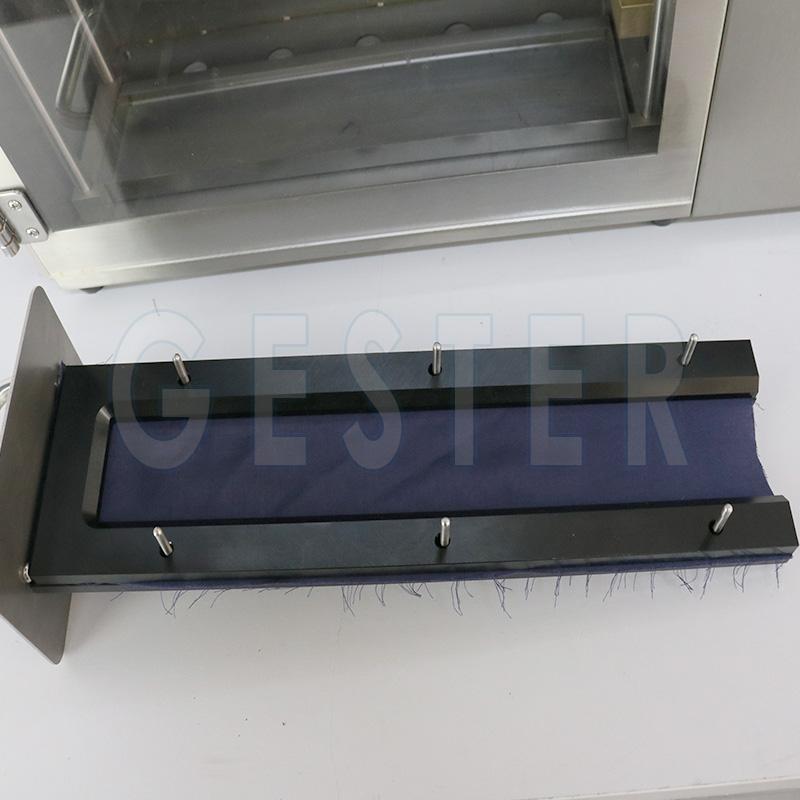

Specimen fixture

U shape, inner size: 330×50mm

Size of specimen

356 x 100mm thickness less than 13mm

Burner angle

Vertical

Inner diameter of burner head

9.5mm

Ignition height (burner top to specimen )

19mm

Flame height

38mm+/-2

Power supply

AC 220V 50/60HZ

Dimensions

450 x 310 x 510mm (L x W x H)

Weight

30kg



Application Industry
All kinds of materials can be tested on the Horizontal Flame Chamber

Horizontal Flame Chamber for Textile
