Fabric Water-vapour Transmission Tester GT-C28

Water Vapor Permeability Tester
  • Brand:

    GESTER
  • Item NO.:

    GT-C28
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    20~30 days
  • Product Detail

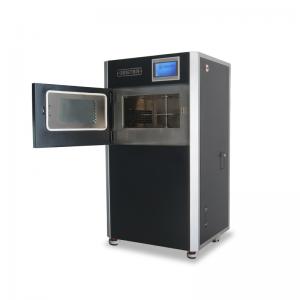

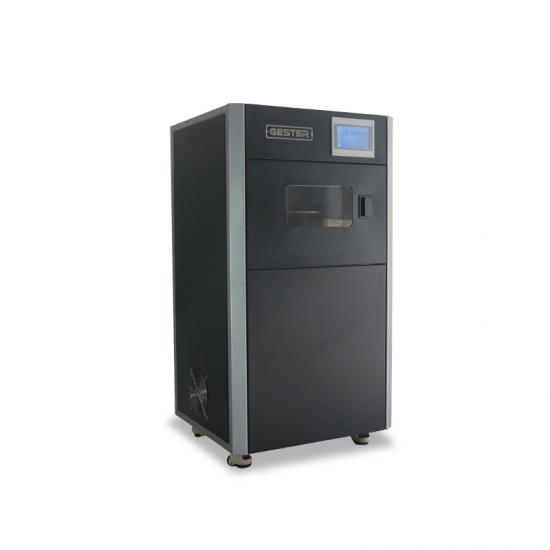

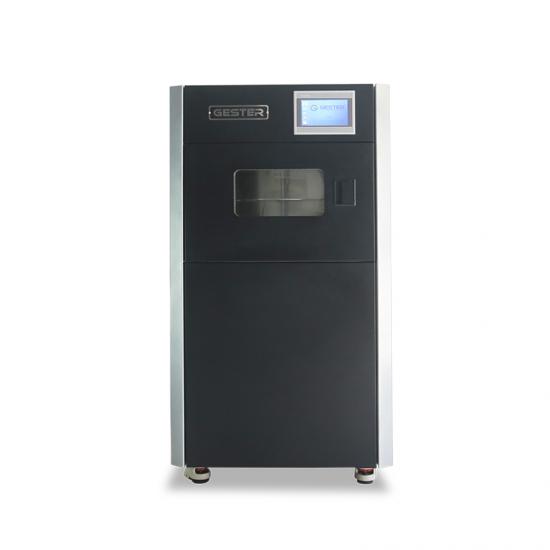

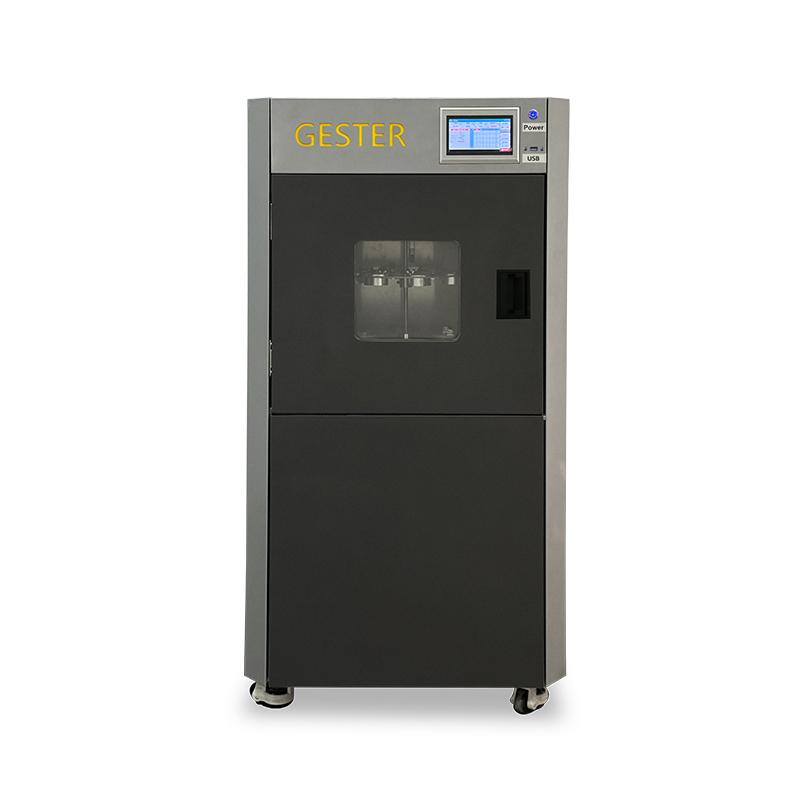

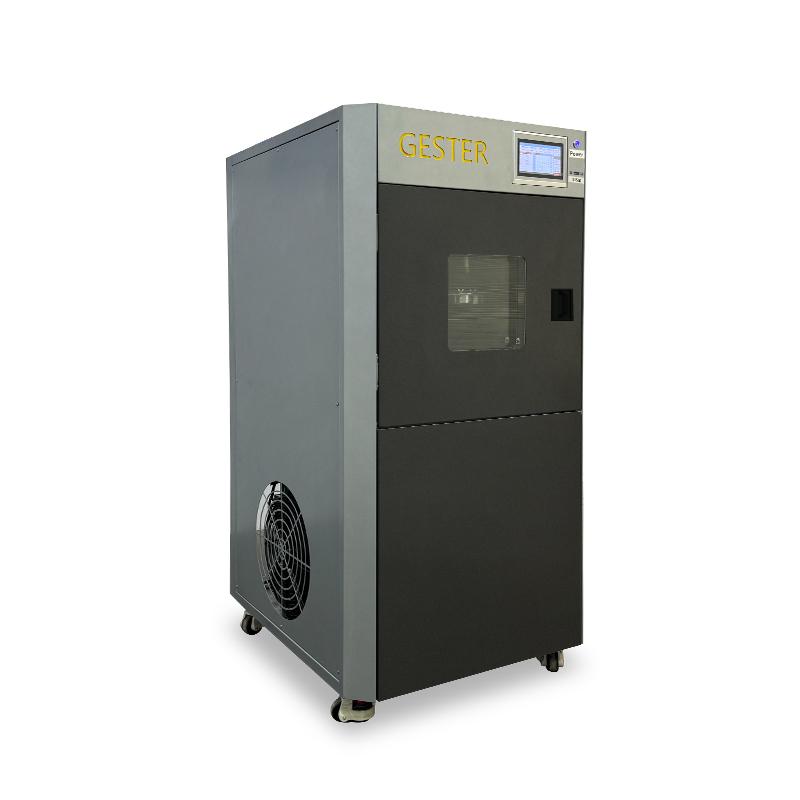

Fabric Water-vapour Transmission Tester GT-C28



Product Introduction


Application:

GESTER Fabric Water-vapour Transmission Tester: To test the water vapour transmission of various fabric (moisture permeable fabric included) and non-woven fabric such as bat wool, space cotton, sportswear fabric etc.


Standards:

GB/T12704, GB/T21655, ASTM E96 (Procedure A, B, C, D, E), JIS L1099, BS 7209, ISO 8096


Feature

  • Water-vapour Transmission Tester Apply to various standards and testing methods.

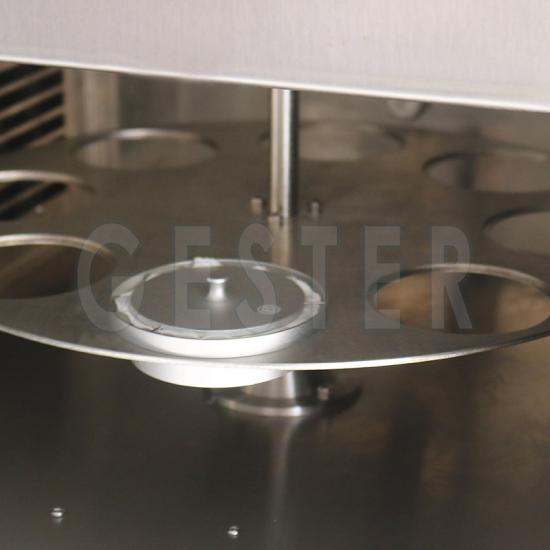

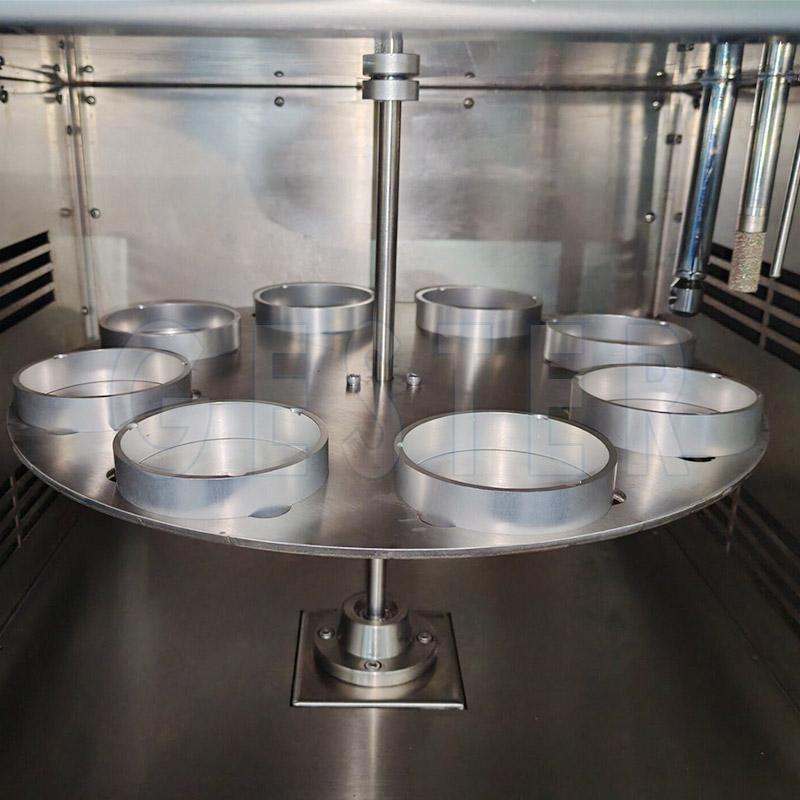

  • Rotary specimen holder, the speed can be adjusted. The test is much evenly than fixed specimen holder.
  • The wind speed can be adjusted. Adopt import air velocity transducer to demarcate which can ensure the speed.
  • The temperature and humidity control use RID algorithm, which fluctuation is small and can prevent the overshoot. The temperature and humidity calibration function can avoid the sensor bias caused by long time using.
  • High accuracy temperature and humidity sensor makes the test result reliable and precise.

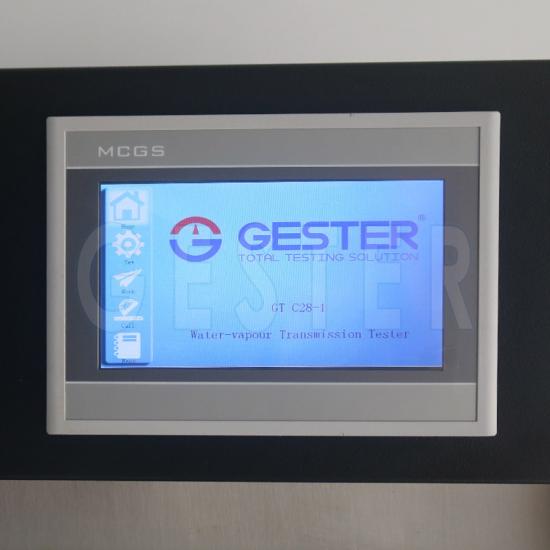

  • Single chip control, color touchscreen operation,modular design, temperature and humidity digital setting, intelligent control and real-time display the temperature, humidity and time.

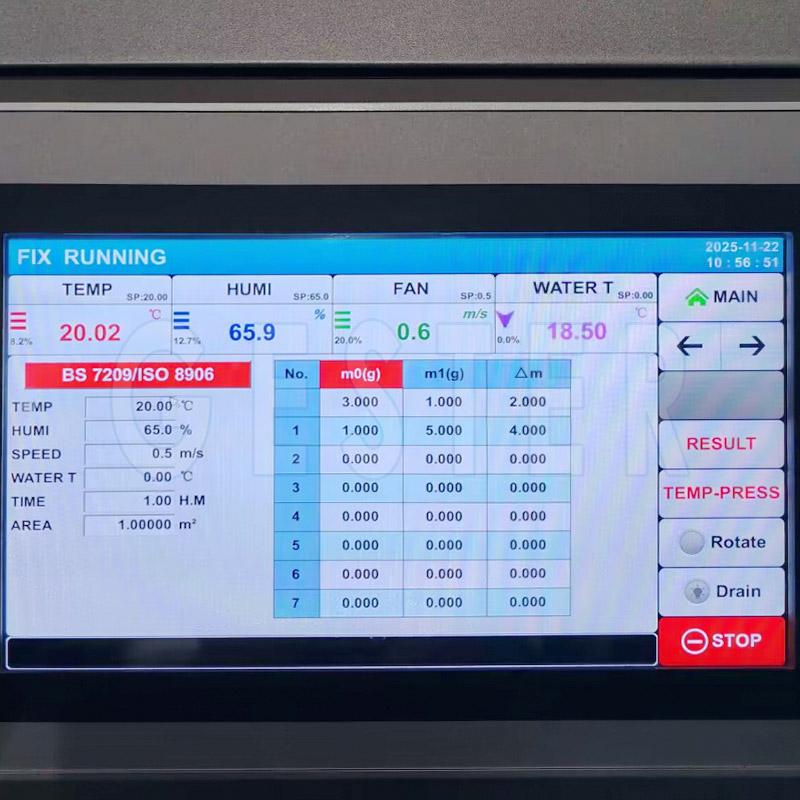

  • Can input parameter on the touch screen and calculate the WVT, WVP, PV value.
  • The machine equipped with upper computer software, can record the temperature and humidity curve, be easy to calculate and print mass data report.
Key Specifications



Model

GT-C28-1

GT-C28-2

Water vapour permeability cups

1 layer, 8pcs

2 layers, 8pcs/layer

Test chamber temperature

RT~50℃

Resolution

0.1℃

Accuracy of temperature

±0.5℃

Weighing function

No

Testing method

Upright cup method

Humidity of testing chamber

40%RH~95%RH

Resolution

0.1%RH

Accuracy of humidity

±1%RH

Testing time

0.1999.9h (can be changed into “min”)

Speed of circulating air

0.10.8m/s

Breathable area

2826mm² (∮60mm GB12704) or 4534mm² (∮76mm ASTM E96)

Or 5408mm² (∮83mm BS 7209) or 2826mm² (∮60mm JIS L1099)

Dimension

740×670×1185mm

1050×635×1170mm

Weight

200kg

250kg

Power supply

AC 220V 50/60HZ 4KW

AC 220V 50/60HZ 4KW


Accessories:

Standard accessories

1set

Soak Cup(GB Standard, and can be changed into other standards according to customer’s requirements)

1pc

Power Line

Optional accessories

1set

Soak Cup (ASTM standard)

1set

Soak Cup (BS standard)
