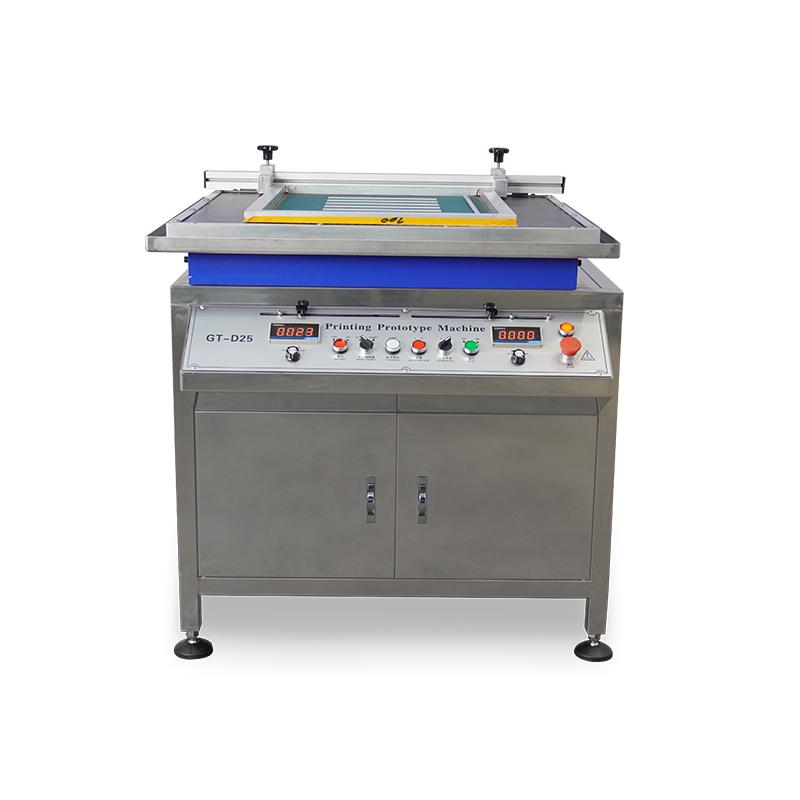

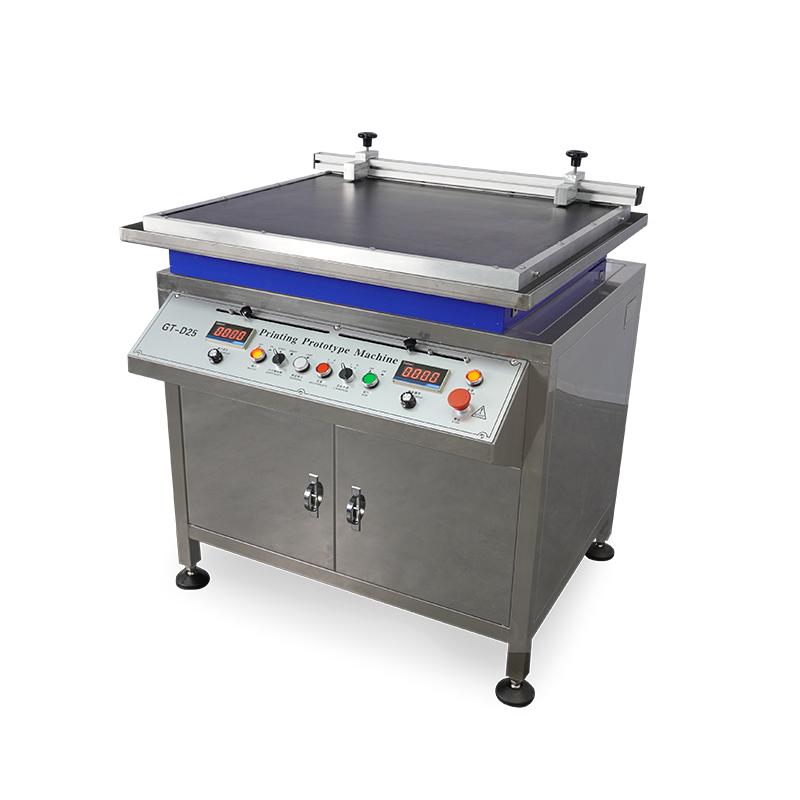

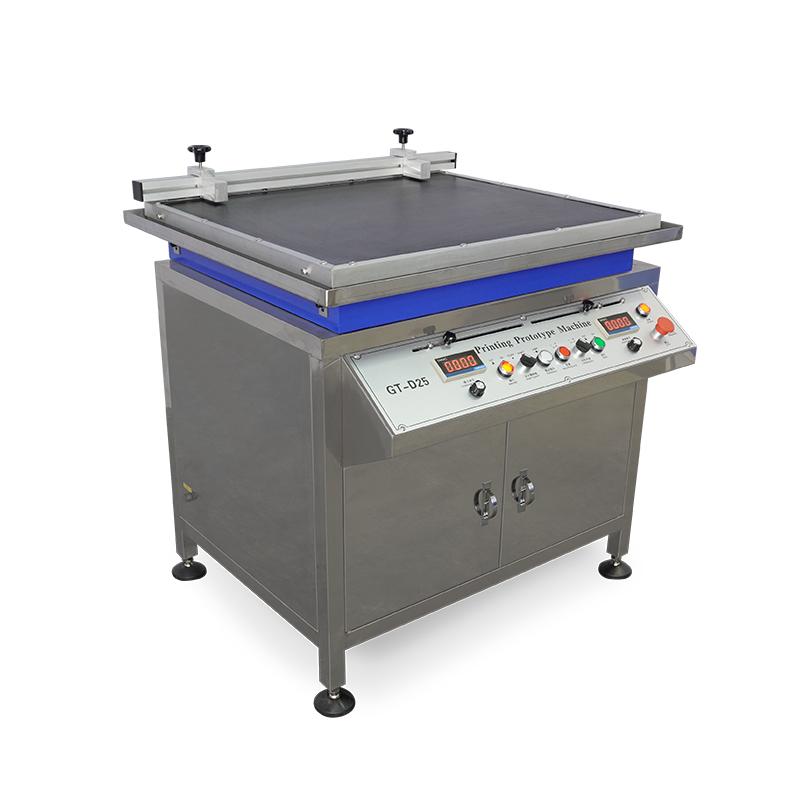

Printing Prototype Machine GT-D25

Product Introduction

Application of printing prototype machine

This machine is universal equipment in Printing and dyeing laboratory. It can be used in printing strike off process and dye color matching process of natural fiber, synthetic fiber and other blended fabrics.

Feature

1. Scraping process use electromagnet to make the roller squeegee run.
2. The strength of scraping can be set freely.
3. The speed of scraping can be set freely by the frequency conversion.
4. One-time scraping and circulate scraping options.
5. The distance of scraping can be set freely.

Key Specifications

Model	GT-D25
Magnetic bar diameter	Ф10 mm and Ф16mm
Magnetic bar length	500mm
Opti onal magnetic bar size	Ф20mm, Ф25mm
Magnetic bar stroke	100~500 mm （adjustable）
Area of table-board (L x W)	810mm×710mm
Size of printing frame (L x W)	640 x 480mm
Maximum of Printing (L x W)	500mm×500mm
Power Supply	1∮AC 220V 50/60HZ 1kw
Dimensions (L x W x H)	900mm×870mm×1005mm
Weight	150kg

Accessories

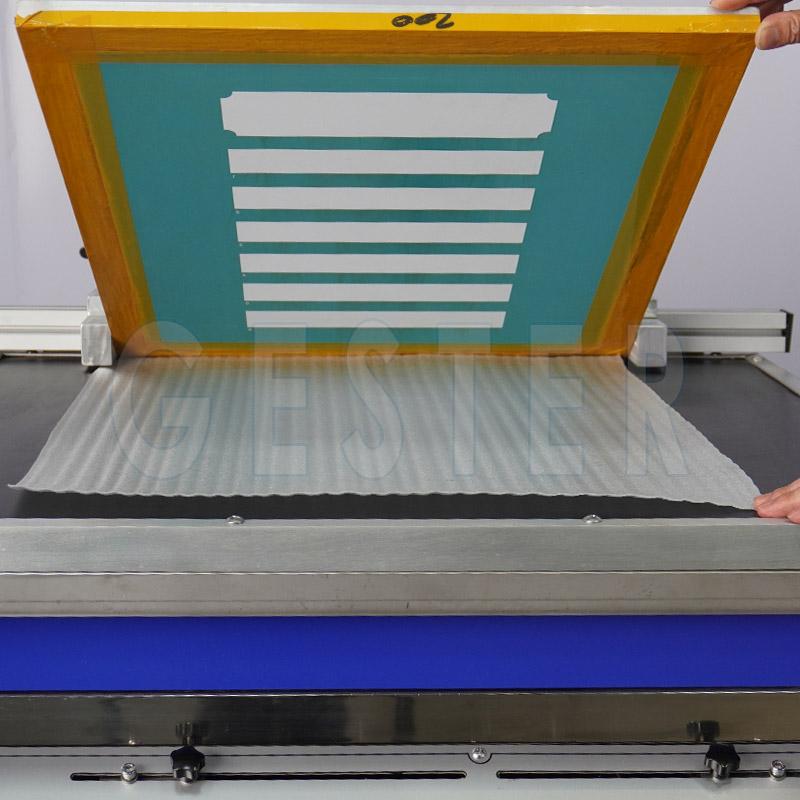

Standard accessories	1PC	640×480 Strip Printing Frame
Standard accessories	1PC	Ф10 mm Magnetic Bars
Standard accessories	1PC	Ф16mm Magnetic Bars
Standard accessories	1PC	Power Line
Optional accessories		Other Standard Printing Frame
Optional accessories		Other Dia. Magnetic Bar
