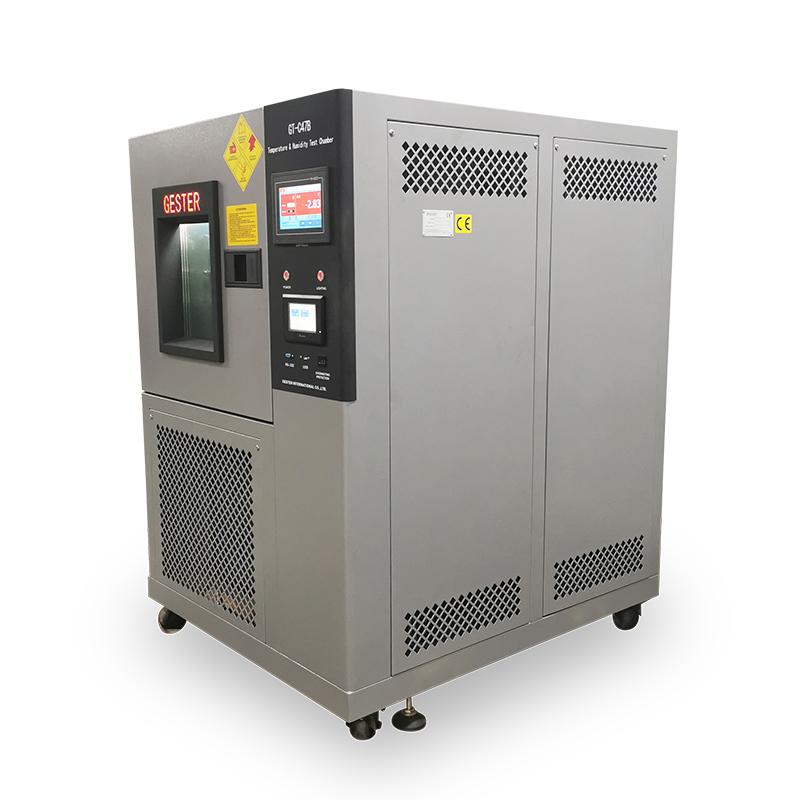

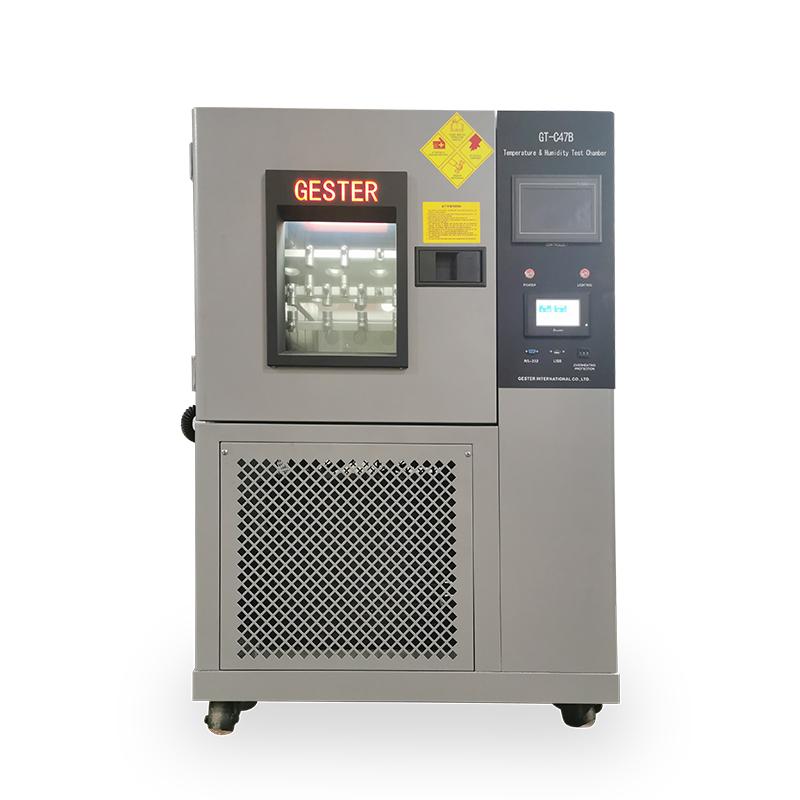

Low Temperature Schildknecht Flex Fatigue Tester GT-C47B

Low Temperature Schildknecht Flex Fatigue Tester applies to test the resistance to repeated flexing of the coated fabrics under low temperature.

  • Brand:

    GESTER
  • Item NO.:

    GT-C47B
  • Order(MOQ):

    1
  • Payment:

    TT or L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20days
  • Product Detail

Low Temperature Schildknecht Flex Fatigue Tester GT-C47B



Product Introduction

Application:

This machine applies to test the resistance to repeated flexing of the coated fabrics under low temperature. And provide a reference to improve the fabrics.



Schildknecht Flexing Tester Principle:

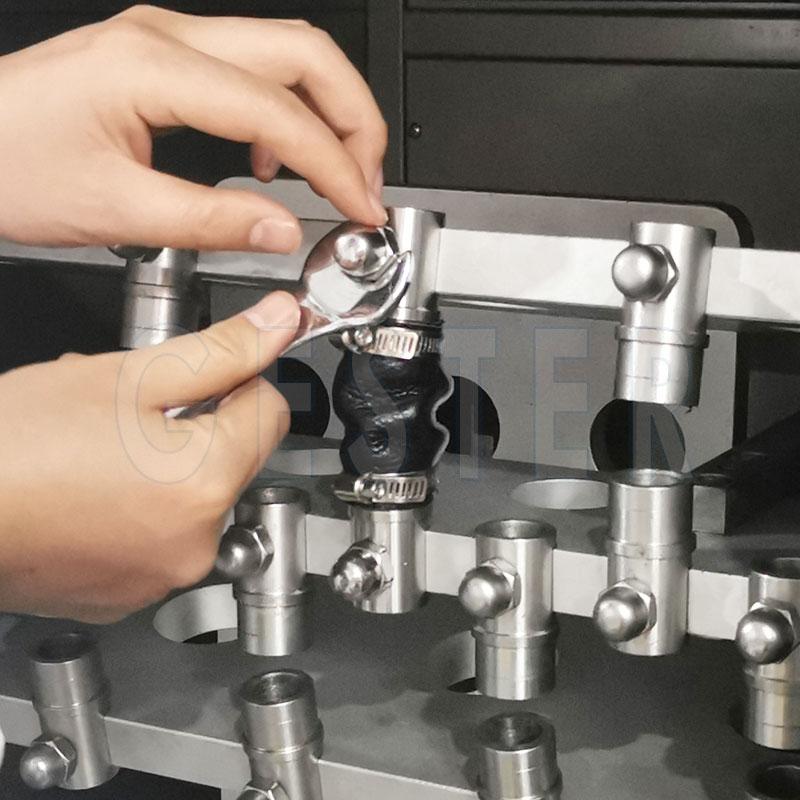

A rectangular strip of coated fabric is mounted around two opposing cylinders so that the test piece takes a cylindrical form. One of the cylinders reciprocates along its axis, causing the coated-fabric cylinder to be alternately compressed and relaxed, thus inducing folds in the test piece. This folding of the coated-fabric cylinder is continued for either a pre-set number of cycles or until damage to the test piece is apparent.



Key Specifications



Model

GT-C47B

Clamps

10Sets (stainless steel )

Rotate Speed

8.3Hz±0.4Hz (498±24r/min)

External Diameter of the Cylinder

25.4mm±0.1mm

Test Track

Arc-shaped, R460mm

Test Stroke

11.7mm±0.35mm

Lathedog Width

10mm±1mm

Inner Distance of the Lathedog

36mm±1mm

Size of the Specimen

50mm×105mm

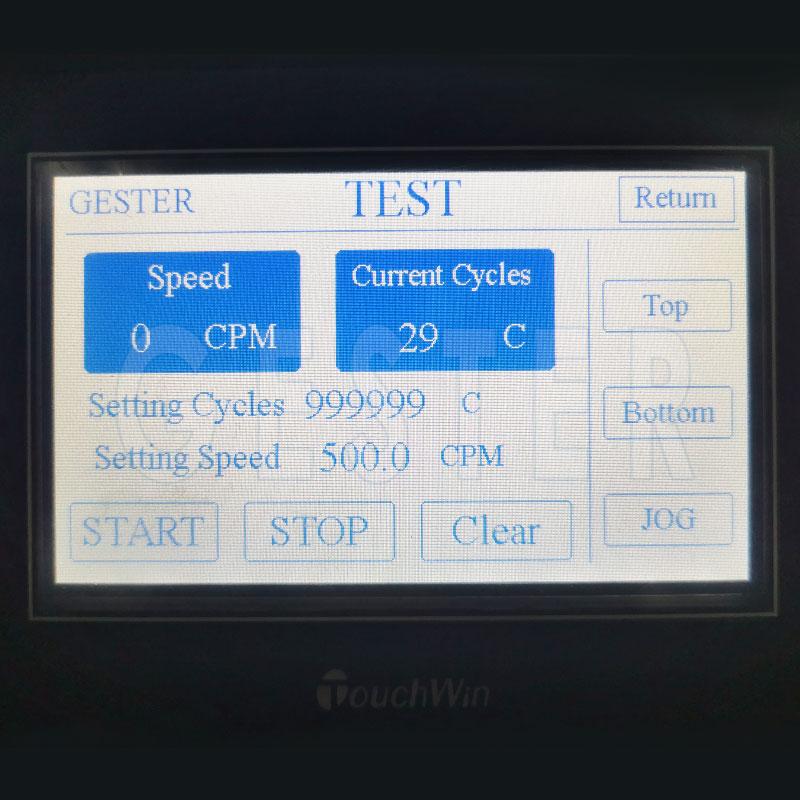

Counter

LCD, 0 - 999,999.( Adjustment)

Temperature Control System

Programmable Microprocessor Control (Touch Screen)

Temperature range

-30~100℃

Power Supply

1∮AC220V 50/60HZ

Weight

300kg

Standard

ISO 7854, BS 3424: Part 9 Method B, GB/T 12586, EN 14325



Accessories:

Standards Accessories

Lathedog

20pcs
