Electronic Thickness Tester | Textile Testing Equipment
Brand:
GESTERItem NO.:
GT-C46-2Order(MOQ):
1Payment:
L/C T/TProduct Origin:
ChinaShipping Port:
China PortLead Time：
30 DaysProduct Detail

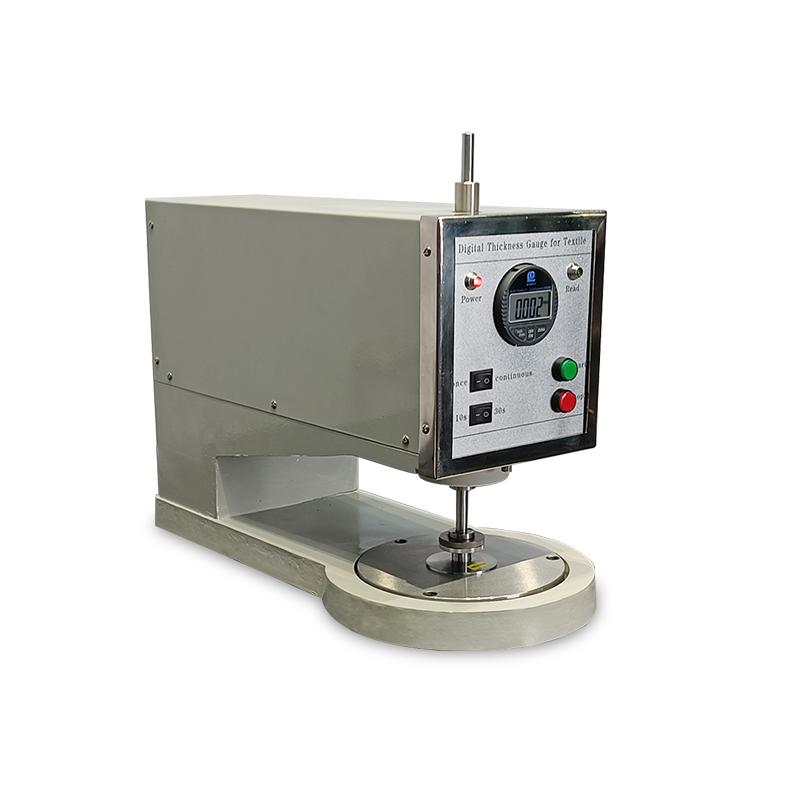

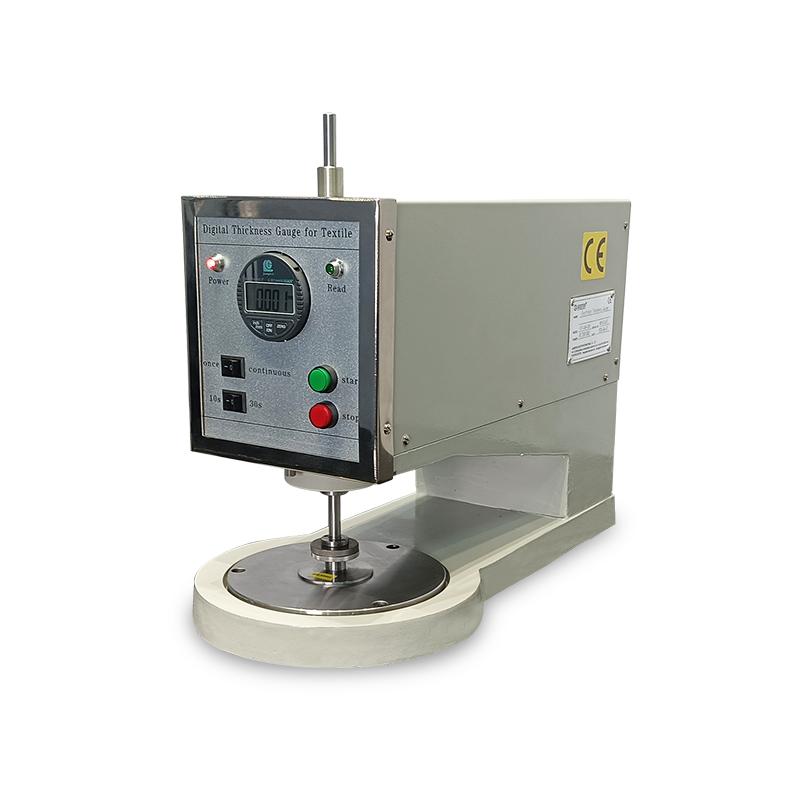

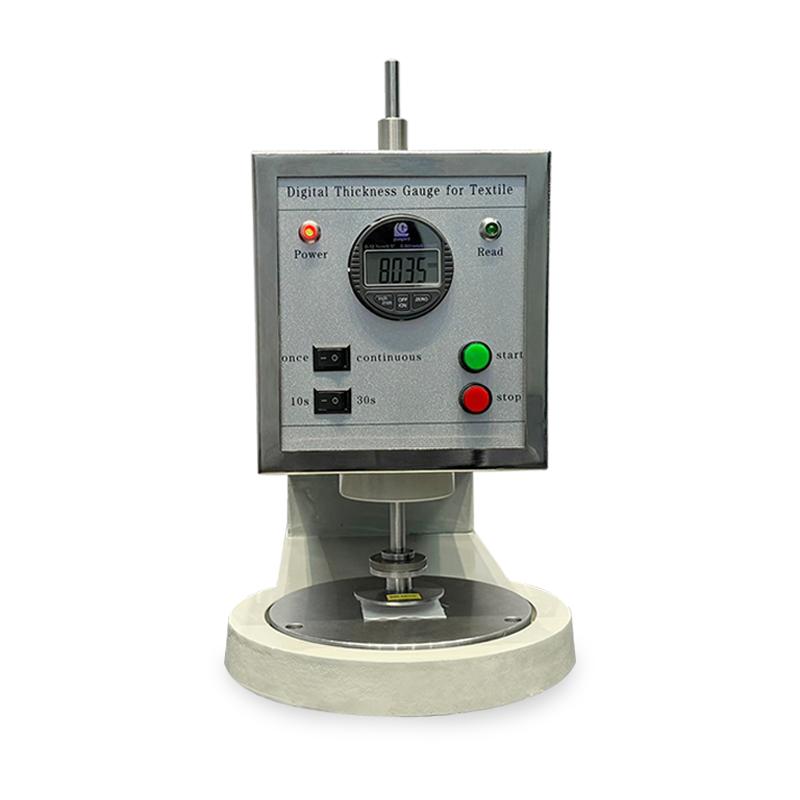

Electronic Thickness Tester for Textile Fabric GT-C46-2
|
Application: GT-C46 Thickness Gauge is used to determine of thickness of textiles and textile products, and suitable for measurement of various kind of woven, knitted fabrics and other uniform thin materials. This machine is widely used in cotton textile, knitted textile, coverlet, handkerchief, and paper making industries.Fabric thickness tester Standards: ISO 5084, ISO 9073.2, ISO 2589, ASTM D1777 |

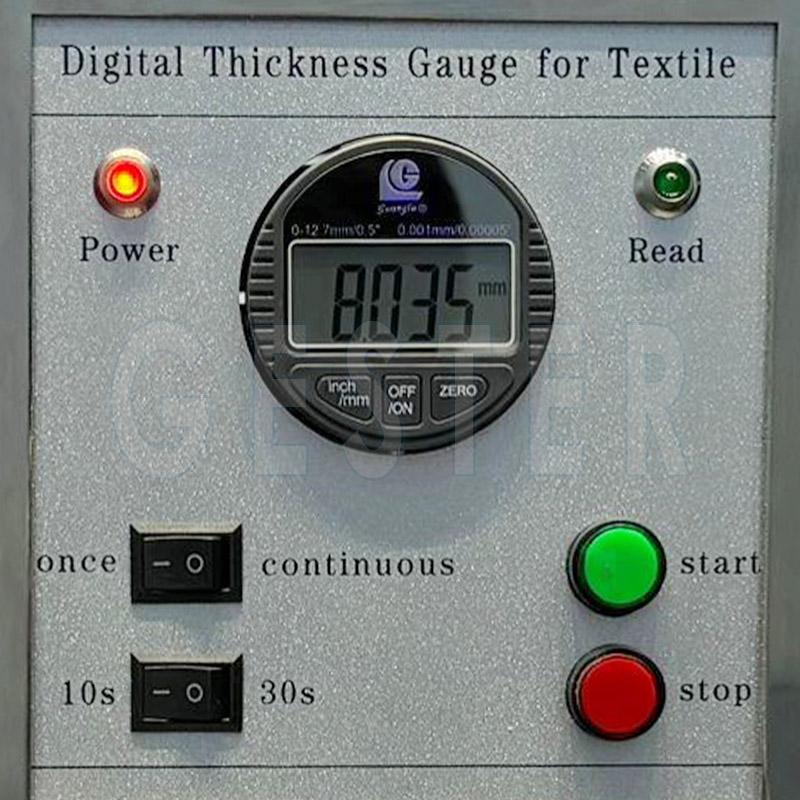

1.Digital display with accuracy of 0.01mm or 0.001mm.
2.Textile Thickness Gauge Can customized different presser and weights to meet the requirements of various standards.
|
Model |
GT-C46-2A |
GT-C46-2B |
|
|
Range of Thickness |
0-10mm |
||
|
Division Value |
0.01mm |
0.001mm |
|
|
ISO5084 |
Foot Diameter |
Φ50.48mm |
|
|
Test Pressure |
0.1 kpa and 1 kpa ( 20.4g and 204g) |
||
|
ISO9073-2 |

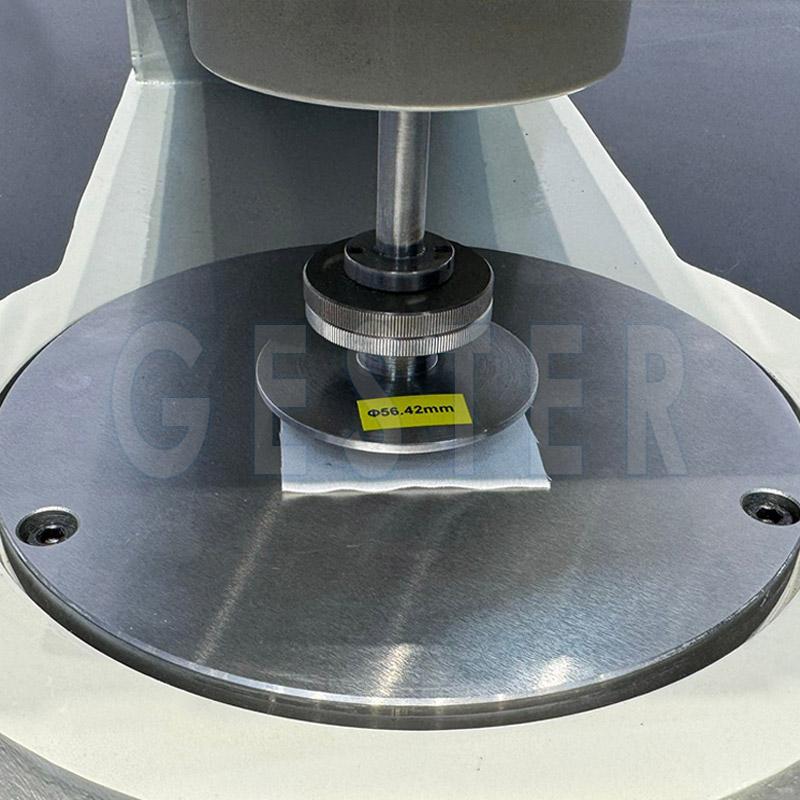

Foot Diameter |
Φ56.42mm |
|
|
Test Pressure |
0.1kpa and 0.5kpa (25.5g and 127.6g) |
||
|
ISO2589 |
Foot Diameter |
Φ10mm |
|
|
Test Pressure |
49.1kpa (393.3g) |
||
|
ASTMD1777 Method 1,5 |
Foot Diameter |
Φ28.7mm |
|
|
Test Pressure |
0.7kpa , 4.14kpa and 7.58kpa (46.2g,273.2g and 500.1g) |
||
|
ASTMD1777 Method 2 |
Foot Diameter |
Φ9.5mm |
|
|
Test Pressure |
23.4kpa(169.2g) |
||
|
ASTMD1777 Method 3 |
Foot Diameter |
Φ6.3mm |
|
|
Test Pressure |
172kpa(546.8g) |
||
|
ASTMD1777 Method 4 |
Foot Diameter |
Φ57.2mm |
|
|
Test Pressure |
18.9kpa(4944.7g) |
||
|
Pressing Duration |
5s/ 10s/ 30s, can be switched |
||
|
Power Supply |
AC220V±10% 50Hz |
||
|
Dimensions (L×W×H) |
450×216×305mm |
||
|
Weight |
25kg |
||
Accessories
|
ISO 5084 and ISO9073-2 Accessories |
1Set |
|
|
Power Line |
1pc |
|
|
Other Standard Pressure and Weights |
|
Optional |
