products

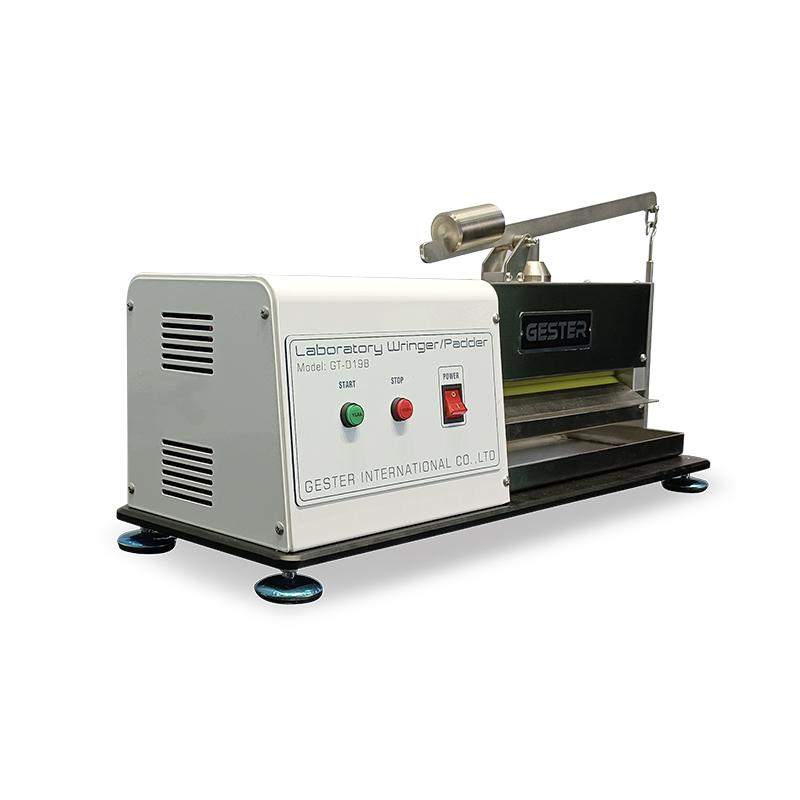

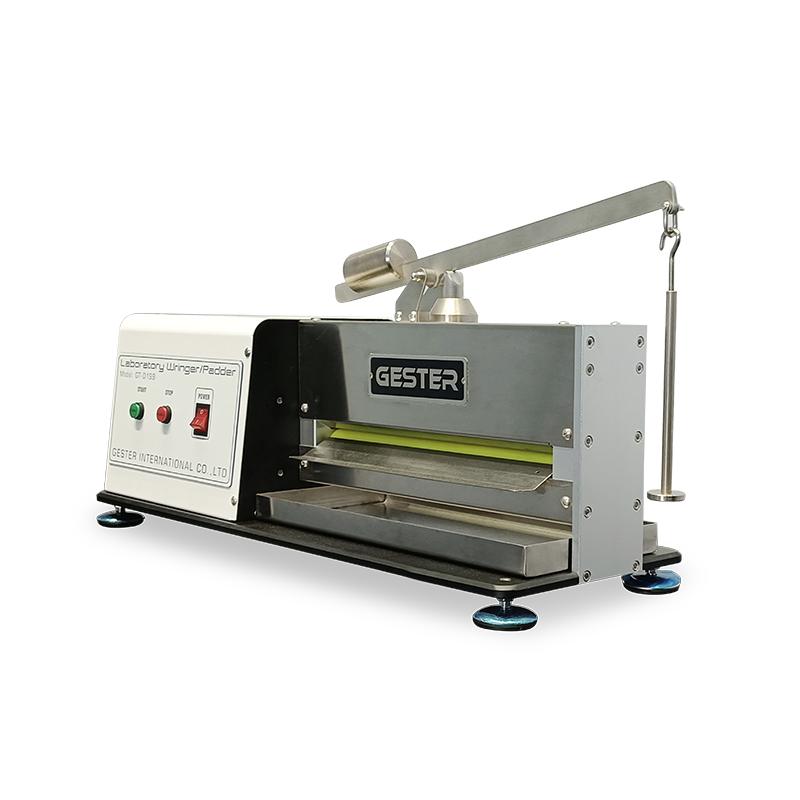

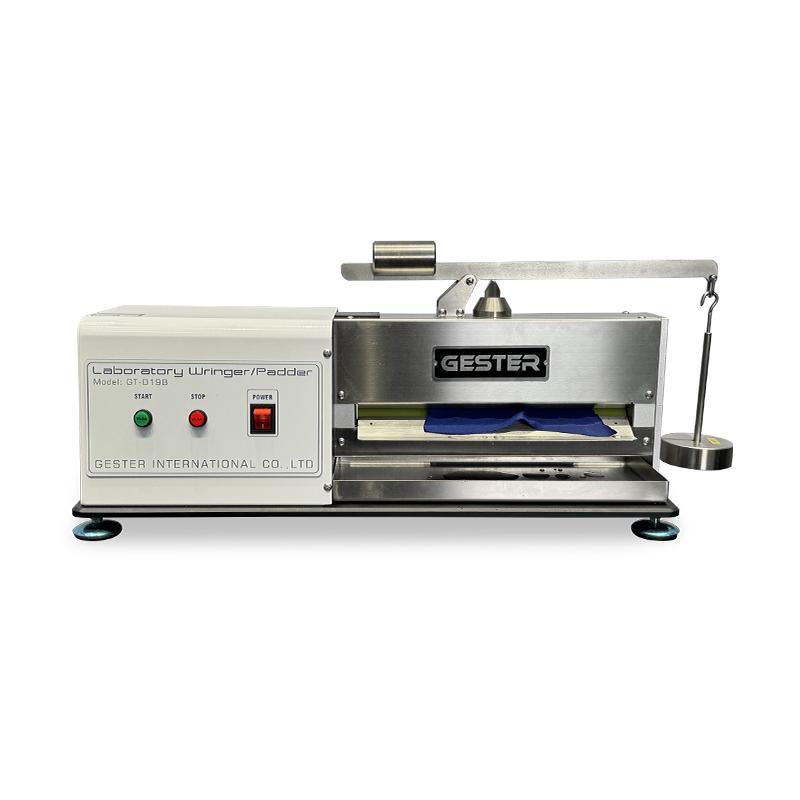

Laboratory Wringer Padder GT-D19B

Laboratory Wringer Padder is used to evenly squeeze or extract excess liquid from fabric.

  • Brand:

    GESTER
  • Item NO.:

    GT-D19B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

Laboratory Wringer Padder GT-D19B


Product Introduction

Application:

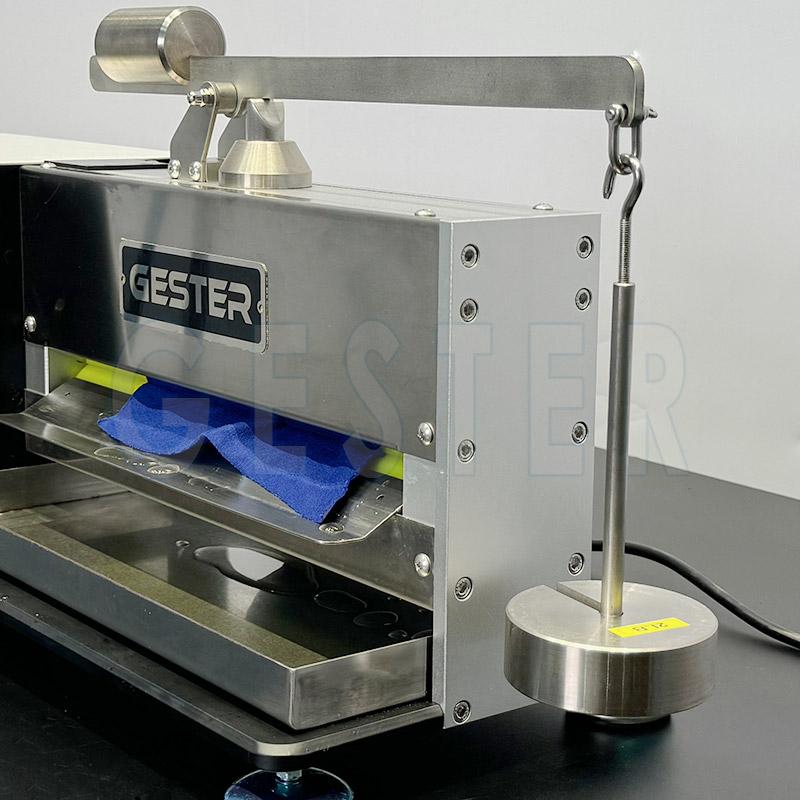

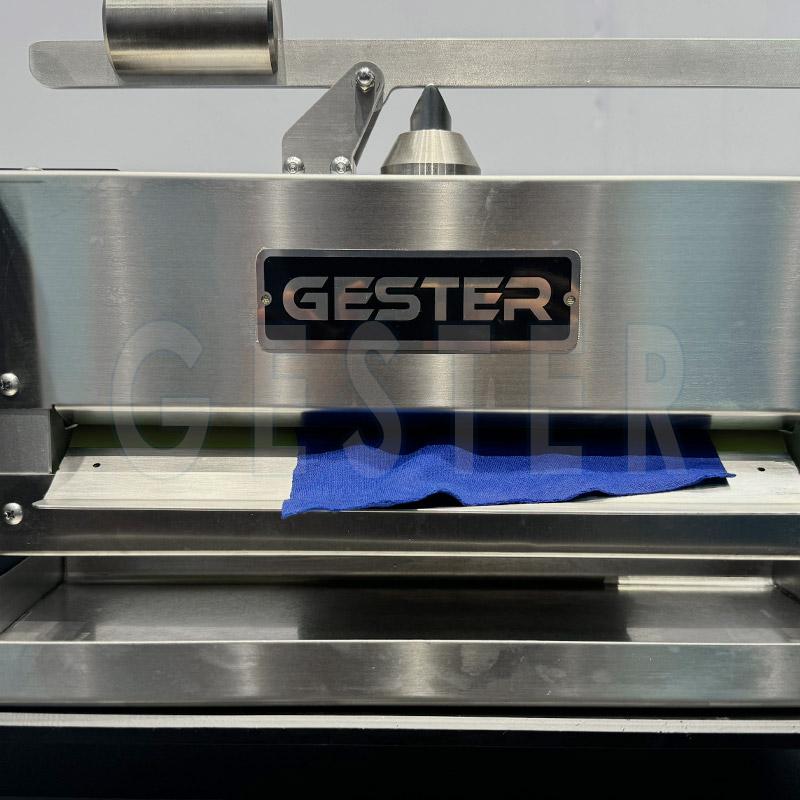

Laboratory Wringer Padder is used to evenly squeeze or extract excess liquid from fabric.Testing Principle: apply a certain load on the cylinder, open the machine and make the cylinder rotate, put the specimen between the two cylinder, the two cylinders drive the specimen and squeeze out the extra water.


padding mangle machine standards:
ASTMD 394 230-220



Feature

1.Driven by the motor, Roller runs at a constant speed and can evenly squeeze or extract excess liquid.

2.Pressure can be adjusted flexibly by adding or reducing the load weights.
3.Padding mangle equipped with detachable water trough.

4.Lab padder machine easy to operate and more effective.



Key Specifications



Model

GT-D19B

Working width

12" (300mm)

Neoprene roller

2 1/8" (54mm) diameter

Drive speed

25mm (1") per second

Static load

Min:5Lb, Max:105Lb

Power supply

1∮ AC 220V 50/60Hz

Dimensions

700 x 34 x 20cm ( L x W x H )

Weight

40kg

Accessories

Standard accessories

4pcs

Load weights   2Lb

2pcs

Load weights   1Lb

1pc

Load weights   0.5Lb

1pc

Power line




Application Industry

All kinds of materials can be tested on the Laboratory Wringer/Padder
