Lab Bobbin Yarn Dyeing Machine GT-D40

This Yarn Dyeing Machine is special used for dyeing cotton ,yarn, polyester yarn, wool yarn ,etc.

  • Brand:

    GESTER
  • Item NO.:

    GT-D40
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

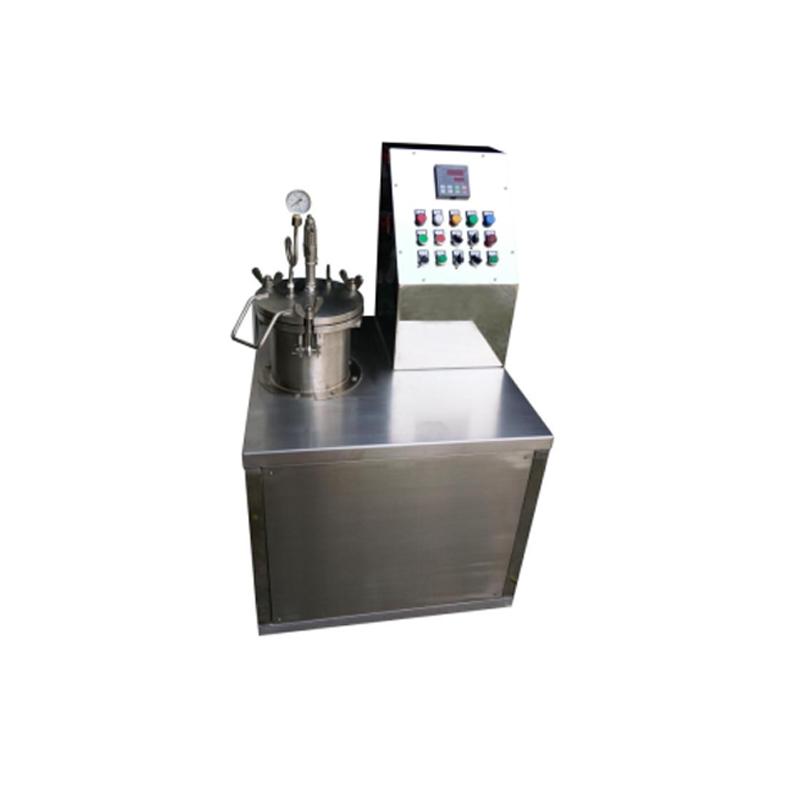

Lab Bobbin Yarn Dyeing Machine GT-D40


Product Introduction

Application:

This Yarn Dyeing Machine is teaching and laboratory machine used to the pre-treatment, dyeing, bleaching and other processes of bobbin yarn.

Feature



1. Dye cylinder body material: SUS316 stainless steel.
2. High temperature resistance, corrosion resistance, acid and alkali resistance sealing ring.
3. Ten processes can be programmed and stored. Ten steps are programmable for each process.
4. The heating rate and holding time can be programmed.



Key Specifications



Model

GT-D40

Working Position

1

Cooling Method

Water-cooled

Heating Method

Steam heating or electric heating

Dye Tank Load

5kg, 3kg, 2kg

Dye Solution Circulation Mode

Positive and negative circulation; Pneumatic reversing;

Max. Working Temperature

140℃

Max. Pressure

0.45Mpa

Heating Up Time

20℃-130℃,

About 35 minutes when the steam pressure is 0.6Mpa

Cooling Time

130℃-80℃,

About 20 minutes when the cooling water pressure is 0.3Mpa

Power Supply

3 phase 380V 50Hz

Dimensions

800×800×1400mm



Accessories

Standard accessories

1Set

Control electric box

1Set

Pressure gauge and relief valve

1Set

Transmission frame and base

1Set

Pneumatic inlet valve and drainage valve


Application Industry

All kinds of materials can be tested on the Lab Bobbin Yarn Dyeing Machine
