Laboratory Padder for Textile GT-D19

Laboratory Padder is suitable as dyeing and finishing padding mangle.

  • Brand:

    GESTER
  • Item NO.:

    GT-D19
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    China Port
  • Lead Time:

    30 Days
  • Product Detail

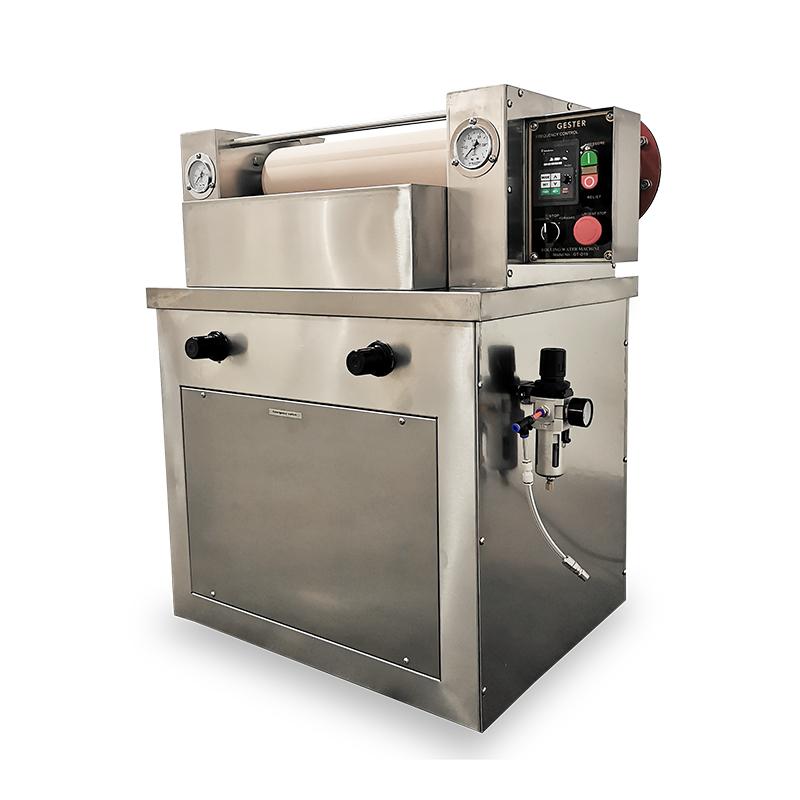

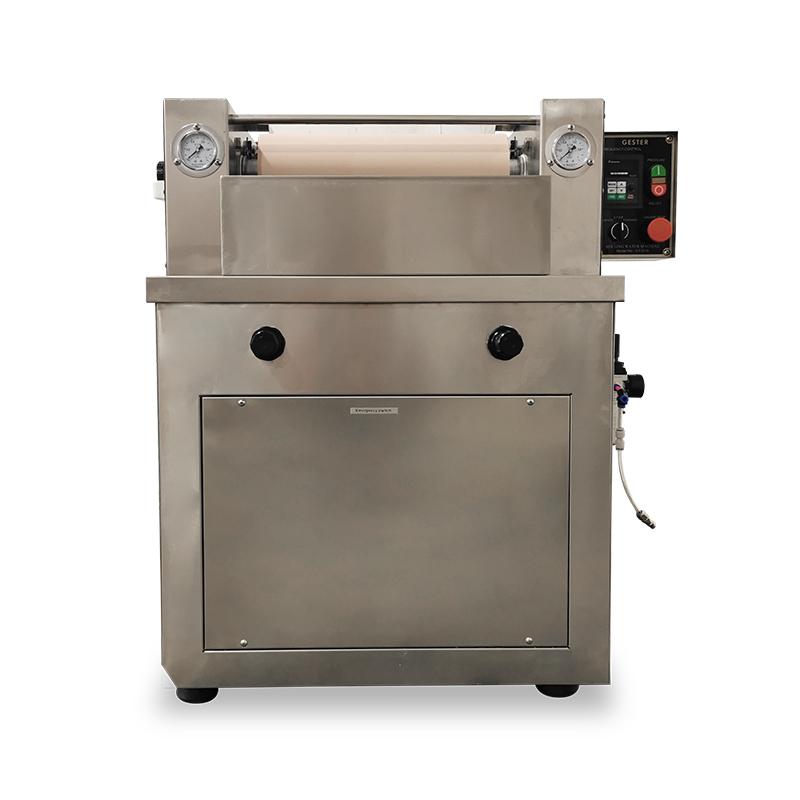

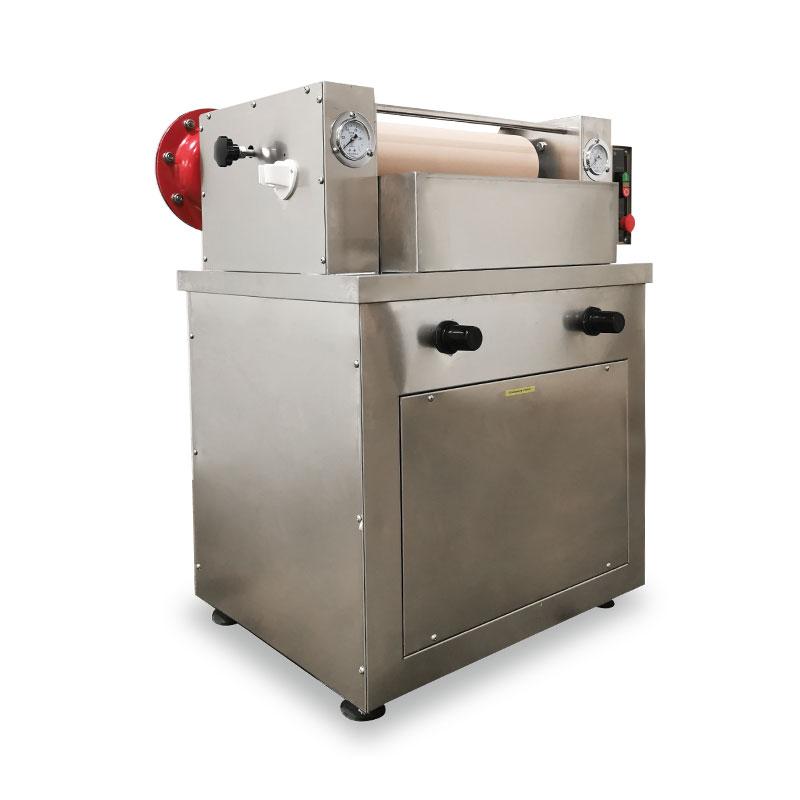

Laboratory Padder for Textile GT-D19




Product Introduction

Application:

Laboratory Padder is suitable as dyeing and finishing padding mangle. The pressure transmission can be applied by means of pneumatic cylinder. It’s apply to pure cotton, T/C and other chemical fiber fabric.


Feature

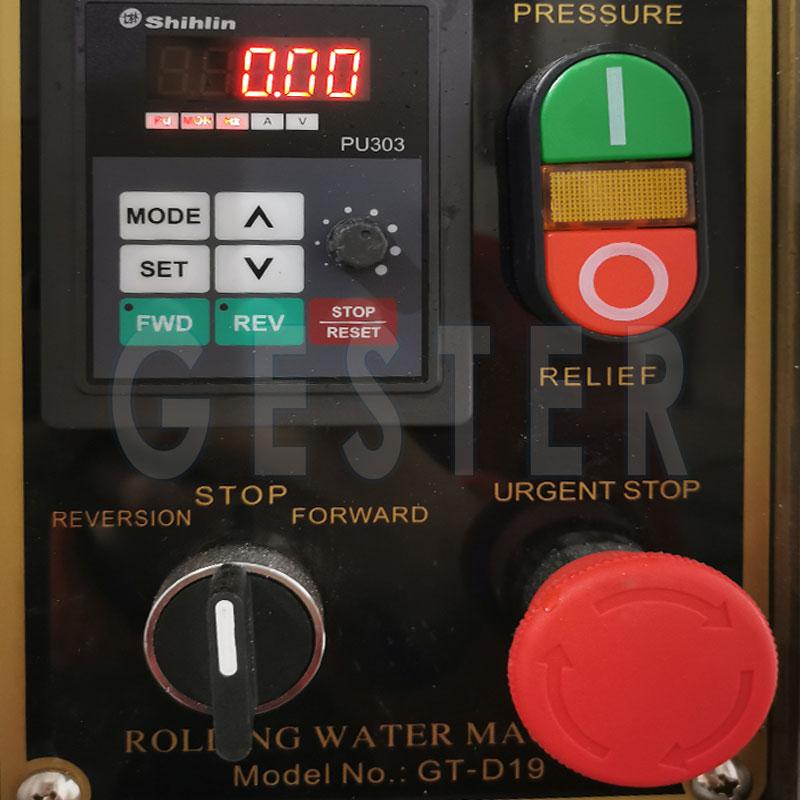

1. Padding Mangle Machine: Cloth speed controlled by inverter from 0-10m/min.

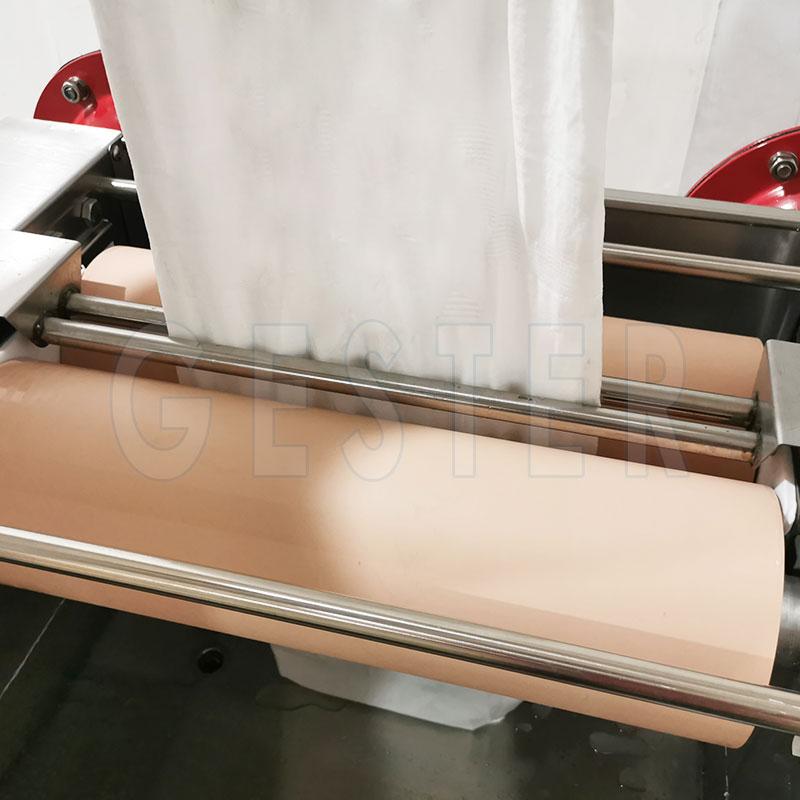

2. NBR rubber is applied for coating of roller, excellent erode-resistance, long life-time.
3. Two separate disc-shaped pneumatic cylinders control each end of roller to keep uniform pressure for whole rollers.
4. Padding Mangle Machine: Brushed stainless steel surface, easy to clean and good appearance.

5. Removable liquor trough and spray head wash-down facility, free standing.
6. Laboratory standard compressed.


Laboratory Padder Key Specifications


Model

GT-D19-1

GT-D19-2

Rollers position

Vertical

Horizontal

Rollers width

420mm

Rollers diameter

130mm

Rubbers hardness

70 degree shore

Cloth speed

0-10m/min

Standard pressure required

0.6MPa

Retained dyestuff ratio

40-80%

Power supply

1∮AC 220V 50/60HZ

Dimensions ( L x W x H )

840 x 680 x 1450mm

840 x 740 x 1100mm

Weight

140kg


   Accessories

Standard accessories

1pc

Spray head

1pc

Air blow gun

Optional accessories

Optional

Air compressor


Application Industry

All kinds of materials can be tested on the Laboratory Padder for Textile

Laboratory Padder for Textile
