Fabric Pick Counter GT-C140

Automatic Pick Counter
  • Brand:

    GESTER
  • Item NO.:

    GT-C140
  • Order(MOQ):

    1
  • Product Detail

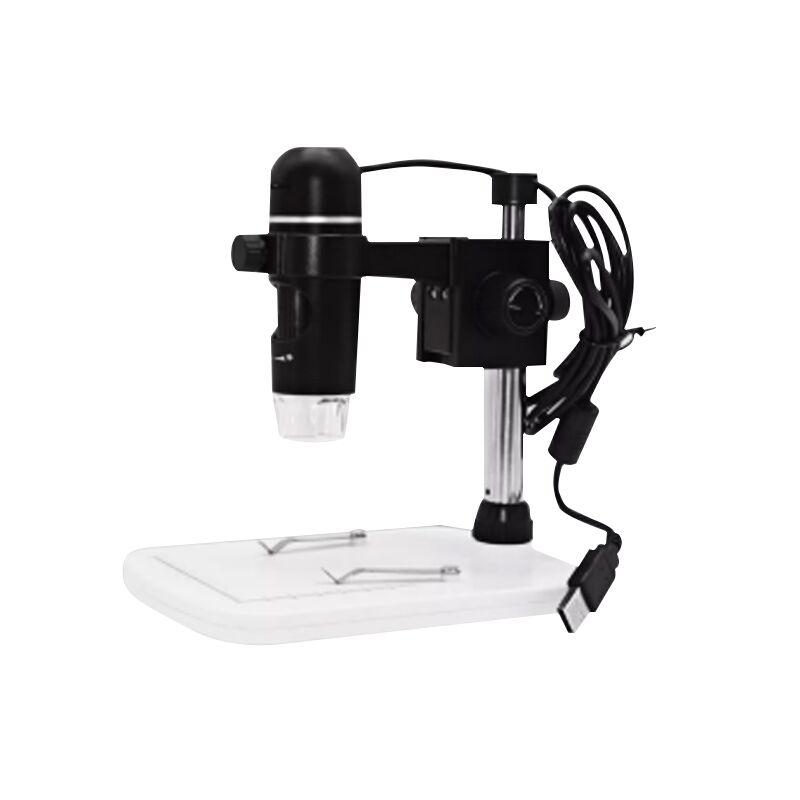

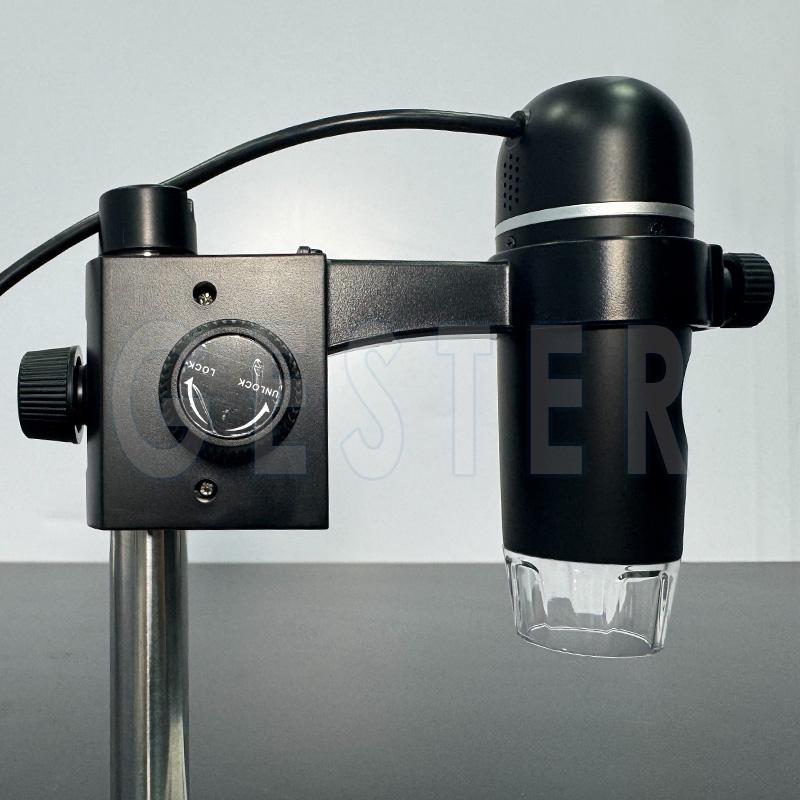

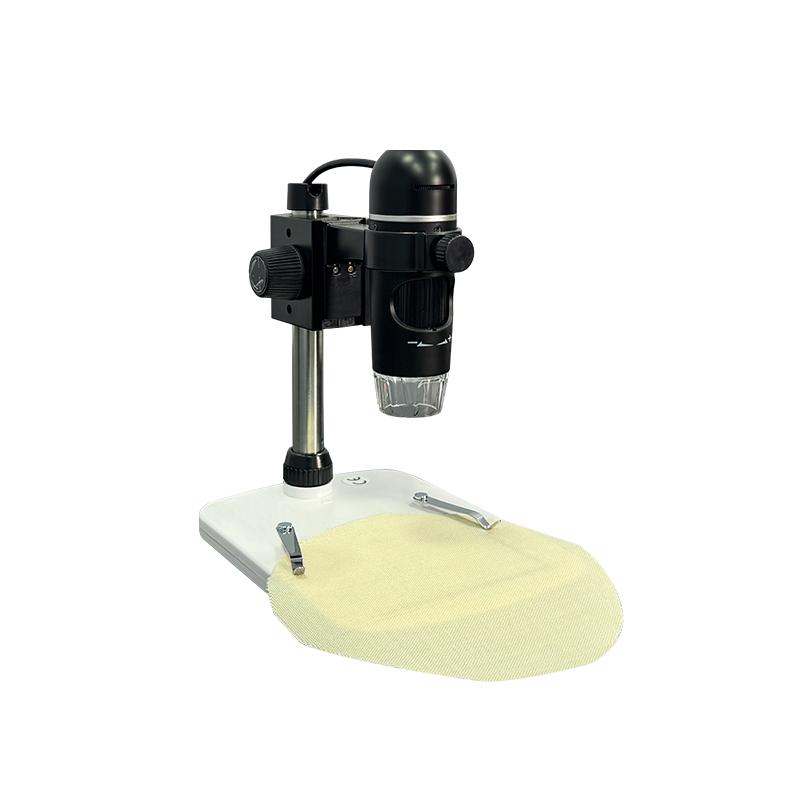

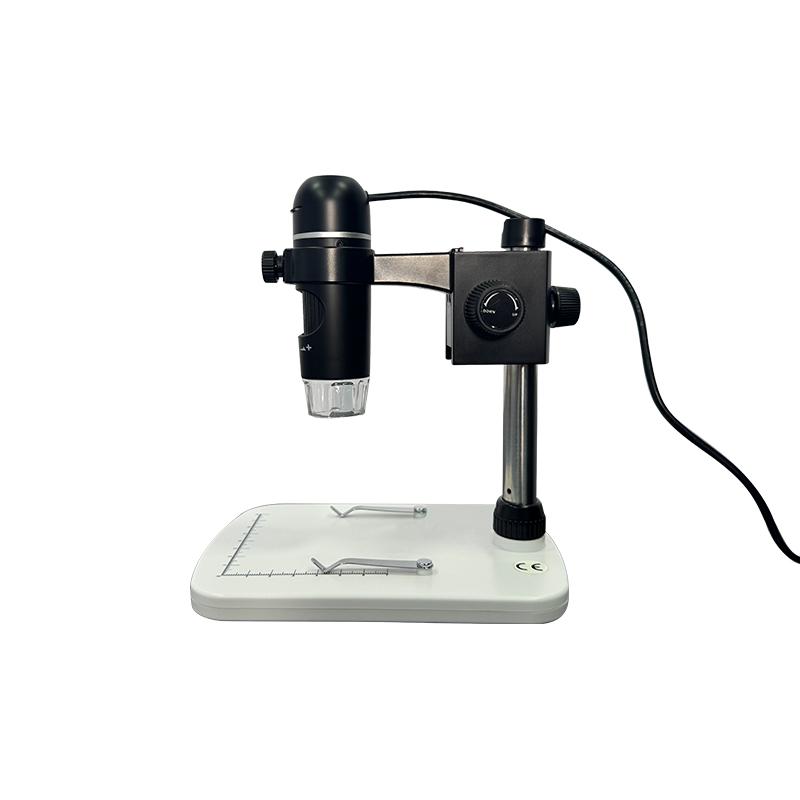

Fabric Pick Counter GT-C140



Product Introduction

Application

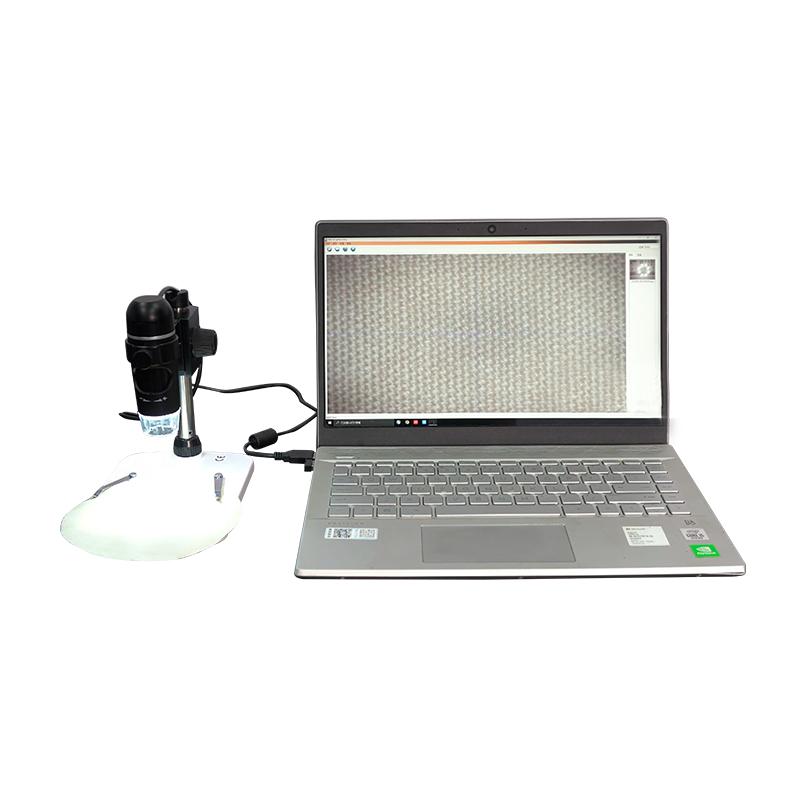

pick counter used to determine the thread density of woven fabrics and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture and magnify pictures of fabrics, the number of threads or loops on captured pictures can be counted easily on the screen of the computer by the software FABRIC-EYES.


Feature
  1. Two language version software, in Chinese or English according to the requirement of customers;
  2. The camera is portable and can be connected to the PC by the USB interface;
  3. Three measuring methods: “Auto Count”, “Positioning Count” and “Manual Count”; can be applicable for different colors and patterns fabrics;
  4. The measuring software is equipped with the function of memorizing the positioning, so it is convenient for users to measure the count on different pictures of the same fabric with the same positioning.
  5. The color of the measuring lines can be changed according to the color of fabrics in case that error is caused by the closeness of the color of measuring lines to that of fabrics.
  6. The software will automatically display a standard line on the picture to check whether the positioning is accurate or not after the manual positioning.
Digital Fabric Pick Counter Key Specifications



Model

GT-C140

Magnification of the camera

20×~400×

Specimen

Woven fabrics, knitted fabrics

Measuring direction

Vertical/Horizontal

Counting direction

Warp-wise/Weft-wise

Display mode

Thread/10mm and thread/inch

Mode of storing results

In text files
