The aim of Snap Button test is defined responsibility of garment manufacturer, make sure button, push-button and fixed accessories can fixed on garments suitable.
Brand:
GESTERItem NO.:
GT-C09-2Order(MOQ):
1Product Origin:
ChinaShipping Port:
China PortLead Time：
30 DaysProduct Detail

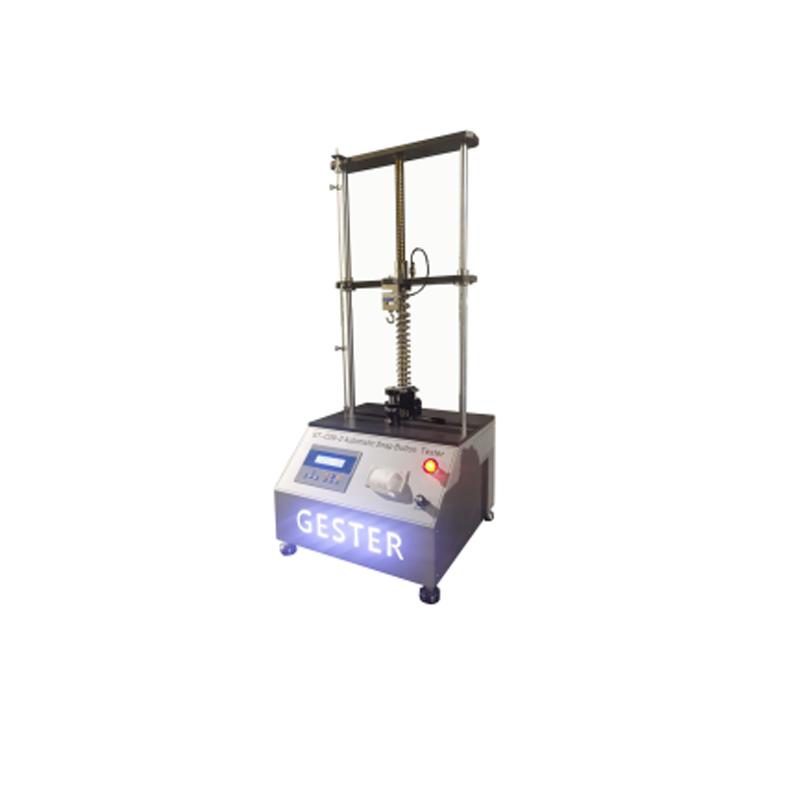

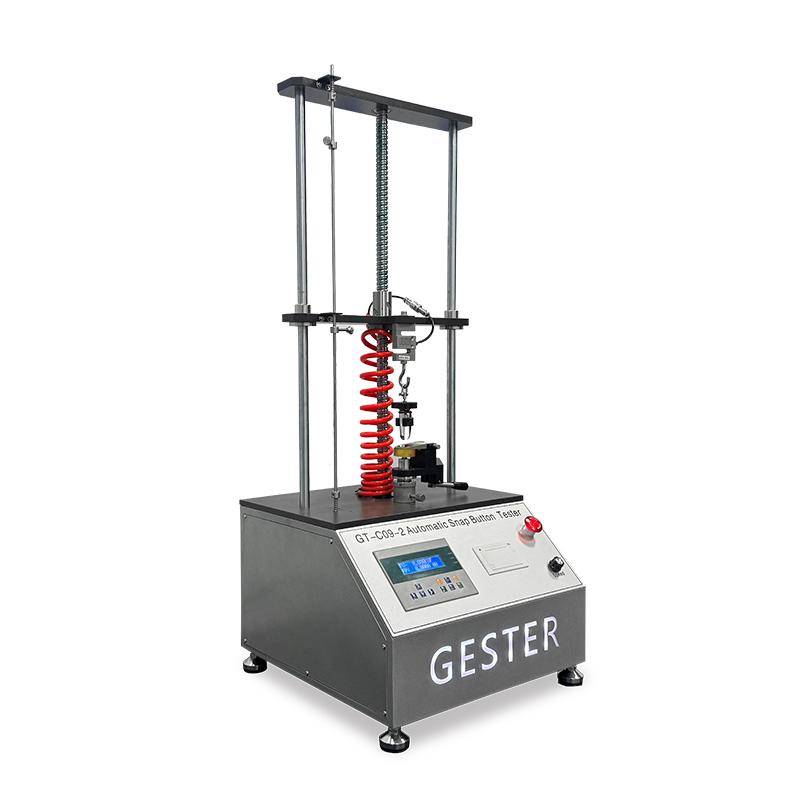

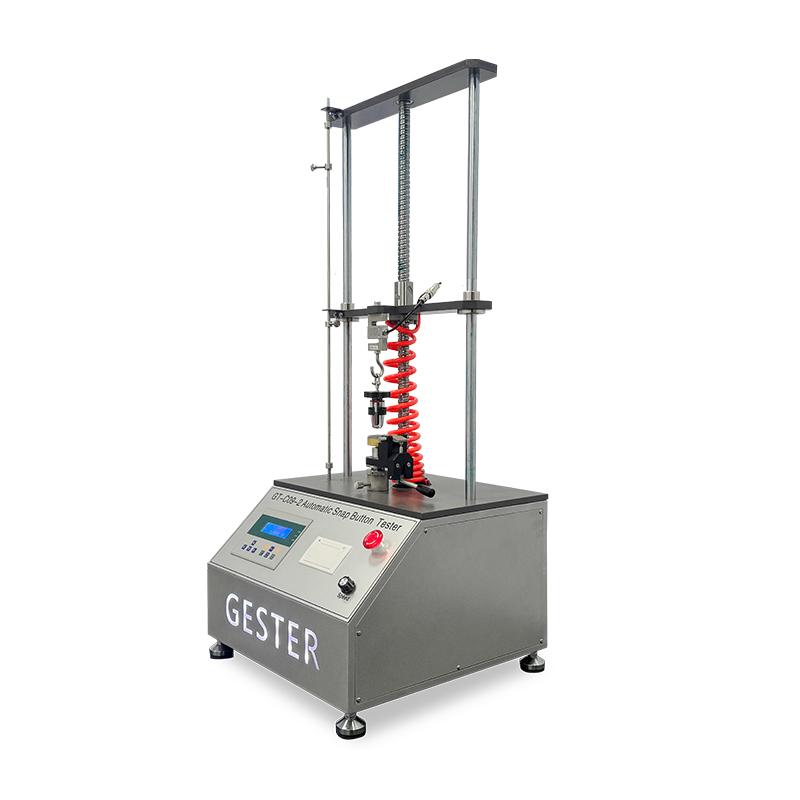

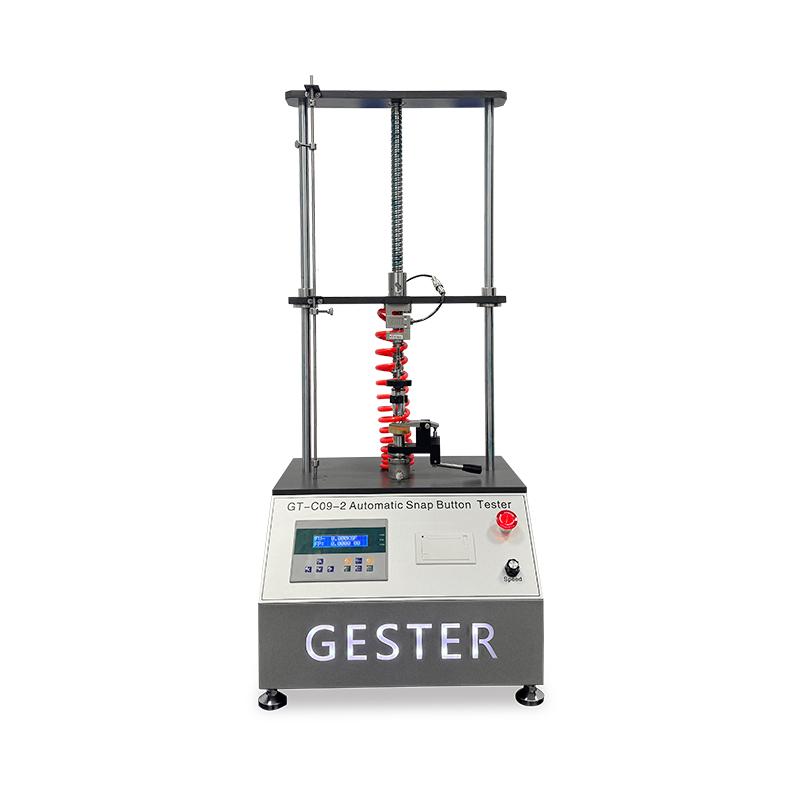

Automatic Snap Button Tester GT-C09-2
Application:
The aim of Snap Button test is defined responsibility of garment manufacturer, make sure button, push-button and fixed accessories can fixed on garments suitable. To avoid button fall off garments & risk of infant eating. So, all the button, push-button & fixed accessories on garments must pass snap button strength test. This machine can do even and vertical tensile test of all kinds of buttons on garments. Test fastness degree of button reach relative security standard or not.
16 CFR 1500.51-53 ASTM PS79-96, D4846
1. It is a simple but effective design mainly consisting of a high precision gauge.
2. It is Automatic display testing value.
3. Stop Mode: Overload stop, specimen damage automatic stop.
|
Model |
GT-C09-2 |
|
Force |
50kg |
|
Force Unit Switch |
kg,N/kg,Lb |
|
Force Resolution |
1/1000 |
|
Force Accuracy |
+/-0.2% F.S |
|
Max. Stroke |
300mm |
|
Test Speed |
25-200mm/min |
|
Display |
LCD , Automatic Display Testing Value |
|
Power Supply |
AC 220V 50/60HZ 200W |
|
Dimensions |
600x250x1050mm |
|
Weight |
35Kg |
KKy Speci
|
Standard accessories |
1pc |
Upper Universal Grip |
|
1pc |
Upper Stud Grip |
|
|
1pc |
Three Pronged Grip |
|
|
1pc |
Upper Long Nose Vise Grip |
|
|
Optional accessories |
Optional |
GT-M36 Two Pronged Clamp |
|
Optional |
GT-M39 Flat Clamp |
|
|
Optional |
GT-M49 Short - Mouth Clamp |
|
|
Optional |
GT-M50 Seam Clamp |
|
|
Optional |
GT-M53 Wide - Mouth Clamp |
|
|
Optional |
GT-MC07 ASTM Zipper Test Kit |
