De Mattia Flexing Tester GT-C40

De Mattia Flexing Tester is suitable to determine resistance to damage by flexing for rubber or plastics coated fabrics.

  • Brand:

    GESTER
  • Item NO.:

    GT-C40
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

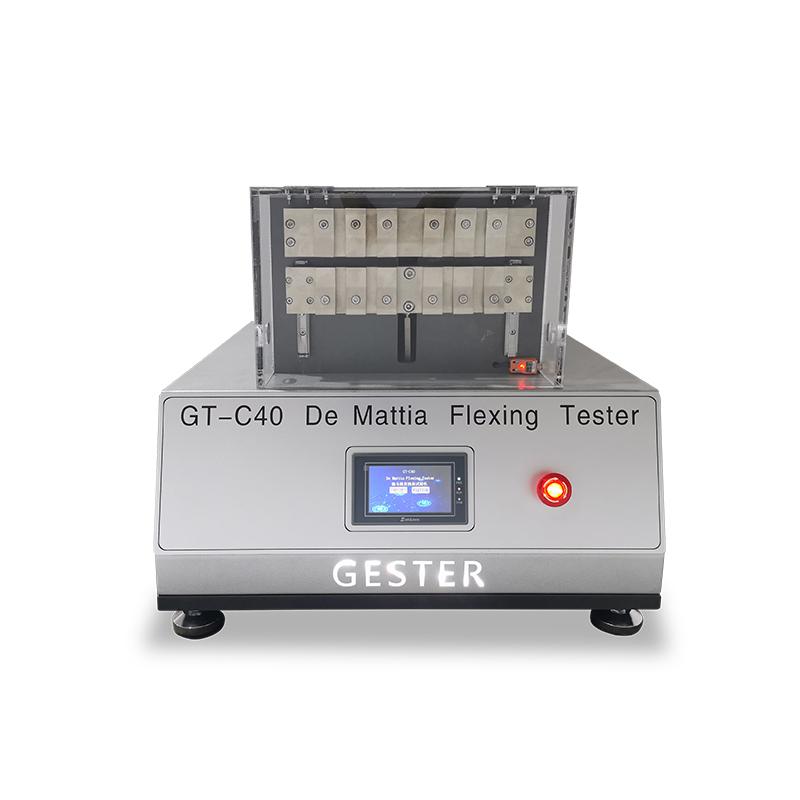

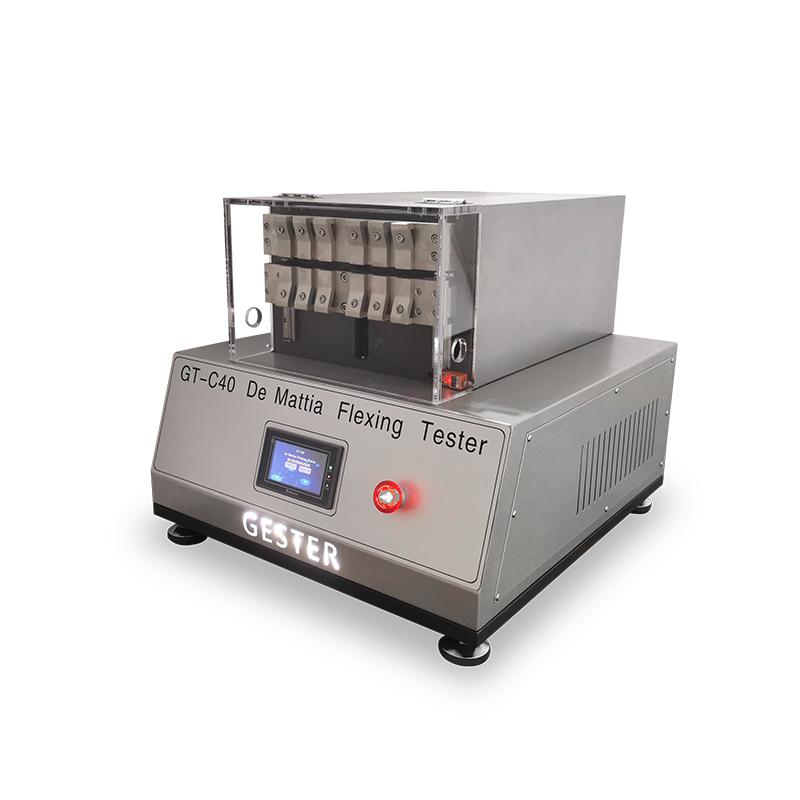

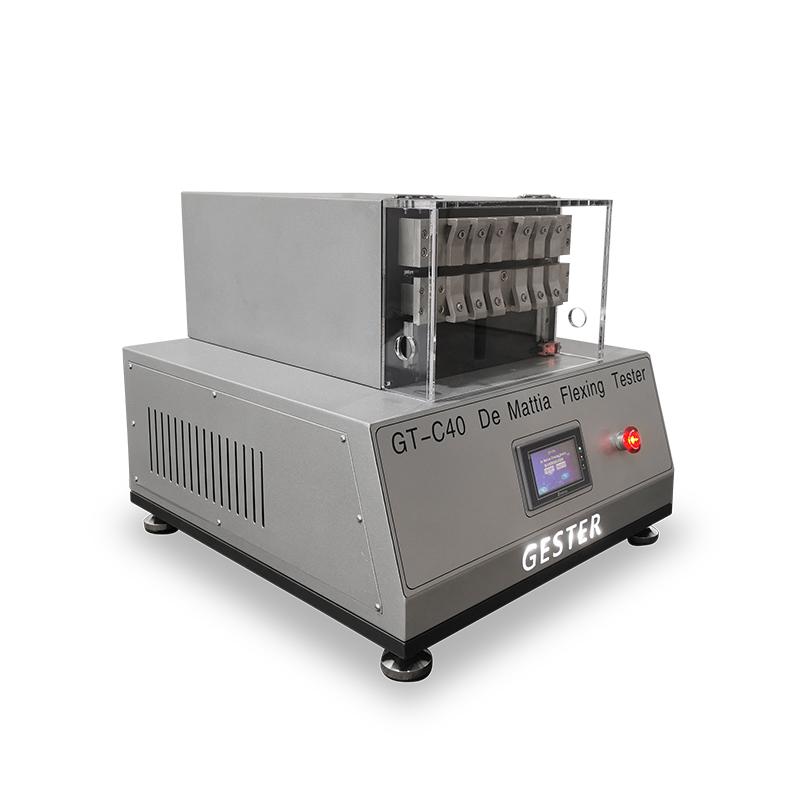

De Mattia Flexing Tester GT-C40


Product Introduction

Application:

De Mattia Flexing Tester is suitable to determine resistance to damage by flexing for rubber or plastics coated fabrics.


Standards:
ISO 7854-Method A, BS 3424:Part9 Method A, GB/T 12586 Method A

Principle

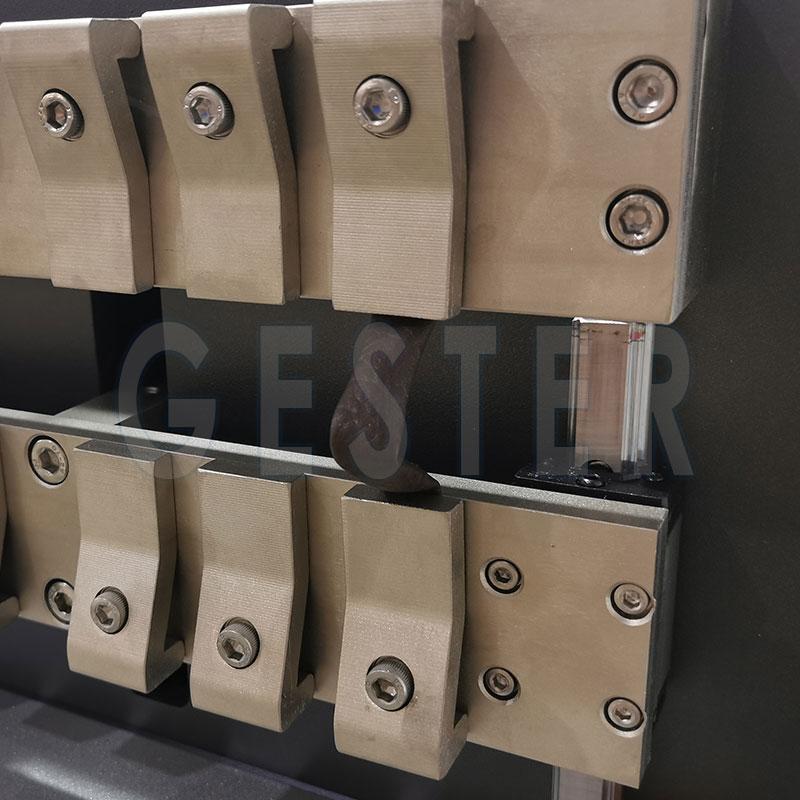

A rectangular strip of coated fabric is folded twice so that its long edges meet forming a strip measuring 125mm*12.5mm. This folded strip is mounted between a pair of flat grips, one of which reciprocates, causing the folded test piece to be sent outwards five times per second. This high-speed folding of the test piece is continued for either a pre-set number of cycles or until damage to the test piece is apparent.


Key Specifications


Model

GT-C40

Grips

6 Pairs

Rotating Speed

5.0Hz±0.2Hz300±12r/min

Grips Width

outer diameter of 22mm

Test Track

Vertical linear motion

Test Stroke

57mm+0.5mm

Grip Space

Max.70mm±1mm, Min.13mm±0.5mm

Dimension of test piece

(37.5±1)mmx125mm

Number of test piece

6 pcs, each 3 pcs in longitudinal in transverse direction

Dimensions (WxDxH)

40x36x55cm

Weight(approx.)

≈110Kg

Power Supply

1∮ AC 220V 50Hz 3A

Standards

ISO 7854-Method A, BS 3424:Part9 Method A,

GB/T 12586 Method A

Standard accessory

Sampling plate
