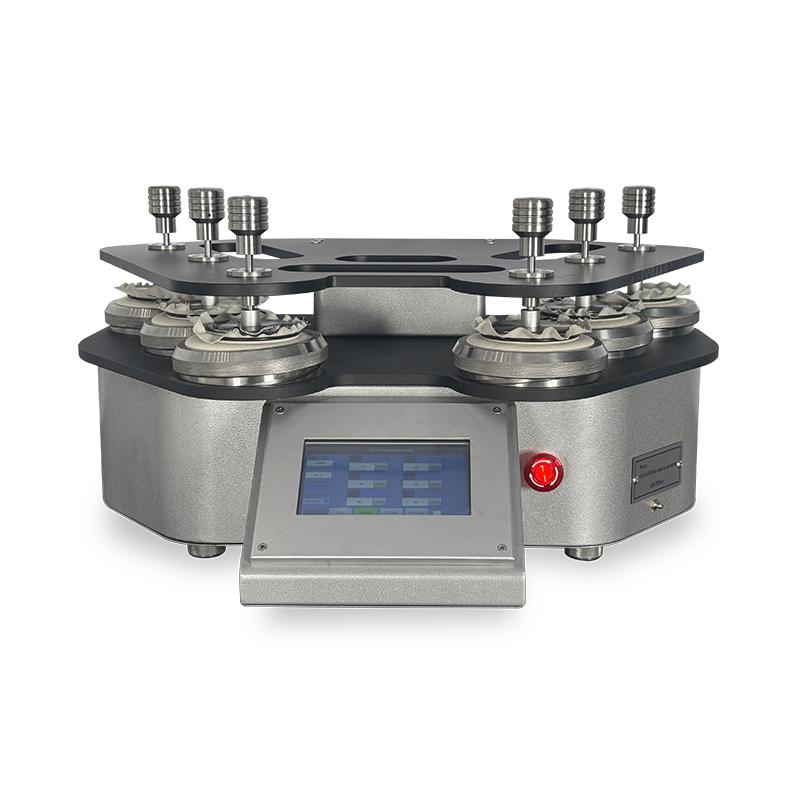

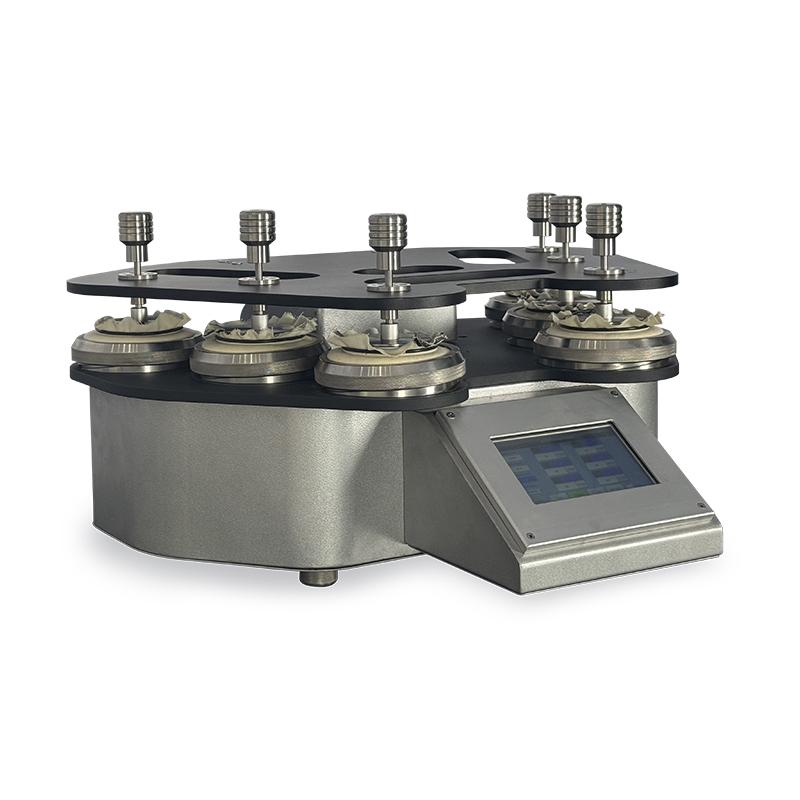

GESTER Martindale Abrasion and Pilling Tester GT-C13B

Product Introduction of martindale machine

Application of martindale abrasion tester:

The martindale abrasion and pilling tester is used to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrade at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

The upgraded Martindale abrasion and pilling tester features several improvements. It is driven by a dual servo system, which enhances its performance and accuracy. The tester generates a standard Lissajous figure motion trajectory.

The tester is equipped with six test modes to cater to various testing requirements. These modes include abrasion 60×60, pilling 24×24, 60-X, 60-Y, 24-X, and 24-Y. Switching between different modes is effortless, requiring only a single click without the need for hardware conversion operations.

Standards of martindale abrasion tester:

Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, CEN/TS-16611, IWS TM 112,

M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096 ( ISO17076-2 ball plate method ,optional), EN388 Section6.1, EN 13770

Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525, CEN/TS-16611

Feature of martindale tester

1.Martindale fabric abrasion test standard: Lissajous figure, straight line.

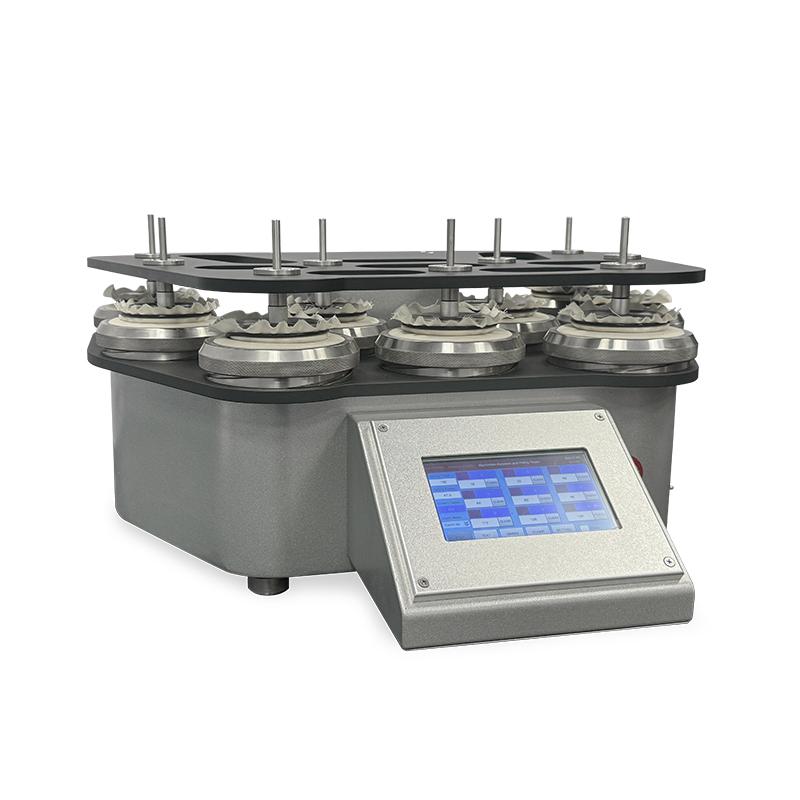

2.Martindale Abrasion and Pilling Tester Working positions: 4, 6, 8, 9 optional.
3.Counting Method: 1) count up. 2) count down.

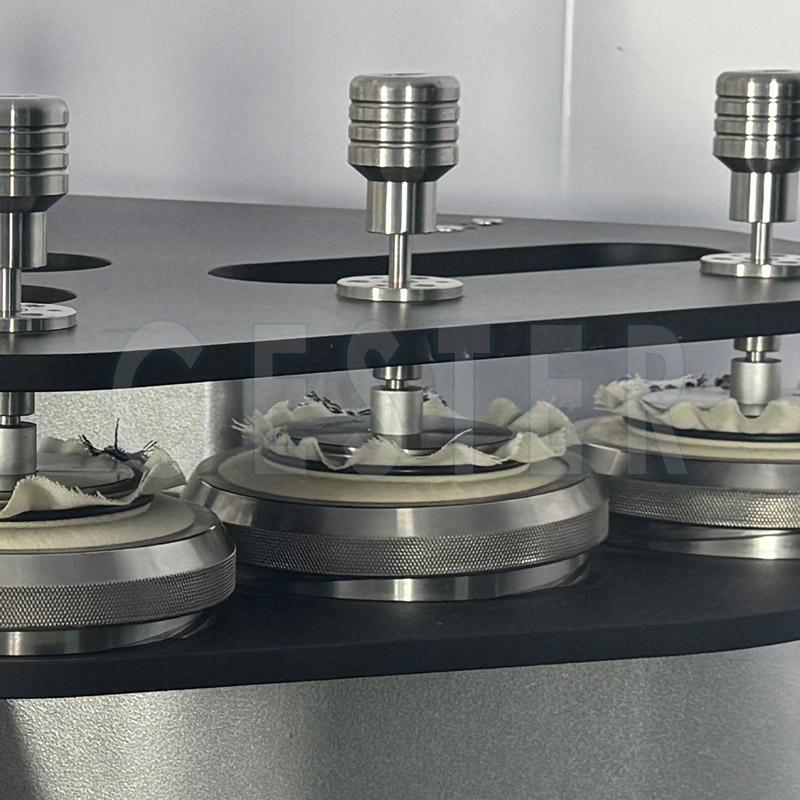

4.Instead of the structure supported by steel balls, new and upgraded design avoids the risk of uneven cover plate caused by ball wear. The cover plate can be folded and turned up to facilitate sample loading and test results.
5.Standard sample holders with 9 and 12kpa weights included.

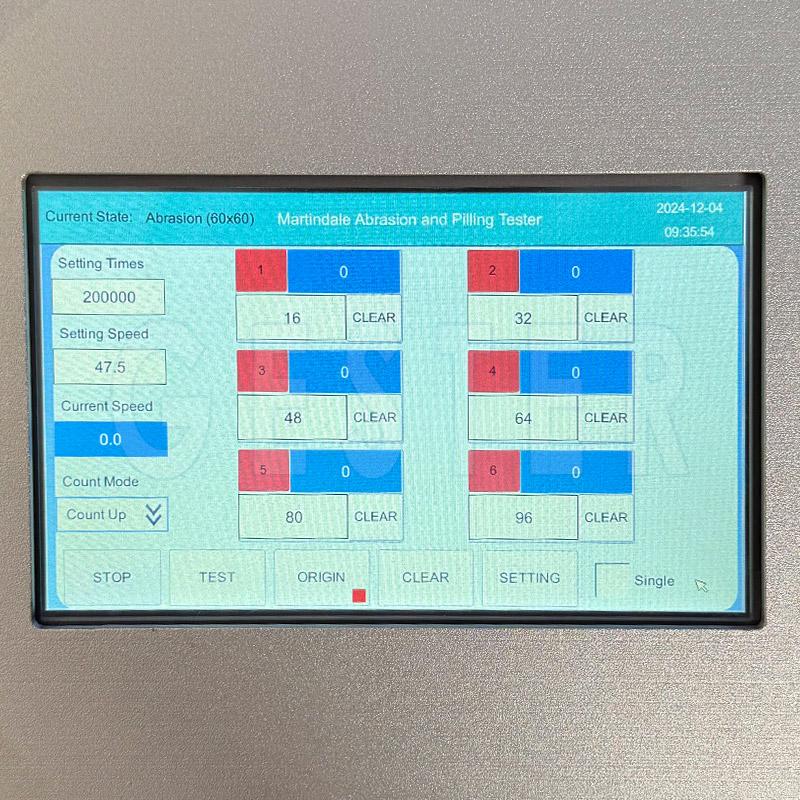

6.Martindale abrasion resistance test, PLC, 7 inches color touch screen, Chinese and English operation interface.
7.Weights and key components are made up by stainless steel which is well-formed and durable in use.

8. To prevent distortion, the top motion plate was special made up by 316 aluminum alloy.

9. The added lubricating oil injection hole is convenient for customers to maintain and ensure that the machine can run stably for a long time.

Key Specifications of Martindale Tester

Model		GT-C13B-4	GT-C13B-6		GT-C13B-8			GT-C13B-9
Working positions		4	6		8			9
Control mode		PLC control and touch screen display
Counter range		0~999999 times
Test pressure	Abrasion test	A)Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass: (795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
		A)Specimen holder: (198 ±2)g B) Smaller loading piece: (397±5)g C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)
	Pilling test	A) Stainless steel loading piece: (155 ± 1) g B) Specimen holder: (260 ± 1)g C) The sum mass: (415± 2)g
Holder effective diameter		A) Abrasion Holder: Φ(28.65 ± 0.05)mm
		B) Pilling Holder: Φ(90 ± 0.10)mm
Rotational speed		47.5± 2.5r/min
Pressing weight		Mass: (2.5 ± 0.5) kg
		Diameter: Φ(120 ± 10) mm
Power supply		AC220V 50/60Hz
Dimensions(L x W x H)		60×55×41cm		88×61×41cm		90×62×41cm	90×62×41cm
Weight		75kg		130kg		145kg	150kg

Accessories A:

Abrasion weight and holder	1set
Pilling weight and holder	1set
Standard abradents fabric	2 pcs for each head
Standard backing foam 38mm	box of 60pcs

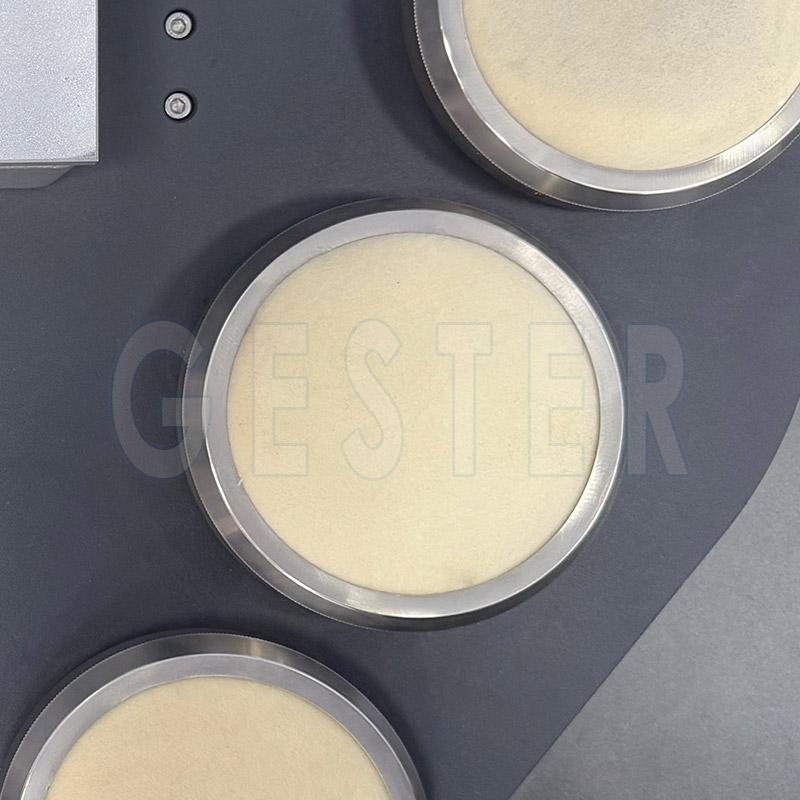

Standard woven felt discs 140mm	2 pcs for each head
Standard woven felt discs 90mm	2 pcs for each head
Photographs (copy one)	1set
Sample cutting template(Φ38mm , Φ90mm, Φ140mm)	1pc for each size
Pressing weight	1pc
Auxiliary device for specimen mounting	1pc
Steel ball	3pcs
Power line	1pc

Accessories B:

EMPA Photographic standards for pilling test (3 x 4 knitted)	Optional
EMPA Photographic standards for pilling test (3 x 4 woven)	Optional
SM 50 Photographs for pilling test IWS + ASTM. 4 Sets 1-5 (Plain, Twill A, Twill B, Blanket)	Optional
Standard abradents fabric	Optional
Standard backing foam Φ38mm	Optional
Standard woven felt Discs 140mm	Optional
Standard woven felt Discs 90mm	Optional
GT-C48 Pneumatic Sample Cutter	Optional
Ball plate for ISO17076-2	Optional
CEN/TS16611 Test kits	Optional
EN 13770 Method A Socks Abrasion Holder	Optional
EN 388 Clamping Ring for Thick Material	Optional
