This Bean Bag Snag Tester is to test the snagging resistance of knitted fabric.
Brand:
GESTERItem NO.:
GT-C50Order(MOQ):
1Payment:
T/T, L/CShipping Port:
China PortLead Time：
10-30 DaysProduct Detail

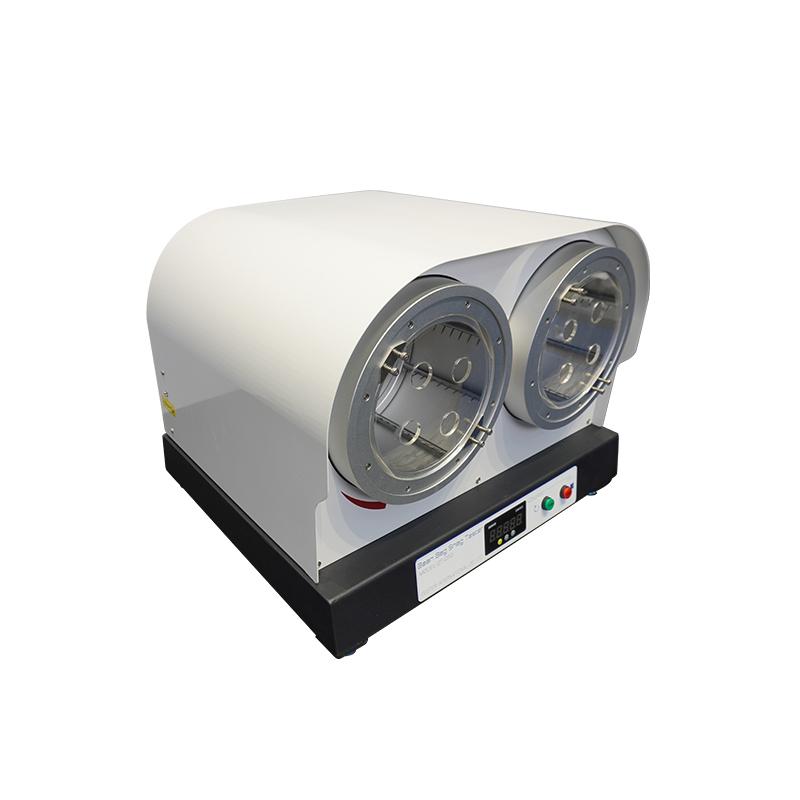

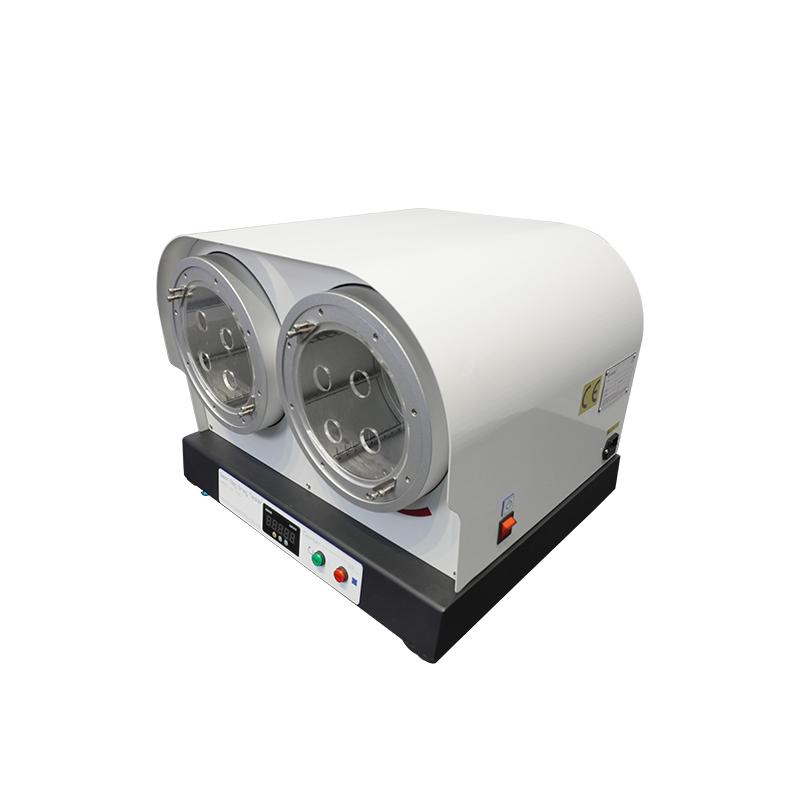

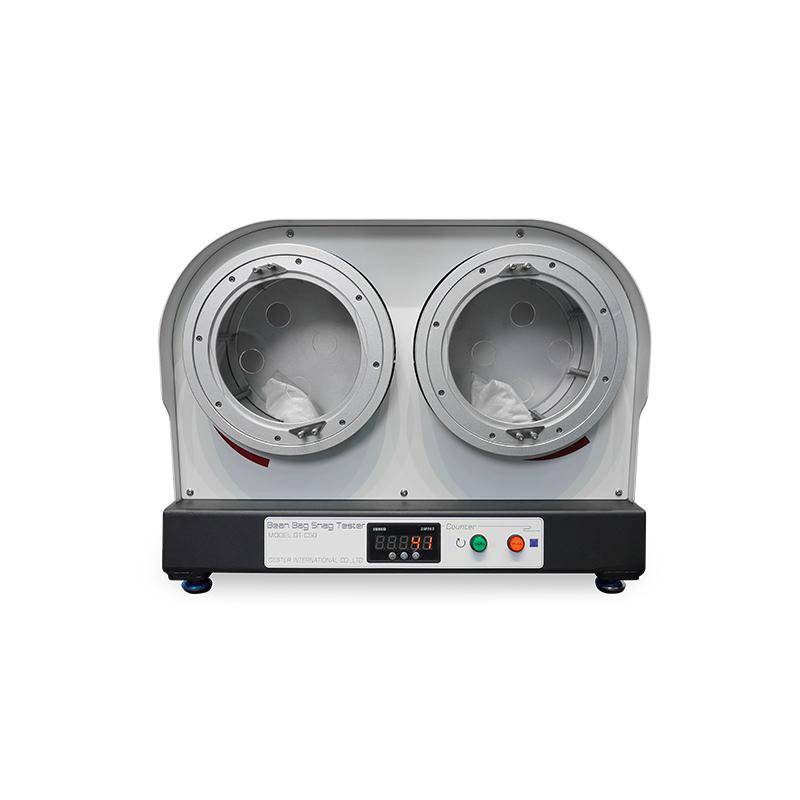

Bean Bag Snag Tester GT-C50
Application:
This Bean Bag Snag Tester is to test the snagging resistance of knitted fabric. The principle is put the specimen (bean bag inside) into the roller (with rows of needles) and rotate a certain number of cycles, evaluate the grade of the specimen.
|
Model |
GT-C50 |
|

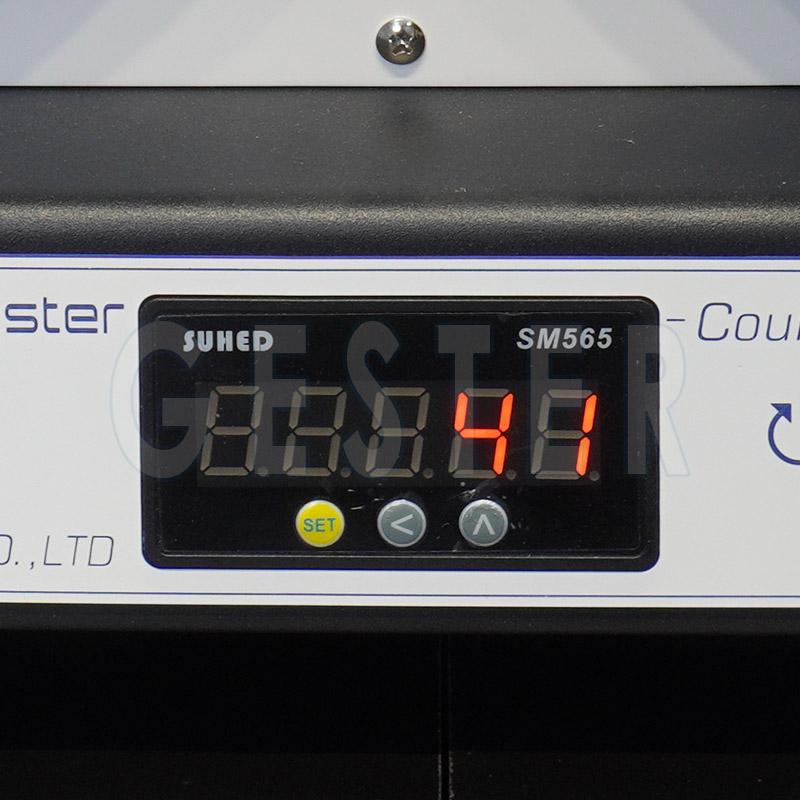

Counter Control |
1-99999 can be adjustment |
|
Test Speed |
20 ± 3 r/min |
|

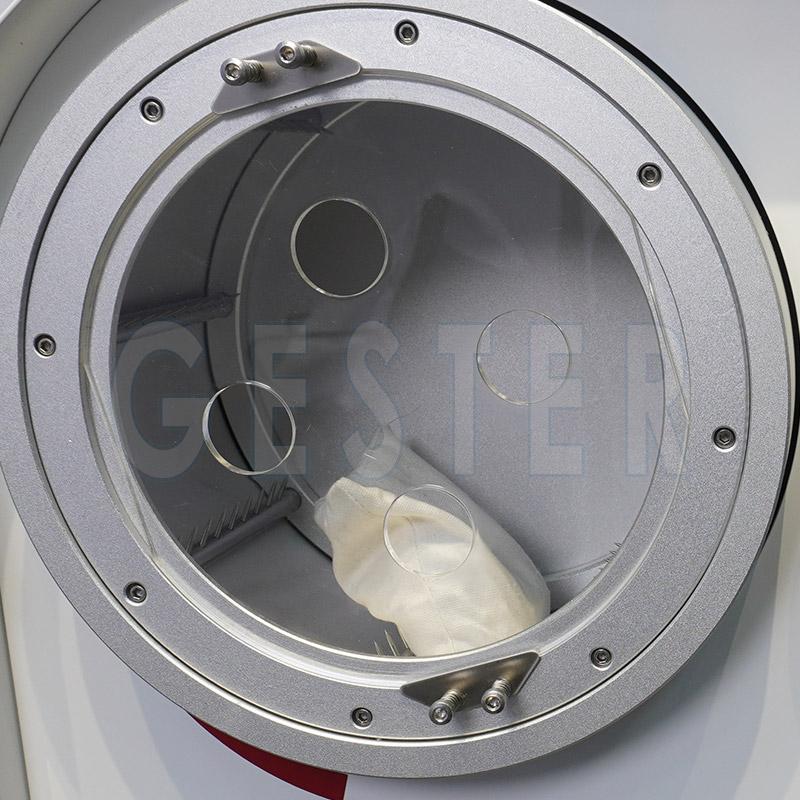

Test Cylinder |
Diameter: 200mm, Depth: 145mm |
|
Bean Bag |
450 ± 10 g |
|
Pin Angle |
30 ±50 |
|
Sample |
215 x 115mm |
|
Power Supply |
1∮ AC 220V 50/60Hz |
|
Dimensions |
800 x 450 x 550mm(L x W x H) |
|
Weight |
40Kg |
Accessories
|
Standard accessories |
1pc |
Sample Template |
|
2pcs |
450g Bean Bag |
|
|
1pc |
Power Line |
|
|
Optional accessories |
Optional |
Photographic |
|
Optional |
