Water-Cooled Light Weather Fastness Tester GT-3000

Water-Cooled Light Weather Fastness Tester is widely use in solar radiation simulation light color fastness, light perspiration color fastness and light aging test of various materials.
  • Brand:

    GESTER
  • Item NO.:

    GT-3000
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Ports
  • Lead Time:

    10-30 days
  • Product Detail

<span style="font-family:Helvetica;font-size:16px;"><span style="color:#000000;">无标题文档</span></span>

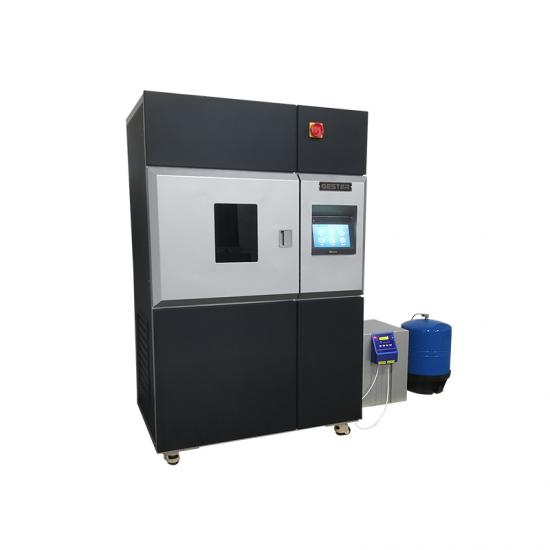

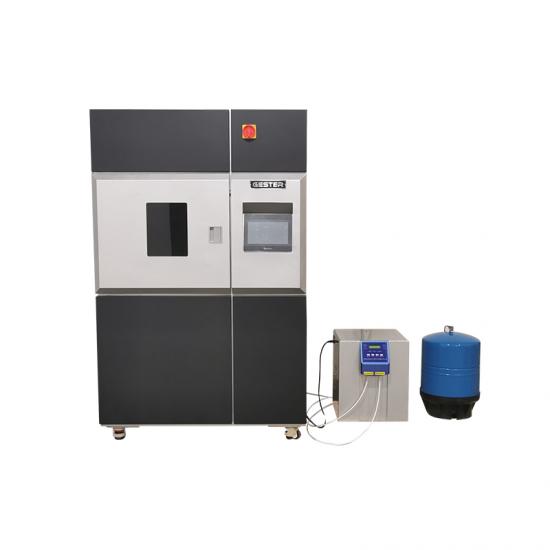

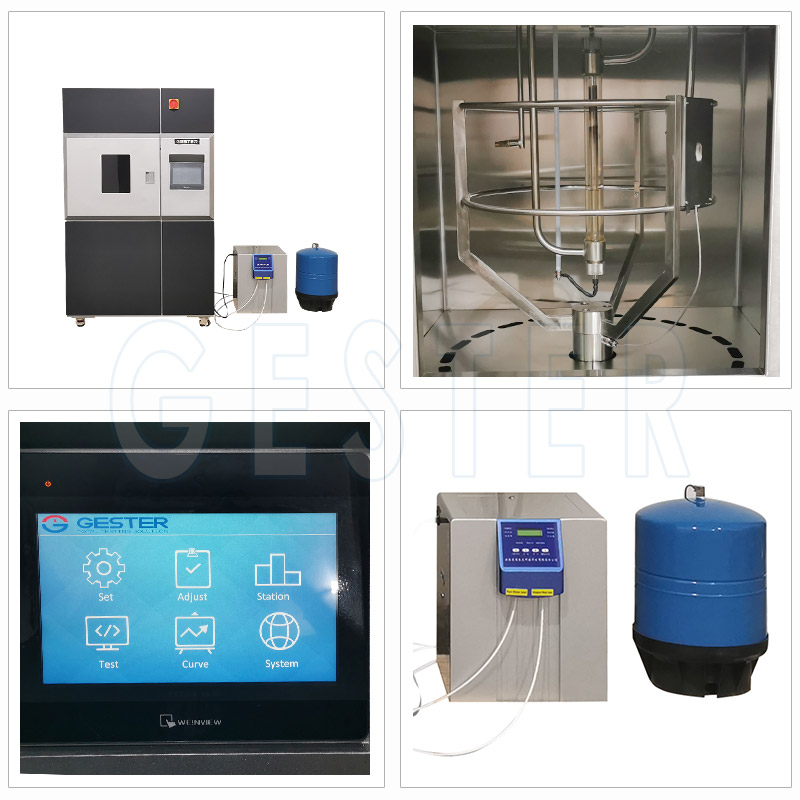

Water-Cooled Light Weather Fastness Tester GT-3000



Product Introduction


Application:

Water-Cooled Light Weather Fastness Tester is widely use in solar radiation simulation light color fastness, light perspiration color fastness and light aging test of rubber, plastic, coating, petrochemical industry, car, textile industrial products and other materials. It through simulate illumination, exposed to the rain, mist spraying, alternating light and dark, temperature and humidity climates conditions to test material products’ color fading, aging, transmittance, peeling, hardness, softness and other performance changes.


Standards:

Textile



GB/T 8430, GB/T 14576, GB/T 8427, ISO 105-B02/B04/B06, AATCC 169, M&S C09 / C09A, JIS L0843

Paint coating

GB/T1865, ASTM D6695, ISO 11341, NES M0135, ISO16474-2

Rubber & Plastics

GB/T 12831, GB/T9344, GB/T 16422.1, ASTM D2565, ISO 4892

Non-metallic Material

AATCC TM16, ASTM G26, ASTM D4459, ASTM G155, GB/T 2423.24,GB/T 15102, GB/T 15104

Car: SAE J2527, SAE J1885, SAE J2212, SAE J1960, SAE J2412, ISO3917, PV 1303, PV 3929, PV 3930, DVM 0067- MA, HES D6601, TSL 0601G, GMW3414, EDS-T-7415,

D47 1431

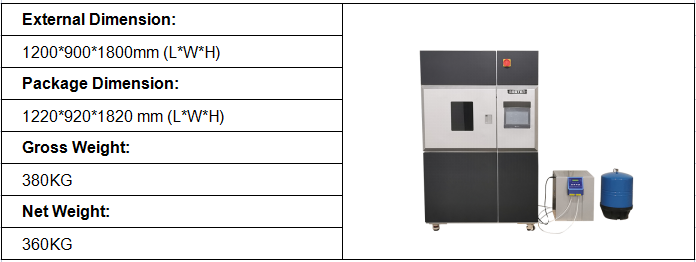

Dimensions

Xenon Weathering Test Chamber Dimensions


Feature
  • Xenon Weathering Test Chamber: Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc.

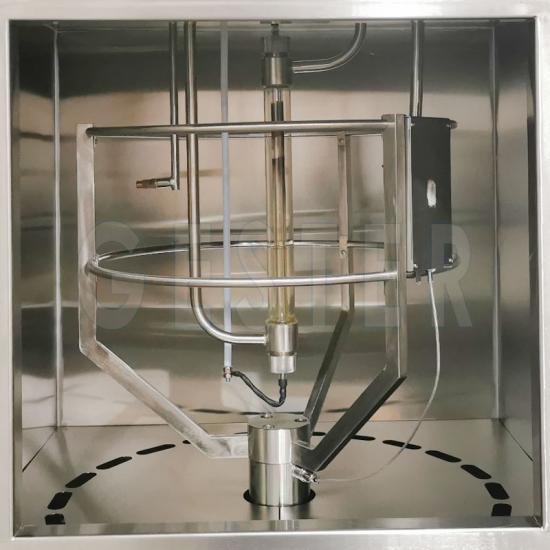

  • 4500W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
  • Xenon Arc Test Chambers: Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
  •  Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
  • Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
  • Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.

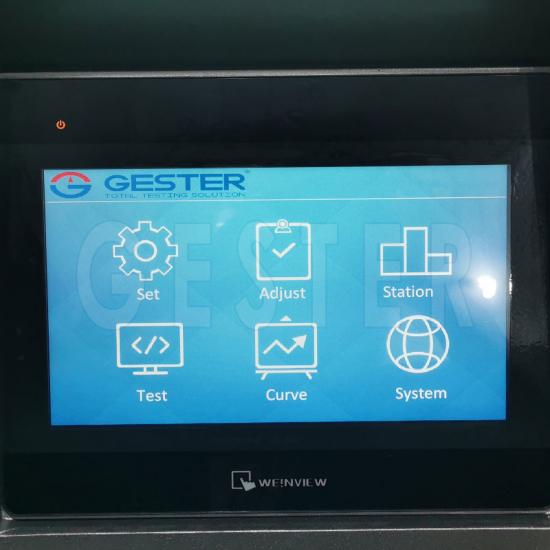

  • Custom program capability and storage for additional user-defined tests.

  • De-ionized water system to ensure purity of cooling water and spray water.

  • Water-Cooled Light Weather Fastness Tester Each specimen holder has time recorder respectively. Ease to test different specimen in one test.

  • Multi-point inspection: malfunction alarm, self-diagnostic function, ease to maintenance.

  • xenon lamp weather resistance test chamberPrint the test result chart by stylus printer directly. No need support of PC.


Key Specifications


Model

GT-3000-1

GT-3000-2

Irradiation Source

(Water-cooled Long Xenon Arc Lamp)

4500W

Exposure Area

2660cm²

4700cm²

Sample Holders Capacity

ISO:145×45mm 33pcs

Or AATCC:145×70mm 20pcs

ISO:145×45mm 47pcs

Or AATCC:145×70mm 35pcs

Average Lamp Life

1000 hours

Sample Rack Rotating Speed

1-7rpm ( adjustment)

Sample Rack Outside Diameter

Φ550mm

Chamber Temperature Range

20-93 ±1 Resolution: 0.1

BPT

35-125 ℃ ±1

BST (Option)

35-120 ℃ ±1

Chamber Humidity

Light Cycle: 10-70%RH; Resolution :0.1%

Dark Cycle: 30-95%RH; Resolution :0.1%

Irradiance Control Range

0.63.08W/m²@420nm

(Option: 340nm, 420nm, 300-400nm and 300-800nm)

Accuracy: ±0.02W/m²@420nm.

Digital Setting, Closed-loop Automatic Compensation

Power Supply

AC220V±10% 50Hz 10KW

Dimensions

1200×900×1800mm(L×W×H)

Weight

350kg

360kg

xenon test chamber (accelerated weathering tester)


Application Industry

All kinds of materials can be tested on the Water-Cooled Light Weather Fastness Tester

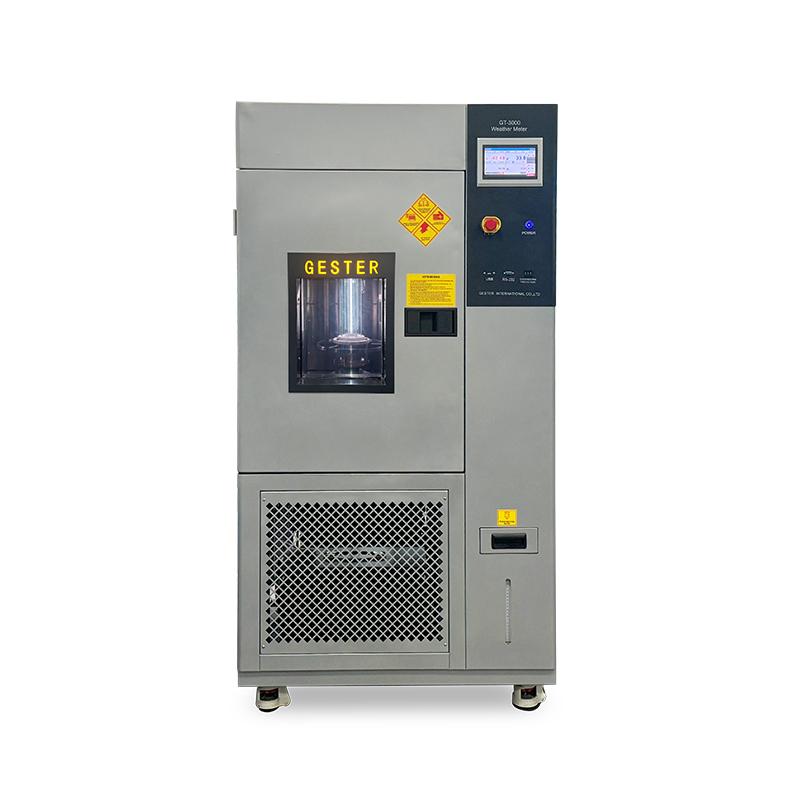

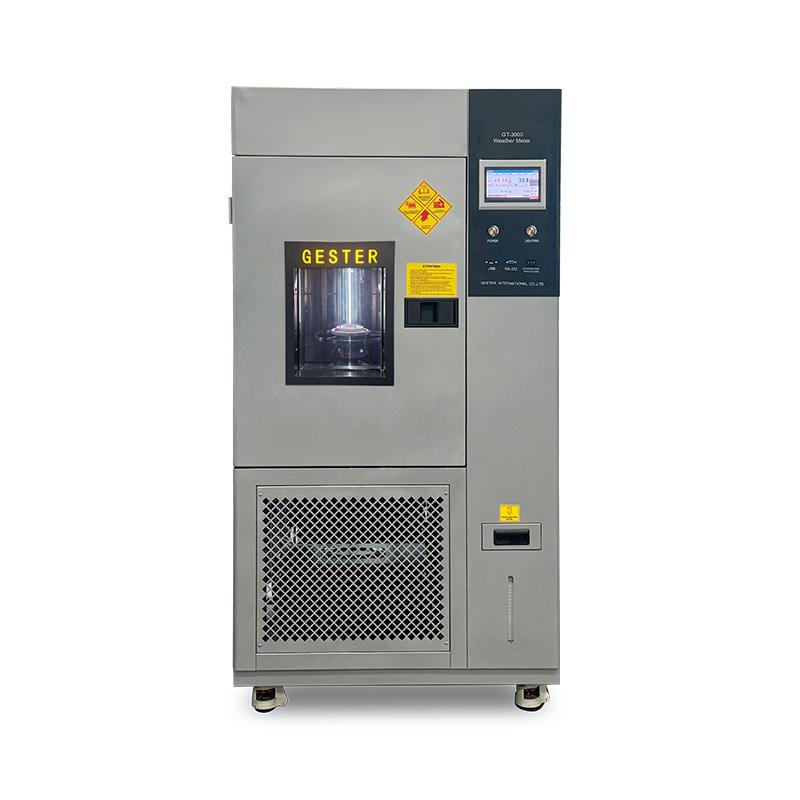

Weather Meter
