Electronic Rotary Vertical Crockmeter GT-D45B

Rotary Vertical Crockmeter, to determine the colour fastness of textiles to dry or wet rubbing particularly for printer fabrics.

  • Brand:

    GESTER
  • Item NO.:

    GT-D45B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

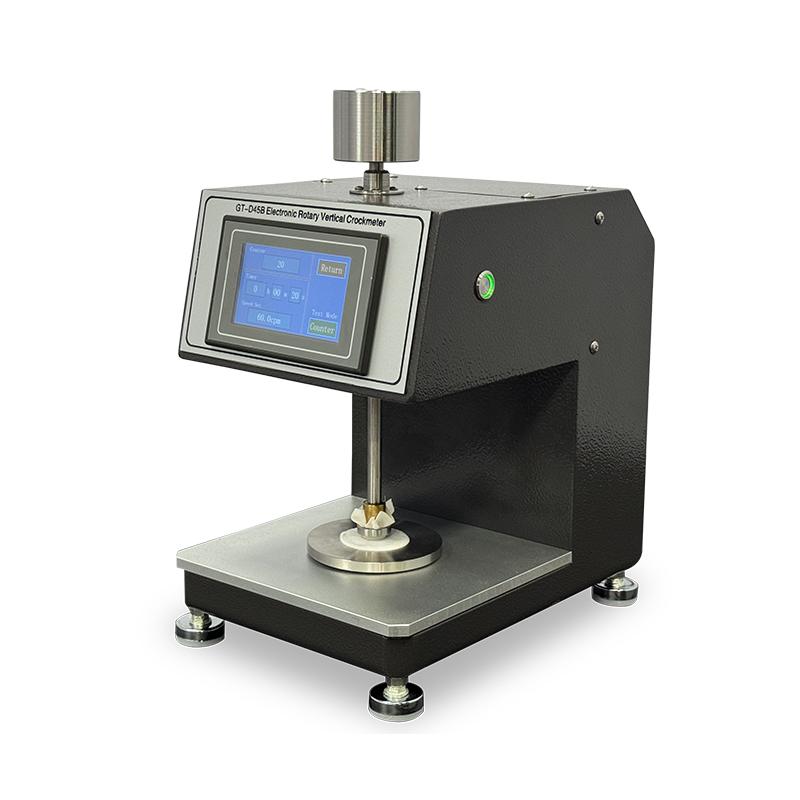

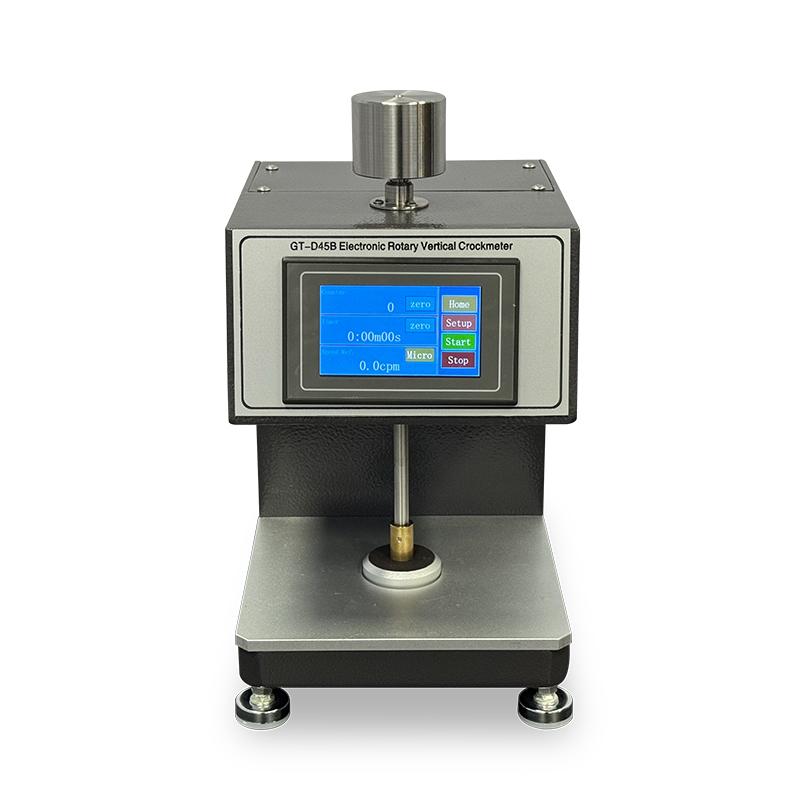

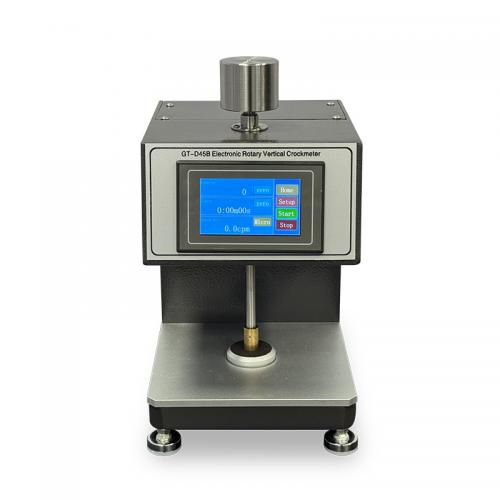

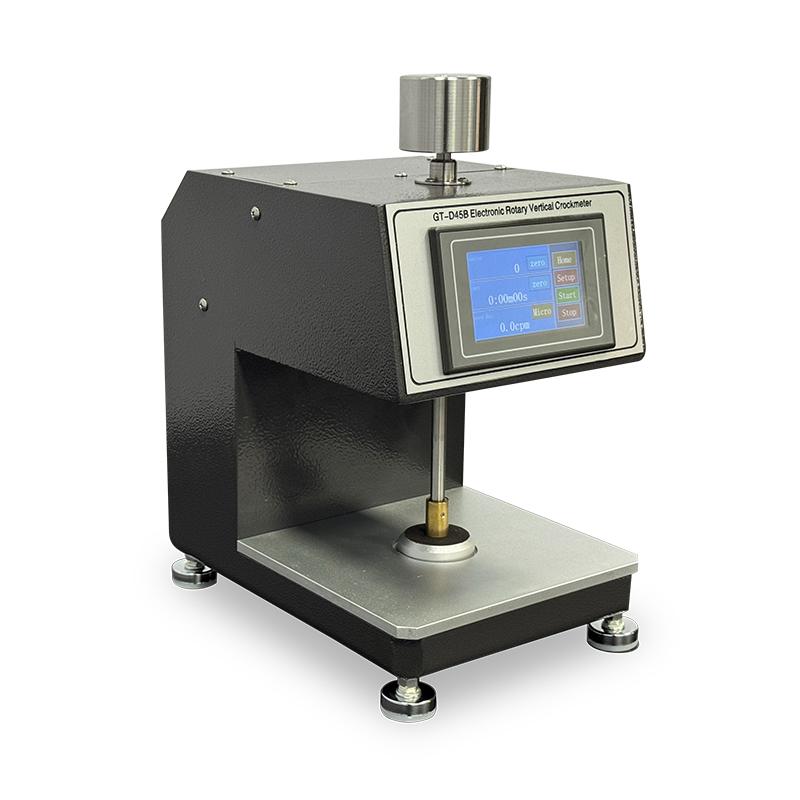

Rotary Vertical Crockmeter GT-D45B



Product Introduction

Application:

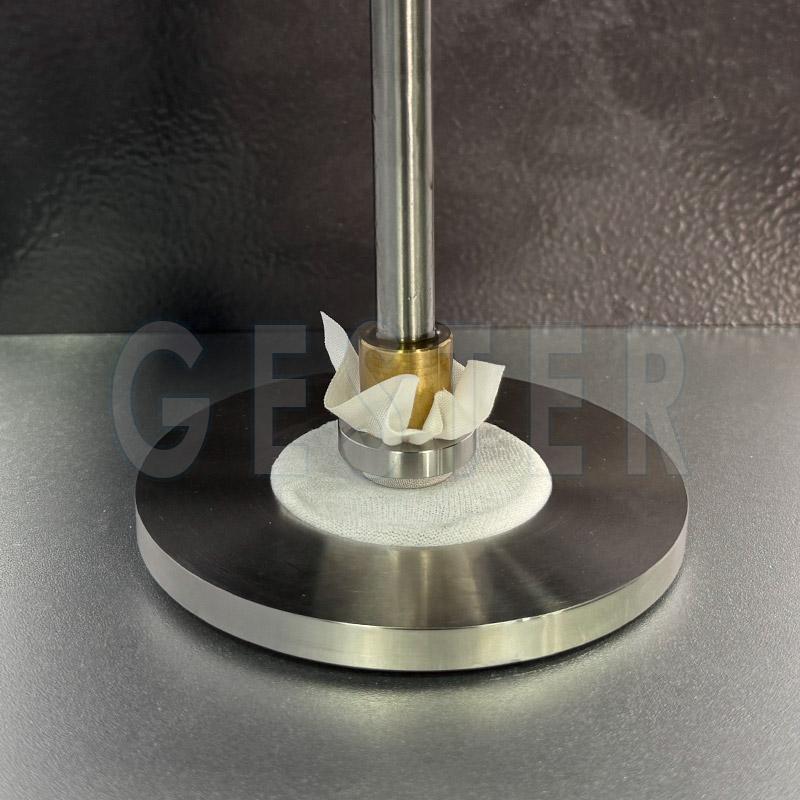

Rotary Vertical Crockmeter, to determine the colour fastness of textiles to dry or wet rubbing particularly for printer fabrics. Rotary crockmeter applies 1134 grams of pressure on a 16mm finger and rotate 1.125 turns clockwise then anti-clockwise.
The operating handle is however turned in one direction only.


Standards:
AATCC 116


Feature

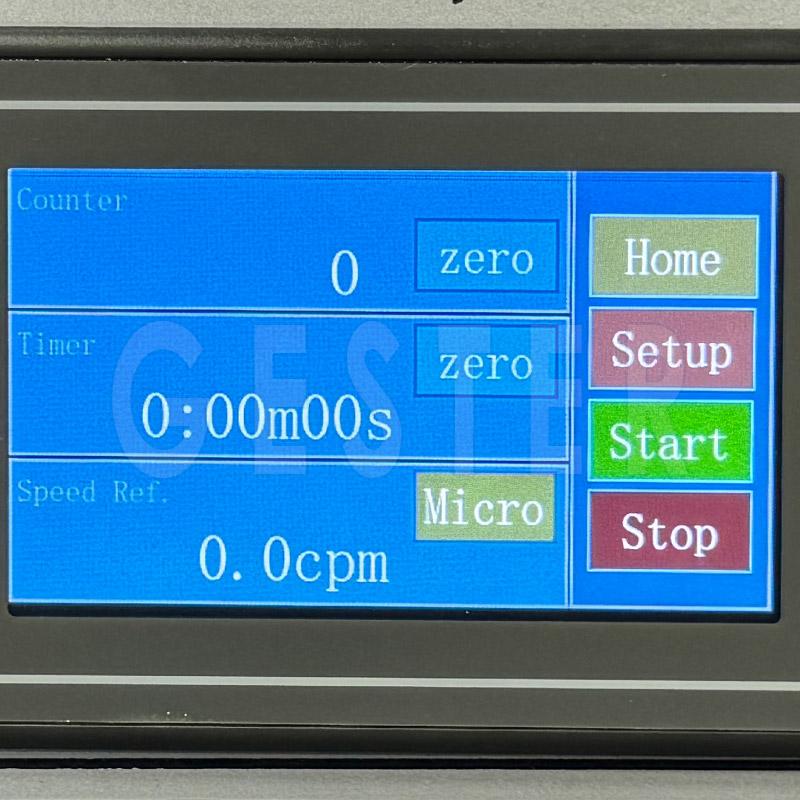

1.Rotary Crockmeter Touch screen control is convenient to operate.

2.The sample holder was made of spring steels to quicken the speed of fastening.

3.Single-chip microcomputer control to freely set the speed.

4.Vertical crockmeter equipped with standard fixed device of fabric.

5.The friction time can be set freely and can count up and down. The machine will automatically stop when reaches at the set time.



Key Specifications



Model

GT-D45B

Drive Mode

Electronic

Test Loading

1143g / 11.1±0.5N

Rubbing Head Diameter

16mm

Sample Dize

25×25mm

Crockmeter Cloth Size

51×51mm

Range of Speed

50-80rmp (adjustable)

Counter Range

0-999999

Power Supply

1∮AC 220V 50/60HZ 100W

Dimensions (L x W x H)

240×100×160mm

Weight

15kg


Accessories

Standard accessories

1pack

Rubbing Cloth

Optional accessories

Optional

Chromatic Transference Scale



Application Industry

All kinds of materials can be tested on the Electronic Rotary Vertical Crockmeter

Electronic AATCC Rotary Vertical Crockmeter
