Vertical Flammability Chamber GT-C35

Flammability Chamber
  • Brand:

    GESTER
  • Item NO.:

    GT-C35
  • Order(MOQ):

    1
  • Payment:

    L/C T/T
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 Days
  • Product Detail

Vertical Flammability Chamber GT-C35mabi


Product Introduction

Application:

Flammability Chamber is used to measuring the vertical flame spread for children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles.

Different accessories, burners and configurations are required for different standards. Please specify standards(s) required.

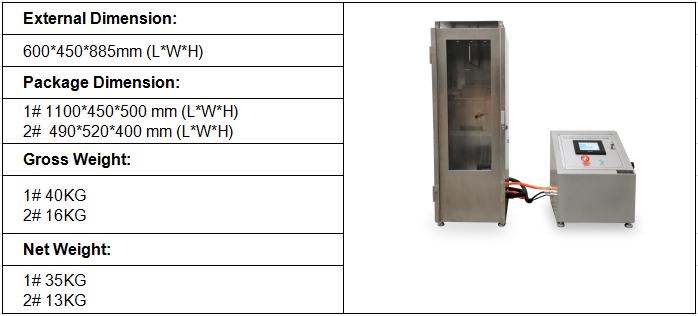

Dimensions

Vertical Flammability Chamber Dimensions



Key Specifications

Model

GT-C35A-1

GT-C35A-2

After flame time

0-999.9s  resolution 0.01s

After glow time

0-999.9s  resolution 0.01s

Burning time

12s(adjustable)

Nozzle

Inner diameter

11mm

10 -0.5 mm

Angle

65 degree

90 degree

Dimension of

specimen holder

Out frame

422*89 *2mm

442*76*12.5 mm

Inner frame

356 × 51 mm

Testing flame height

40±2mm

38mm

Distance between nozzle top and specimen

17mm

19mm

Tearing weights

54.4g, 113.4g,

226.8g, 340.2g, 453.6g

100g, 200g,

300g, 475g

Power supply

AC 220V 50/60HZ

Dimensions

600 x 450 x 885mm (L x W x H)

Weight

44 kg

Standards

CFR1615

CFR1616

GB/T 5455

ASTM D6413



Accessories

Standard accessories

1Set

Tearing weights

1pc

Sample holder

1pc

Flame measuring scale

1pc

Power line

Optional accessories

Optional

Φ 11mm Nozzle

Optional

Φ10mm Nozzle

Optional

CFR1615,1616 holder and tear weights

Optional

ASTM D6413 holder and tearing weights


Vertical Flammability Chamber GT-C35


Application Industry

All kinds of materials can be tested on the Vertical Flammability Chamber
