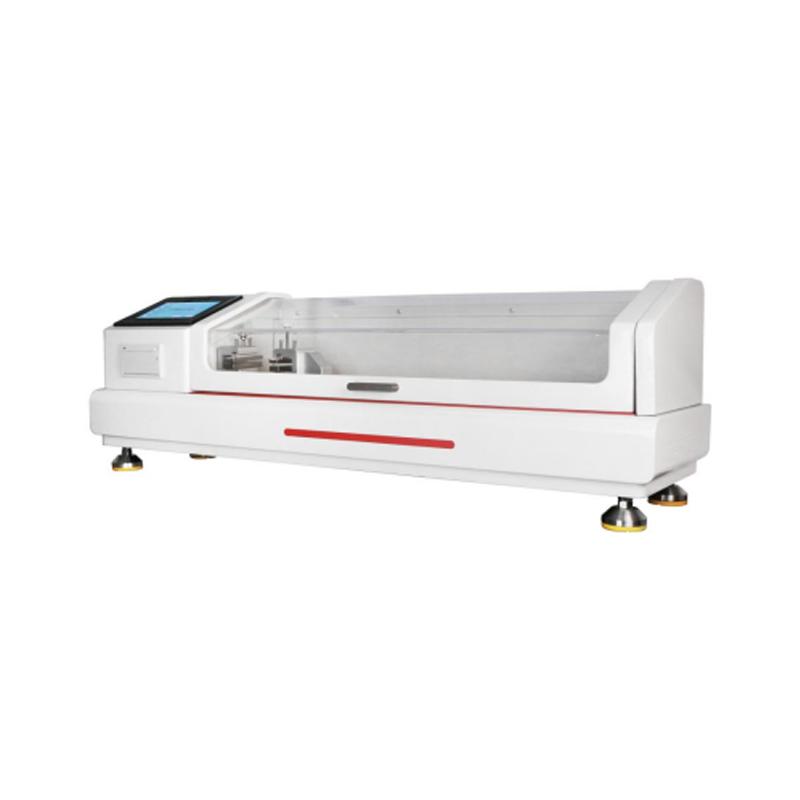

Toilet Tissue Paper Tensile Stength Tester GT-CN24

Product Introduction

Application:

It's mainly used to measure the tensile strength, elongation, crack length, tensile energy absorption, tensile energy absorption index and elastic modulus of tissue paper. It can also be used to measure the tensile properties of other low tensile strength and low elongation sheet materials.

Standards

GB/T 24328.3, ISO 12625-4

Principle

The specimen shall be clamped on grips so that the two gripping lines are parallel to each other. The testing machine stretches the specimen at a speed of 50±2 mm/min until it breaks. After measures the tensile strength and elongation, the results will be stored on machine.

Feature

Touch screen control, man-machine dialogue mode, and convenient to operate.
Using stepper motor control and subdivision technology, the instrument positioning is more accurate, the speed response is more fast and greatly improves the test efficiency.
Using high-speed ARM processor, it will fast to data collection, automatic measurement, and intelligent judgment of the test process.
16-bit AD converter is used to ensure that rapidly and accurately collect the force data.
Tissue paper tensile strength testing machine: will display the force value and deformation in real time.
It is with high-precision sensor, good linearity, strong stability, and over-range prompt function to protect the sensor and prolong the service life.
It can be connected to computer software, which can complete test parameter setting, working state control, data acquisition and analysis processing, result display and printout.

Key Specifications

Mode	GT-CN24
Measuring Range	0-50N
Resolution	0.001N
Test Speed	50±2 mm/min (1～500 mm/min adjustable)
Return Speed	300mm/min (1～500 mm/min adjustable)
Test Stroke	600mm
Width of Fixture	80mm
Displacement Display	0.01mm
Display	Colour touch screen
Printing Output	Thermal printer
Communication Output	USB
Working Environment	Indoor temperature 20±10°C; Relative humidity ≤ 85%
Power Supply	AC220V 50Hz
Dimension	1080×300×330mm
Weight	40kg
