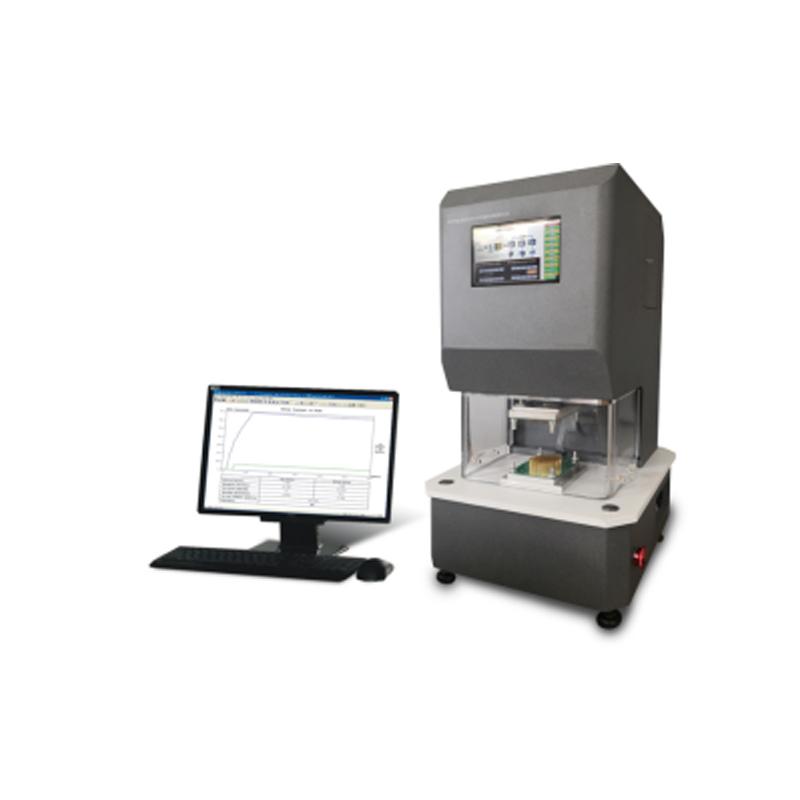

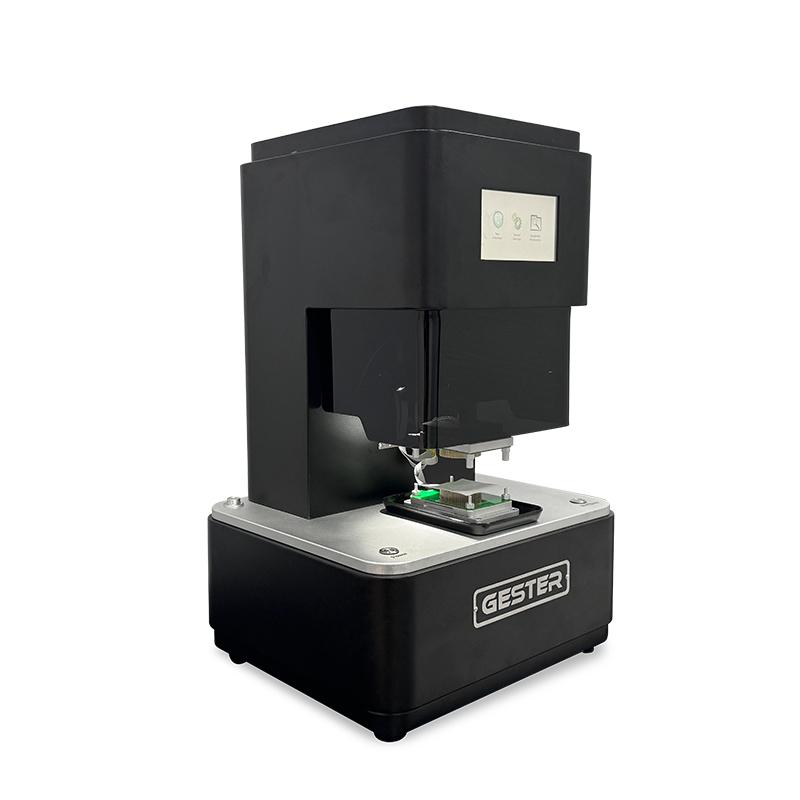

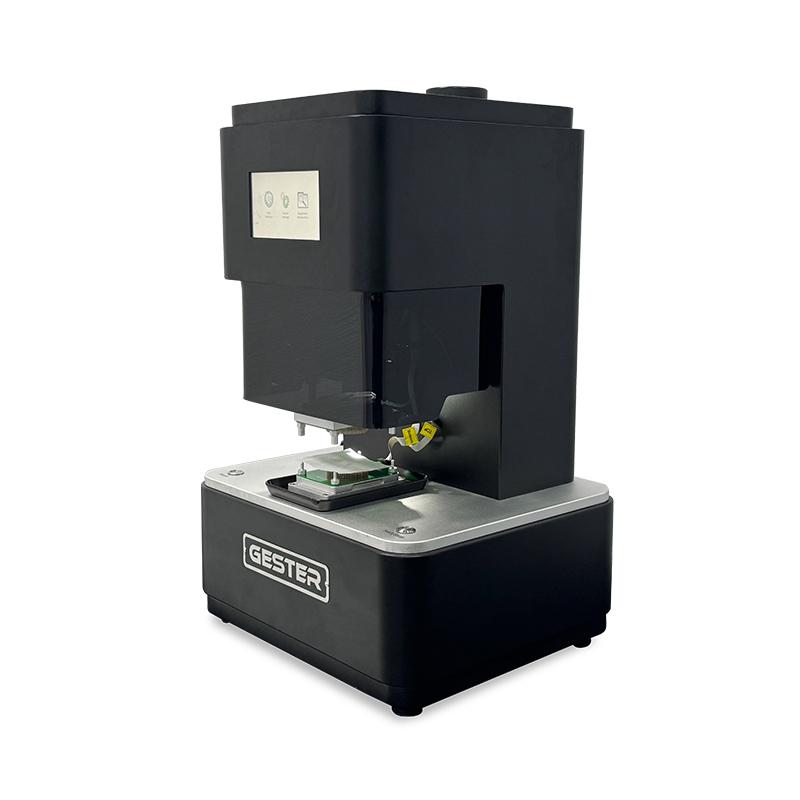

Textiles Liquid Water Transfer Performance Tester GT-C203

Textile Testing Equipment Manufacturers Suppliers
  • Brand:

    GESTER
  • Item NO.:

    GT-C203
  • Order(MOQ):

    1
  • Lead Time:

    20-30 days
  • Product Detail

Textiles Liquid Water Transfer Performance Tester GT-C203



Product Introduction

Application:

Moisture Management Tester: test and evaluation of liquid water dynamic transfer for hygroscopic and quick-drying properties of textiles.

Suitable for quality control of fabric and apparel manufacturers, research and development of new functional fabrics and apparel, classification of fabrics, and grading of fabrics based on comfort factors related to liquid management.


Standards:


GB/T 21655.2,  AATCC 195


Textile liquid moisture transfer performance tester characteristics


  1. The third generation of instrument design and manufacturing technology, and the use experience feedback and summary of more than 20 professional users.
  2. Simultaneously meet the requirements of GB/T 21655.2 and AATCC 195 standard.
  3. High efficiency cleaning design, easy to clean the residual liquid before and after each test.
  4. Textile liquid moisture transfer performance tester: evaluation auxiliary software, convenient for the test staff evaluation.
  5. Automatic clamping device, one key start convenient and quick.
  6. Convenient water injection design, easy for experimenters to add salt water and change water before and after the experiment.
  7. Moisture Management Tester: auxiliary lighting system, convenient to observe the test details.
  8. 32-bit CPU with 24-bit AD acquisition system, to achieve faster and more accurate data acquisition and processing.
  9. Pressure counterweight, probe specifications and other new and old standards are optional, convenient to switch between the new and old standards for testing.
  10. Drip control precision plus or minus 0.003ml, drip water can be adjusted and set, convenient for customers to study and test.




Key Specifications


Model

GT-C203

Sample size

(90±1)mm×(90±1)mm

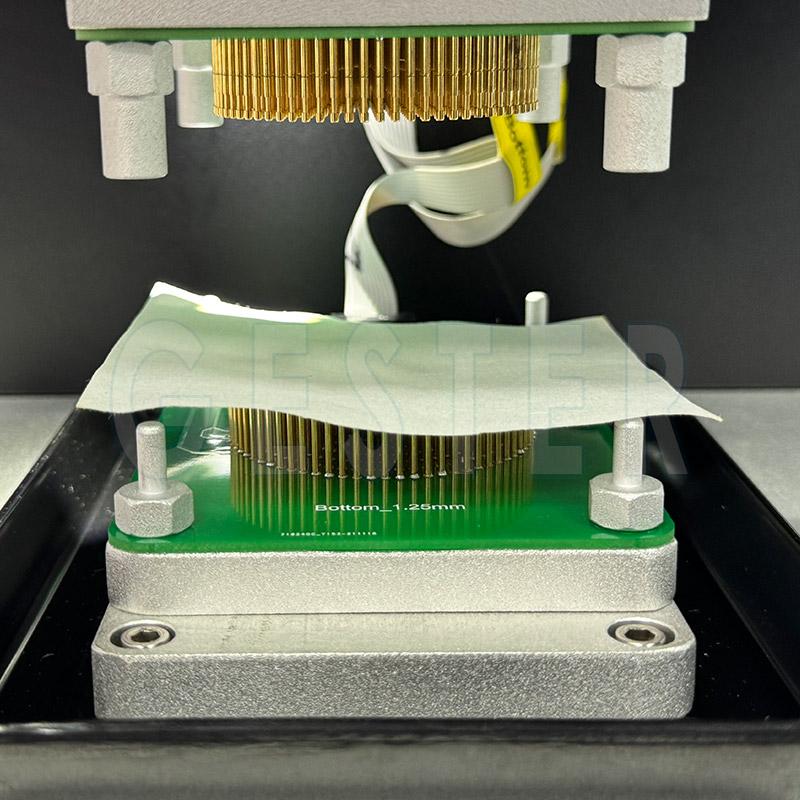

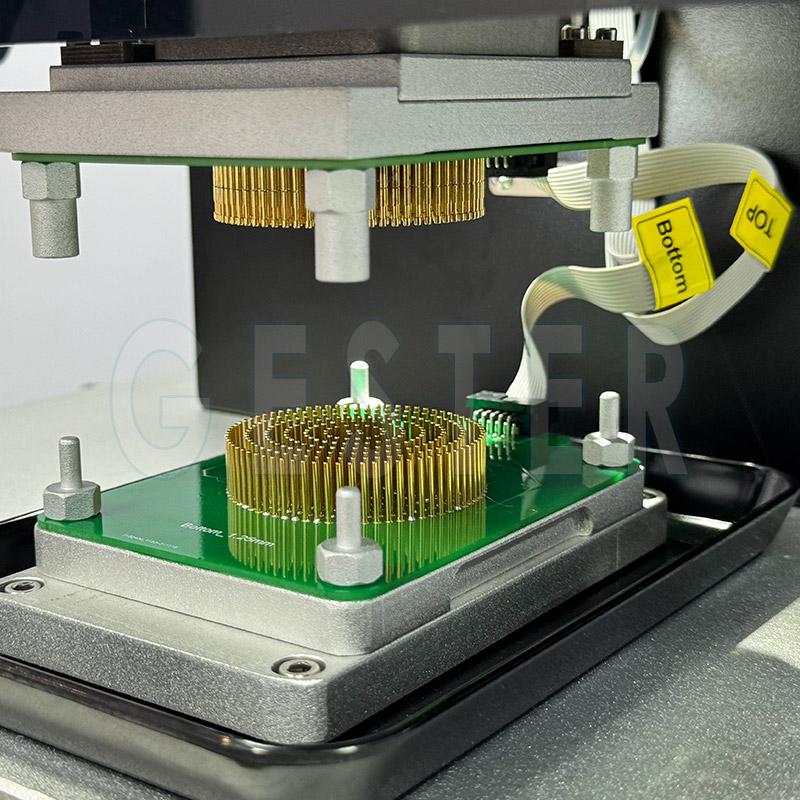

Sensor A

(1) Diameter of upper and lower test sensor: Φ 58.5mm

(2) Ring area distance:

inner ring distance 5.0mm, the rest 4.5mm;

There are 7 test rings

(3) Probe of upper sensor:

Specification of spring probe: contact surface diameter 1.54± 0.05mm, copper gold plated

(4) Lower sensor probe:

contact surface diameter 1.2±0.05mm.

Gold plated copper; Resistance <5 0 m Ω

Sensor B

(1) Diameter of upper and lower test sensor: Φ 58.4mm

(2) Ring area distance:

inner ring distance 5.0±0.05mm, a total of 7 test rings

(3) Probe of upper sensor:

Specification of spring probe: contact surface diameter 0.54± 0.02mm, copper gold plated

(4) Lower sensor probe:

Contact surface diameter 1.2±0.02mm.

Gold plated copper; Resistance <5 0 m Ω

Test liquid conveying system

Transfer time :20S

Transfer liquid volume: 0.22g ± 0.01g;

Conveying liquid outlet specification: stainless steel pipe inner diameter 0.5mm.

Test standard solution conductivity

16 mS 0.2ms

Test time

120 S

The test head pressure

A: 9.8N soil 0.15N B: 4.65N soil 0.05N

Power supply

AC 220V±10V 50HZ 160W

External size

510mm(L) ×600mm(W) ×800mm(H)

Weight

50Kg
