Seat Loading Pad GT-LB01-2

Seat loading pad, which is a naturalistically shaped rigid indenter with a hard, smooth surface .

Brand:
GESTER
Item NO.:
GT-LB01-2
Order(MOQ):
1
Payment:
T/T ,L/C
Lead Time：
20-30 days

Inquire now

Product Detail

Seat Loading Pad GT-LB01-2A

Product Introduction

Application:

Seat loading pad, which is a naturalistically shaped rigid indenter with a hard, smooth surface . Used to simulate the human buttocks to load on the set.

Standards:

EN 1728 Section 5.2 , EN1335-3 Section 5.3 , BS5459-2-2000 Section A3.4, EN581-2,

GB10357-3 -2013 Section 3.6; ISO7173-1989 Section 6.3; EN 1022-2018 Section5.11

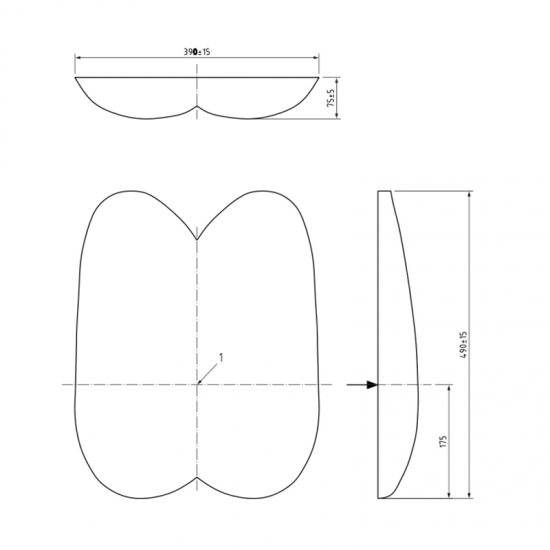

Key Specifications

Model	GT-LB01-2
Material	Plastic steel
Load cushion length	490±15mm
Loading pad width	390±15mm
Load cushion thickness	75±5mm
Dimension (L×W×D)	490×390×75mm
Weight	16kg

Applications Industry

All kinds of seats of chair can be tested on the Seat Loading Pad
