Chair Assembly Testing Machine combination with Drop Test, Backrest Durability Test, armrests Durability and Leg Strength Test.
Brand:
GESTERItem NO.:
GT-LB08-1Order(MOQ):
1Payment:
100% T/T in advanceShipping Port:
Xiamen PortLead Time：
7-30 daysProduct Detail

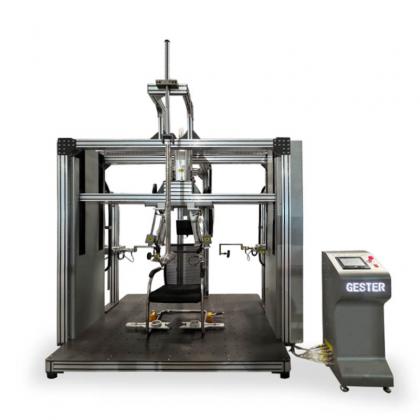

GT-LB08-1 Chair Assembly Testing Machine
|
Application:
This Chair tester is according for the standard EN 1728 and combination with different methods:
Standards: EN 1728-2012 Section 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6.11, 6.12, 6.13, 6.14, 6.15, 6.16, 6.17, 6.18, 6.20, 6.21, 6.22, 6.24, 6.25, 6.26, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.12, 8.2, 8.3, 8.4, 8.5 , 8.6, 8.7, 8.8, 8.9EN581-2-2015 （correspond EN1728-2012), EN 16139-2013 （correspond EN1728-2012) EN1335-3 -2009 Section 7.2, 7.3.1, 7.3.2, 7.3.4, EN 1729-2-2012 Section 5.3 ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12 GB/T 10357.3 -2013 Section 4.3, 4.4, 4.5,4.6, 4.7, 4.8,4.9, 4.10,4.11, 4.12, 4.13 , 4.14 BS5459-2-2000 Section A5.1, A5.2, A5.3, A5.5, A7.2, 7.3, A7.4, A7.7, A7.9
|
|
Model |
GT-LB08-1 |
|
Smaller seat loading pad |
Diameter 200mm |
|
Back loading pad |
200 mm x 250 mm |
|
Local loading pad |
Diameter 100mm |
|
Seat impactor |
Diameter 200mm, 25 kg |
|
Impact hammer |
Hammer: 6.5 kg Arm: 2kg |
|
Dimensions(WxDxH) |
390 x 220 x 205cm |
|
Weight(Kg) |
1030kg |
Accessories:
|
Standard Accessories |
GT-LB01-1A Loading point template GT-LB01-2A Seat loading pad GT-LB01-3 Smaller seat loading pad GT-LB01-4 Back loading pad GT-LB01-5 Local loading pad GT-LB01-6 Seat impactor device GT-LB01-7 Impact hammer Stationary fixture Stops Desktop computer Controlling software Control software Axial direction sensor |
