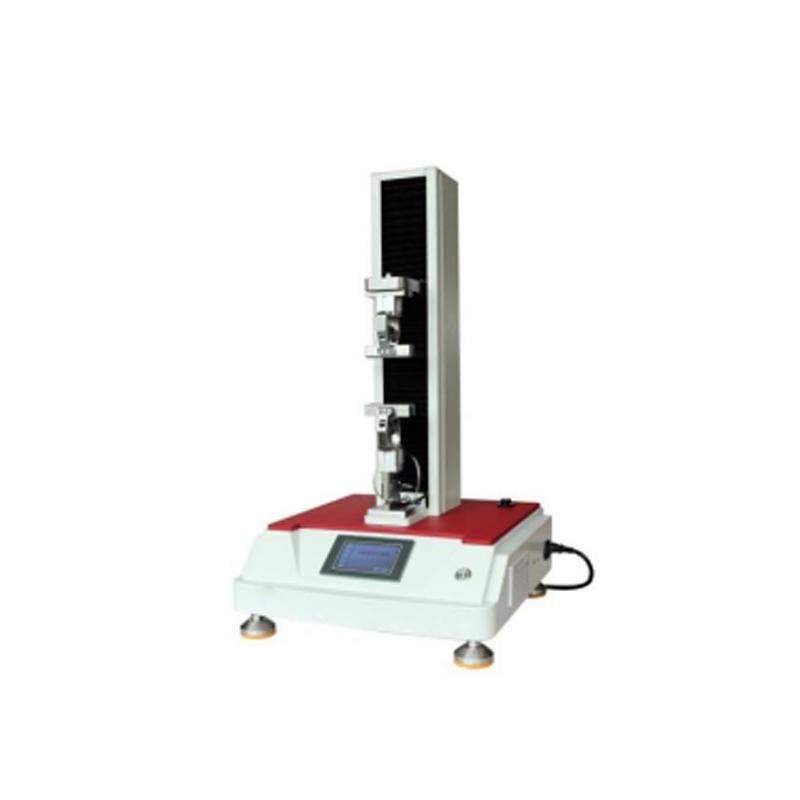

Sanitary Napkins Backing Peeling Strength Machine GT-CN18

GB/T 8939-2018 Sanitary Napkins Backing Peeling Strength Machine Touch screen control

  • Brand:

    GESTER

  • Item NO.:

    GT-CN18

  • Order(MOQ):

    1

  • Lead Time：

    10-30 days
Inquire now

  • Product Detail

Sanitary Napkins Backing Peeling Strength Machine GT-CN18


Product Introduction

Application:

Back Peel Strength Tester used to determine the adhesive strength between the backing of sanitary napkins and pads and cotton fabrics.


Standards

GB/T 8939-2018


Feature
  1. Touch screen control, Chinese and English menus, man-machine dialogue mode, easy yo operate.
  2. Built-in thermal printer, convenient to print test results quickly on site.
  3. Sanitary Napkins Backing Peeling Strength Machine Professional computer analysis software.
  4. Sanitary napkin adhesive strength tester can realize bidirectional operation with computer; report statistics, graph visual analysis, etc.
  5. High precision sensor, good linearity and stability; stepper motor drive, ball screw drive.


Key Specifications



Mode

GT-CN18

Force Range

0～30000mN Resolution: 1mN

Test Speed

1～400±10mm/min

Fixture Width

80±1mm

Clamp

Pneumatic and manual (optional)

Peel Length

21～60mm (i.e. peel stroke 42～120mm) can be set

Counterweight

62 × 80 mm, 500g

Pressure Plate

65×120mm

Power Supply

AC220V 50Hz 100W

Dimension

450×450×750mm

Weight

35kg
