Brand:
GESTERItem NO.:
GT-C48Order(MOQ):
1Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
China PortLead Time：
20-30 DaysProduct Detail

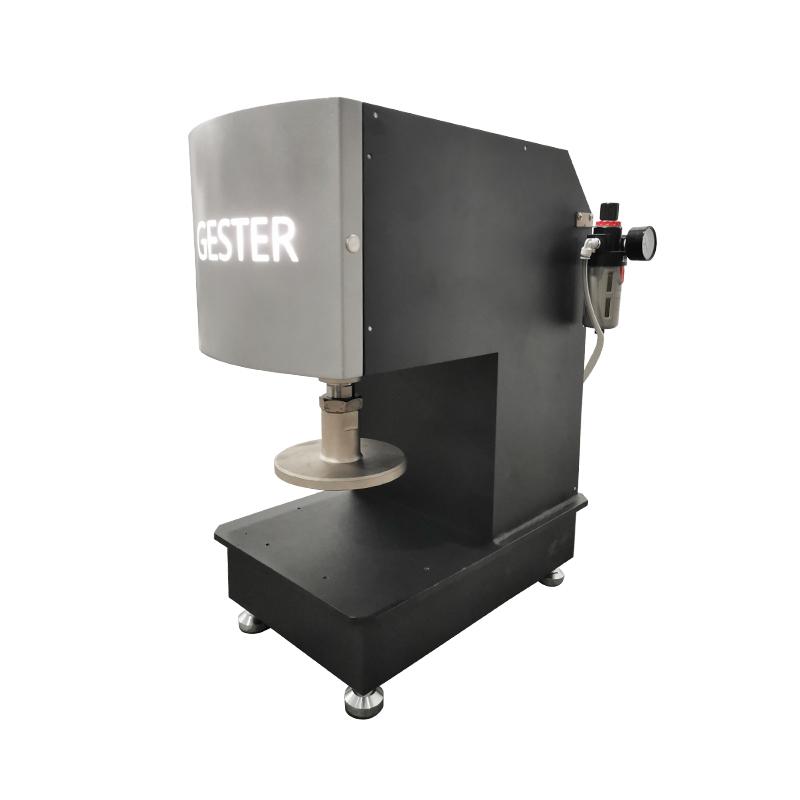

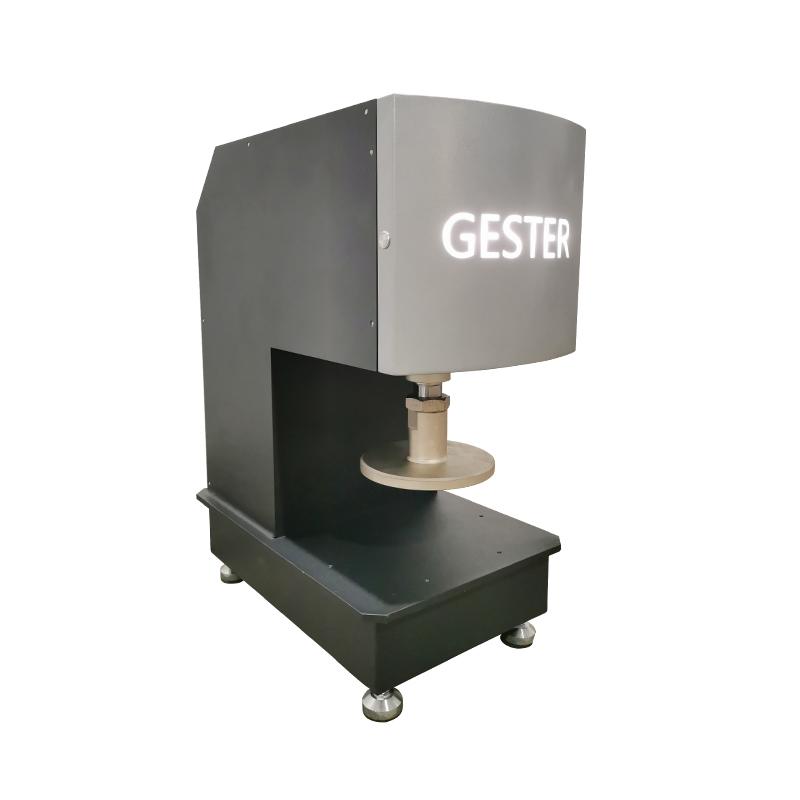

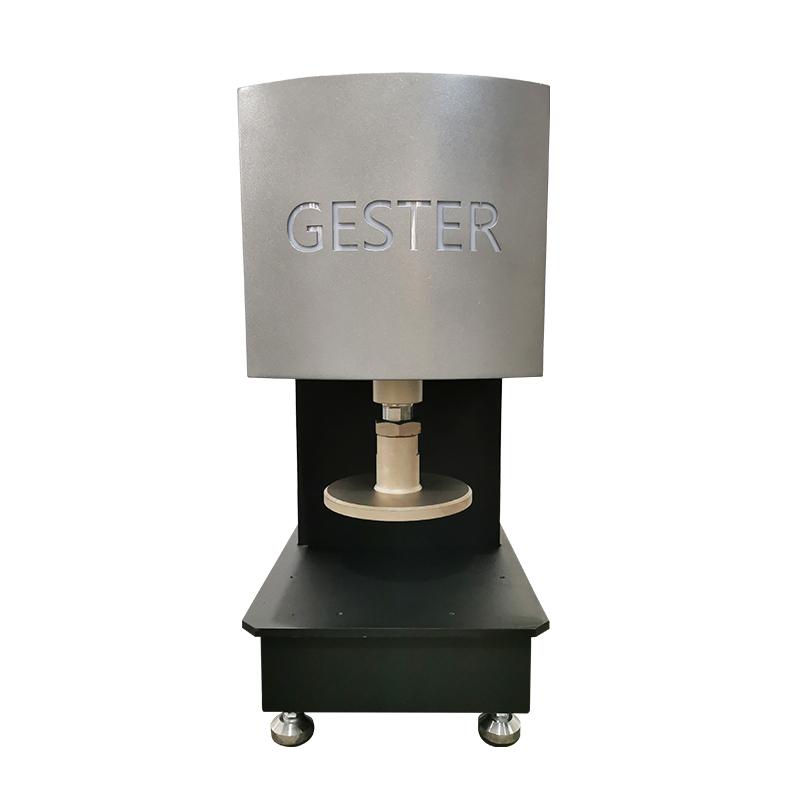

Pneumatic Sample Press for Fabric GT-C48
Application:
Sample pneumatic compression machine, a new type of desktop compression machine, equipped with 125 mm gas cylinder, cutting thickness of 5mm. Under the pressure of 100psi can produce 800kg pressure, equipped with a double bond security operation. Can be requested to provide special shape die. Laboratory standards require the use of air compressor.
Standards:
ASTM D3776/2646, ISO 3801, BS 3424/2471, BS EN 12127, M&S P65/65A
Control System:
Control mode
Pneumatic control
Diameter of platen
18.5cm
Max. cutting pressure
800kg
Air pressure
4kg/cm2
Cutting thickness
5mm
Power supply
AC220V±10% 50/60Hz
Dimensions
480 x 400 x 930mm
Weight
120kg
Accessories
Standard accessories
1pc

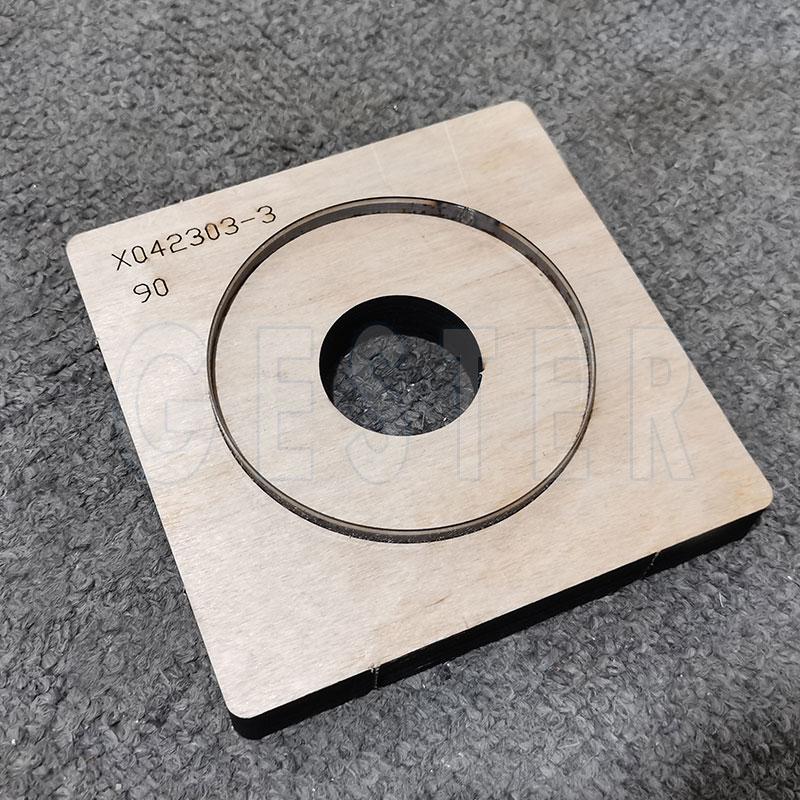

Round cutting die 100cm²
1pc
Power Line
Optional accessories
Optional
Round cutting die: φ38mm
Optional
Round cutting die: φ90mm
Optional
Round cutting die: φ140mm
Optional
Rectangle cutting die:4×10CM
Optional
Rectangle cutting die:5×15CM
Optional
Can customize special cutting die
