Plastic Films Drop Dart Tester GT-N75

New style Plastic Films Drop Dart Tester Factory direct sale.

Brand:
GESTER
Item NO.:
GT-N75
Order(MOQ):
1
Lead Time：
10-30 days

Inquire now

Product Detail

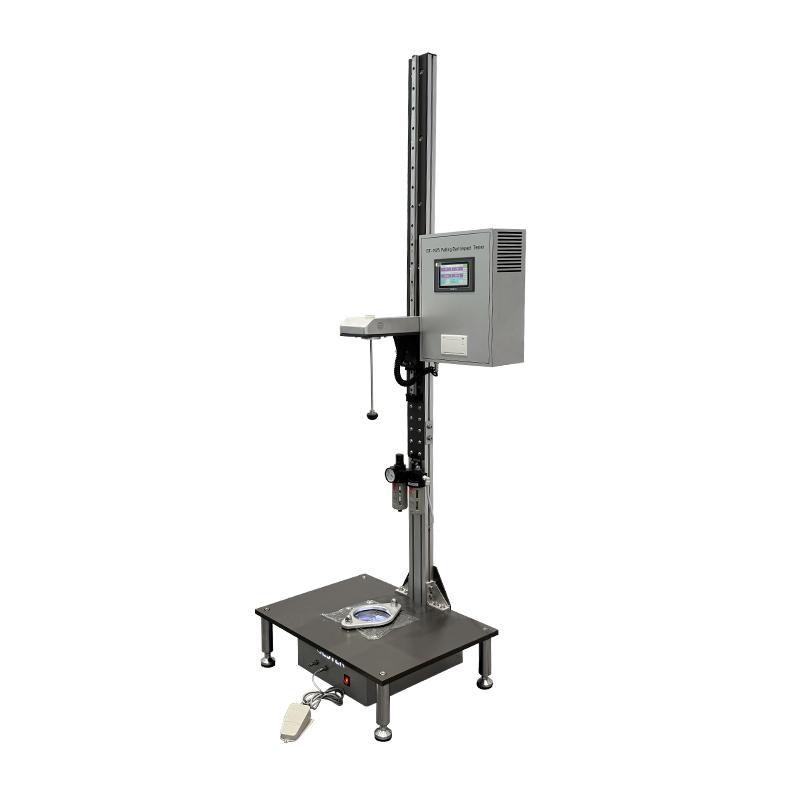

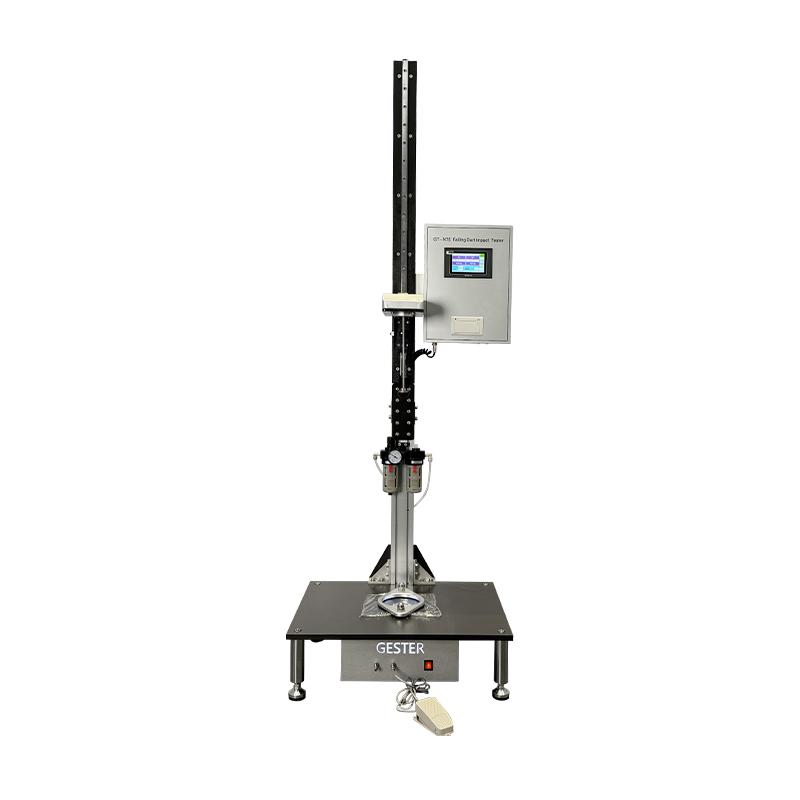

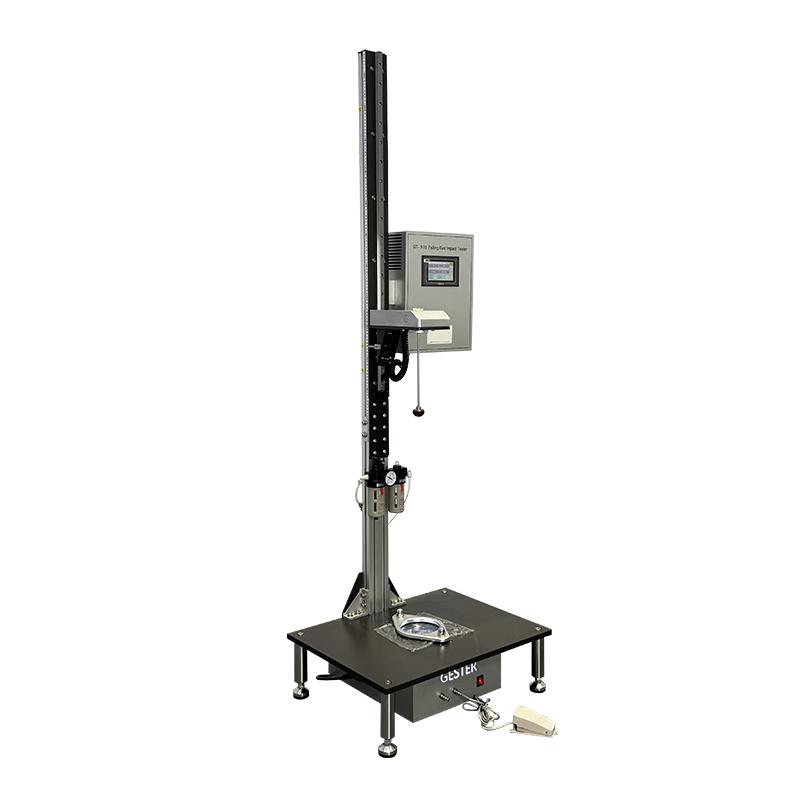

Plastic Films Drop Dart Tester GT-N75

Product Introduction

Application

This machine is used to measure the impact mass and energy of plastic films or sheets with a thickness of less than 1mm when they are impacted by a free-falling dart from a given height, when 50% of the samples are damaged.

drop dart impact tester standards

ISO 7765-1-1988, ASTM D1709, JIS K7124-1

GB/T 38082-2019, GB/T 9639.1-2008

Falling Dart Impact Tester Key Specification

Model	GT-N75
Control Mode	Touch screen controlled
Testing Method	Method A and B
Testing Range	Method A: 50-2000g Method B: 300-2000g
Drop Height	Method A: 660mm Method B: 1500 mm
Testing Error	0.1g (0.1J)
Sample Size	＞150mm×150mm

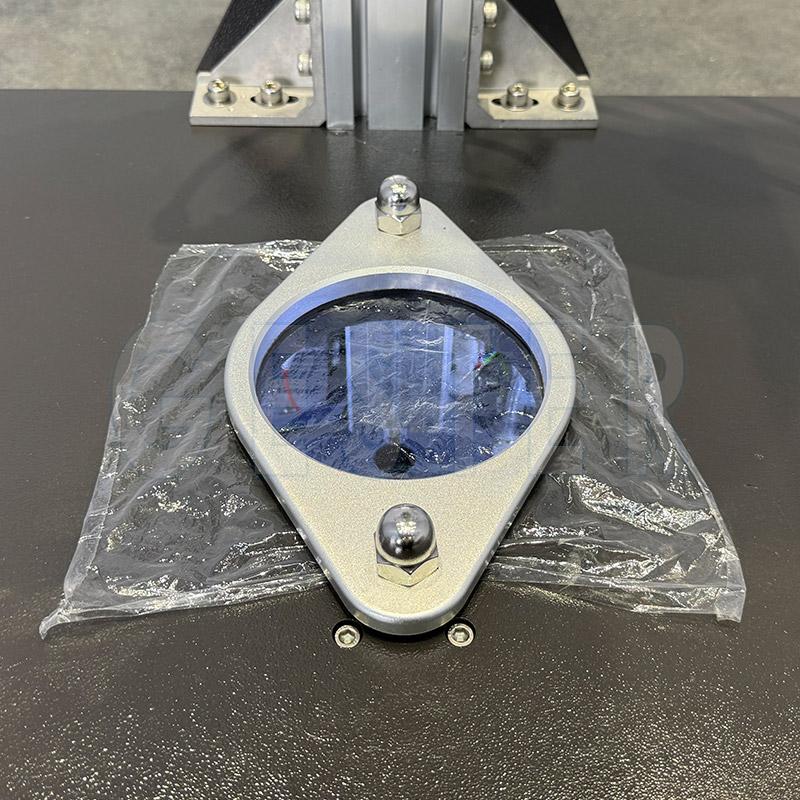

Method of Grip	Pneumatic
Compression Air	0.6MPa (Air tube connector: 8mm)
Dimension	695mm×555mm×1955mm(L×W×H)
Weight(approx.)	70 kg
Power	AC 220V 50Hz

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Plastic Films Drop Dart Tester GT-N75
