Double-Roller Tumble Tester GT-N03-2

Tumble Tester 2 work position(Double- Roller)
  • Brand:

    GESTER
  • Item NO.:

    GT-N03-2
  • Order(MOQ):

    1
  • Payment:

    TT or L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Product Detail

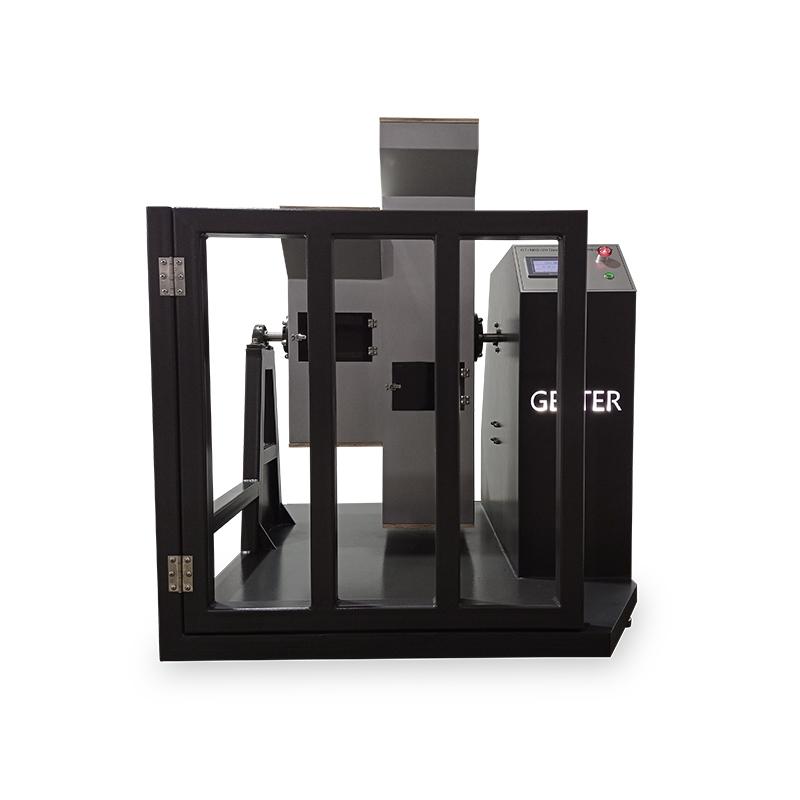

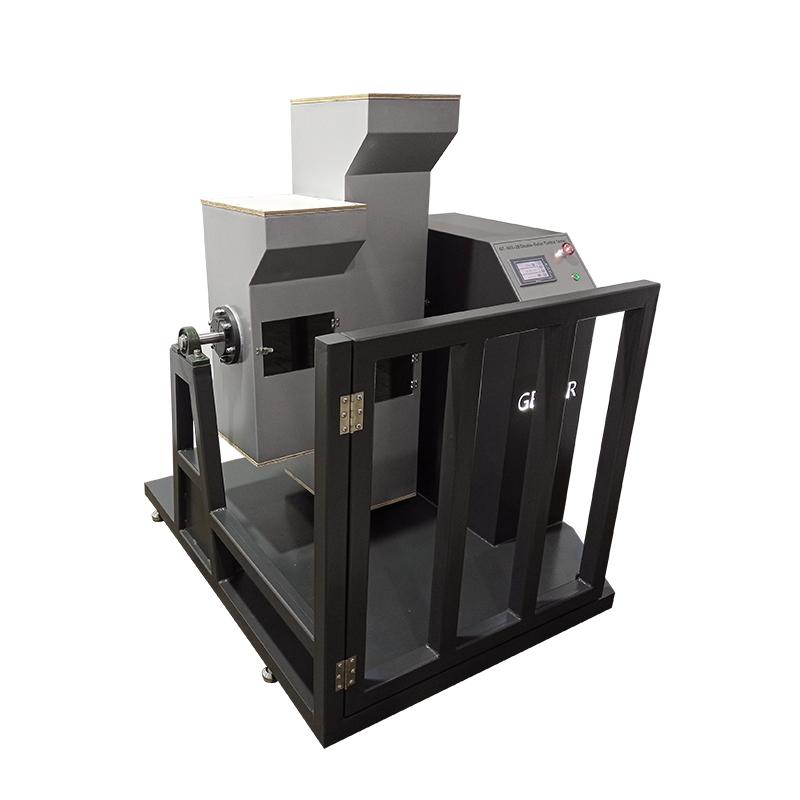

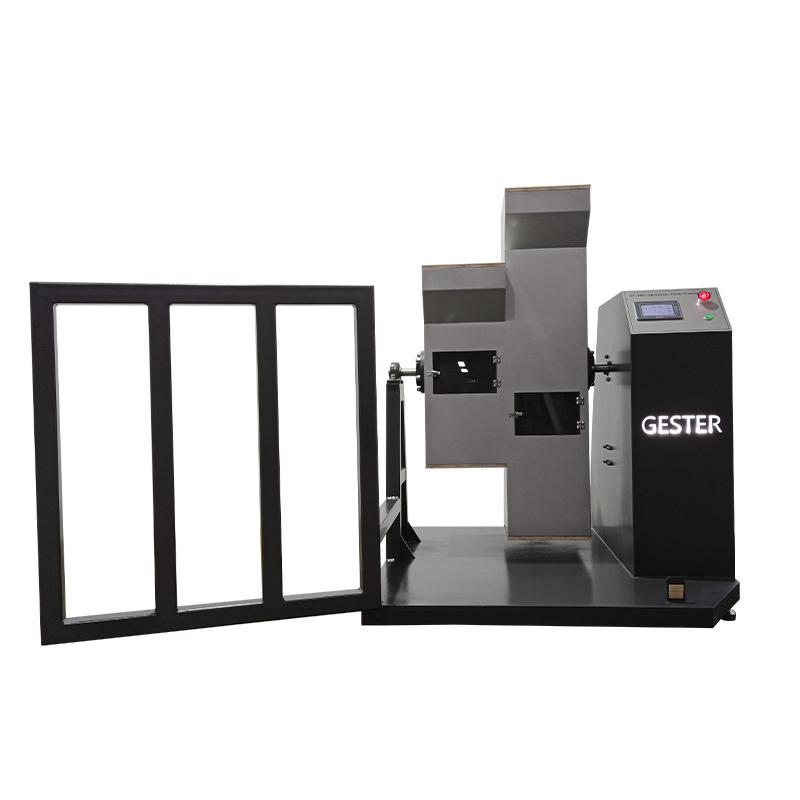

Double-Roller Tumble Tester GT-N03-2



Product Introduction


Application:

Double-Roller Tumble Tester use to the verification of drop resistance of plugs and sockets, non detachable connectors and plug ballasts.


Standards:

GB/T2099.1, GB2423.8-1995, IEC60884-1, IEC60068-2-32:2006, GB2423.7-2018/IEC60068-2-31


Principle

Tumble Tester use the motor drive the rotation of drum, and the sample falls to the specified surface at the specified height repeatedly.


Feature

  1. The electric control cabinet is equipped with a roller structure, the test times can be preset.

  2. Machine will stop automatically when it reach to test times set.



Key Specification


Model

GT-N03-2B

GT-N03-2C

Control Mode

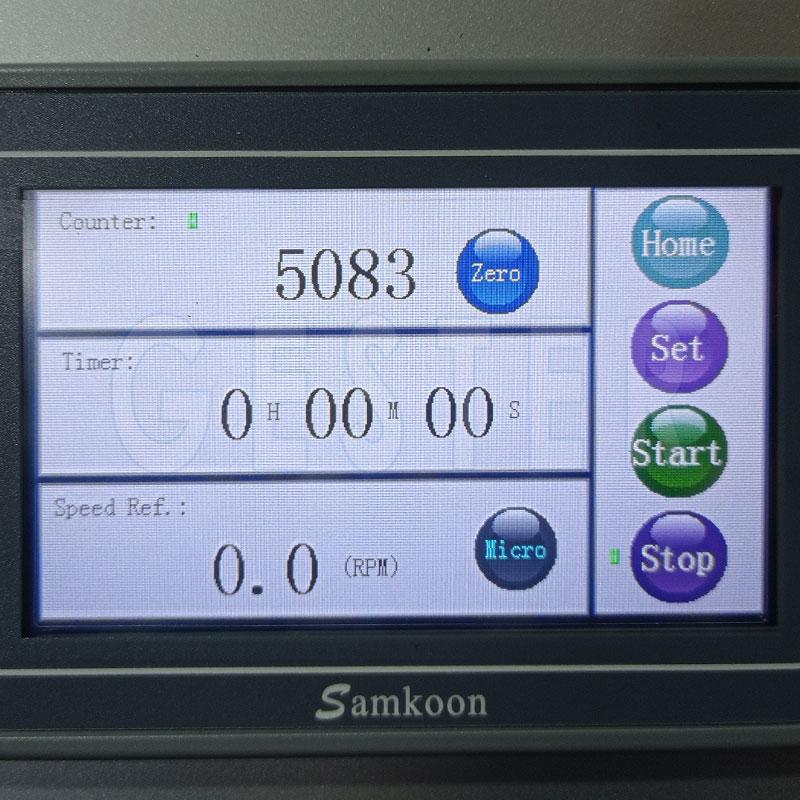

Touch screen control

Drive Mode

Servo motor drive

Roller Material

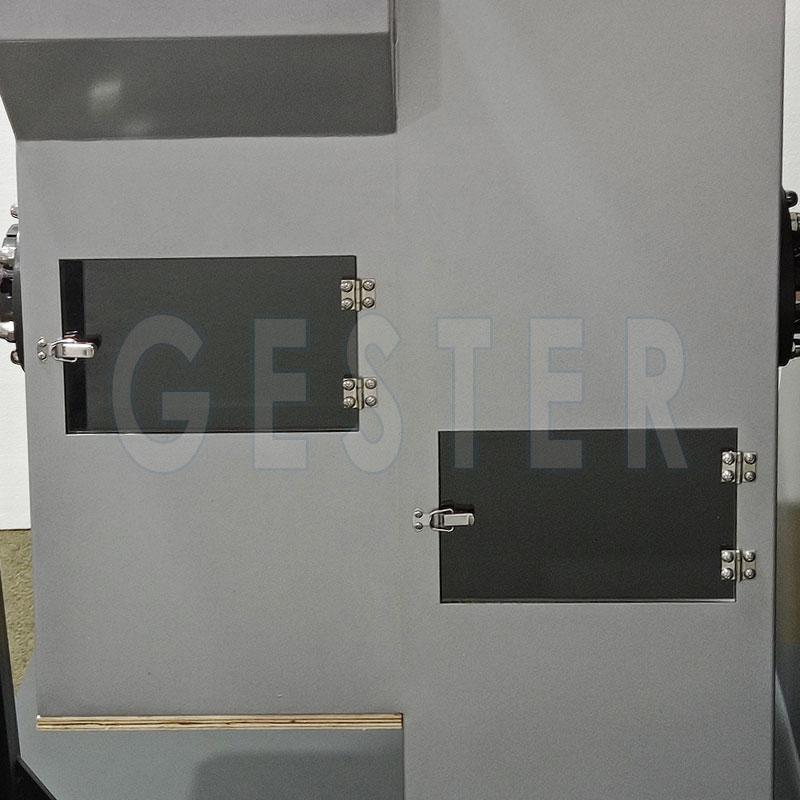

The side is made of 1.5mm high-quality steel plate, the upper and lower side are made from 10-19mm wood plates and it have 3mm steel plates padded on.

Inclined sliding surface is a plastic laminate with a triangular rubber pad.

Working Positions

2 working positions (Double- Roller)

Drop Height

500mm

1000mm

1000mm

1000mm

Rotational Speed

5 rpm

Drop Rate

10 Times/min

Test Times

0~9999 times, can be set

Test Sample

Plugs, sockets and other electrical accessories

Power Supply

AC220V±10%/50-60Hz

Dimensions

Approx. 1100×1200×1300(mm)

Weight

180kg
