Penetration-Resistant Inserts Flexing Tester GT-KB11

Penetration-Resistant Inserts Flexing Tester is used for determine the flex resistance of penetration-resistant inserts for safety shoes.

Brand:
GESTER
Item NO.:
GT-KB11
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
10-30 days

Inquire now

Product Detail

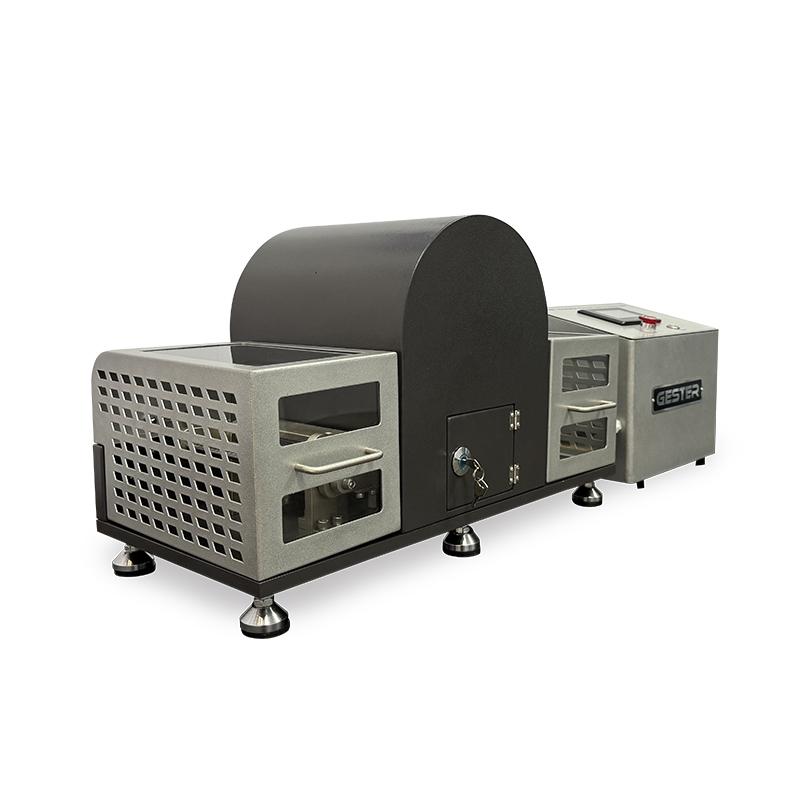

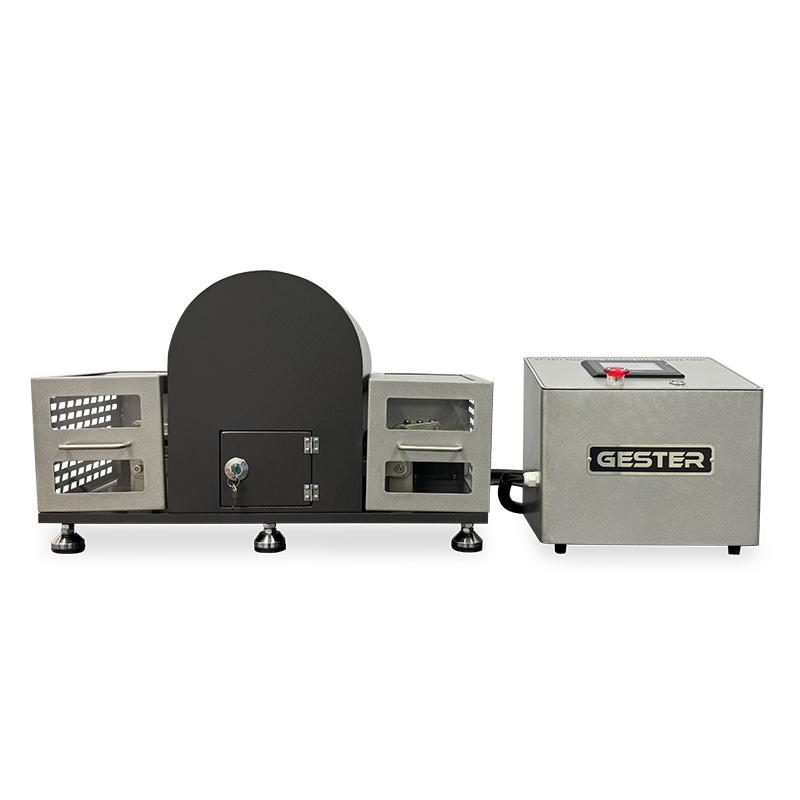

Penetration-Resistant Inserts Flexing Tester GT-KB11

Product Introduction

Application:

Penetration-Resistant Inserts Flexing Tester is used to determine the flex resistance of penetration-resistant inserts for safety shoes.

Standards:
EN ISO 20344-2021 Section 5.12, AS/NZS 2210.2 Section 5.9, GB/T 20991 Section 5.9,
ISO 22568-3-2019 Section 5.2, ISO 22568-4-2021 Section 5.2, EN 12568
ASTM F2412 section 11.7, ASTM F2413 Section 5.7.5, CAN/CSA Z195-14 Section 6.3.2

Key Specifications

Model	GT-KB11

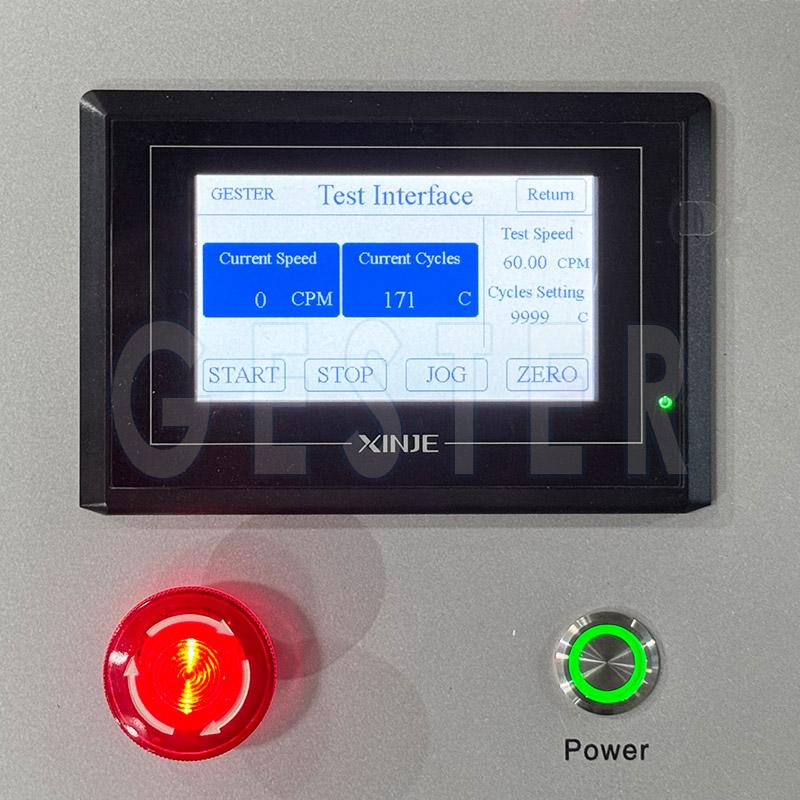

Control mode	PLC Touch screen
Drive mode	Servo motor
Bending stroke	33mm

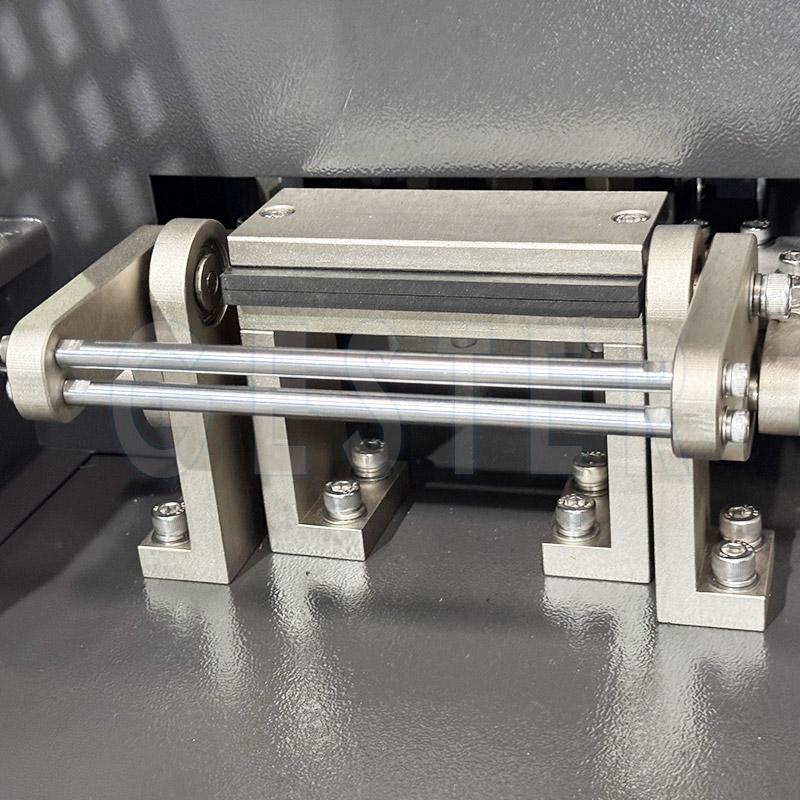

Distance between guide rod and fixture	70mm
Test speed	960 CPM
Test times	106times
Power Supply	1∮AC220V 50HZ 5A
Dimensions(LxWxH)	Main machine: 700×360×440mm Controller: 250×230×250mm
Weight	83kg
Standard Accessories	Power line 1pc
