Heat Resistance Contact Tester GT-KB24

Heat resistance tester

is used for determine the ability of shoe materials to withstand the heat due to shoe making operation.

Brand:
GESTER
Item NO.:
GT-KB24
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
10-30 days

Inquire now

Product Detail

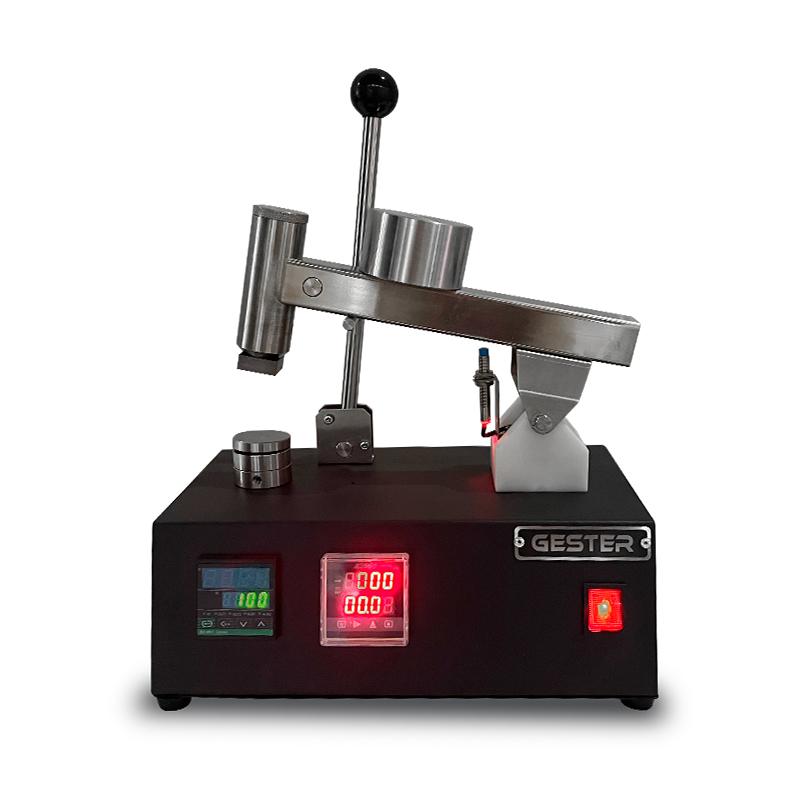

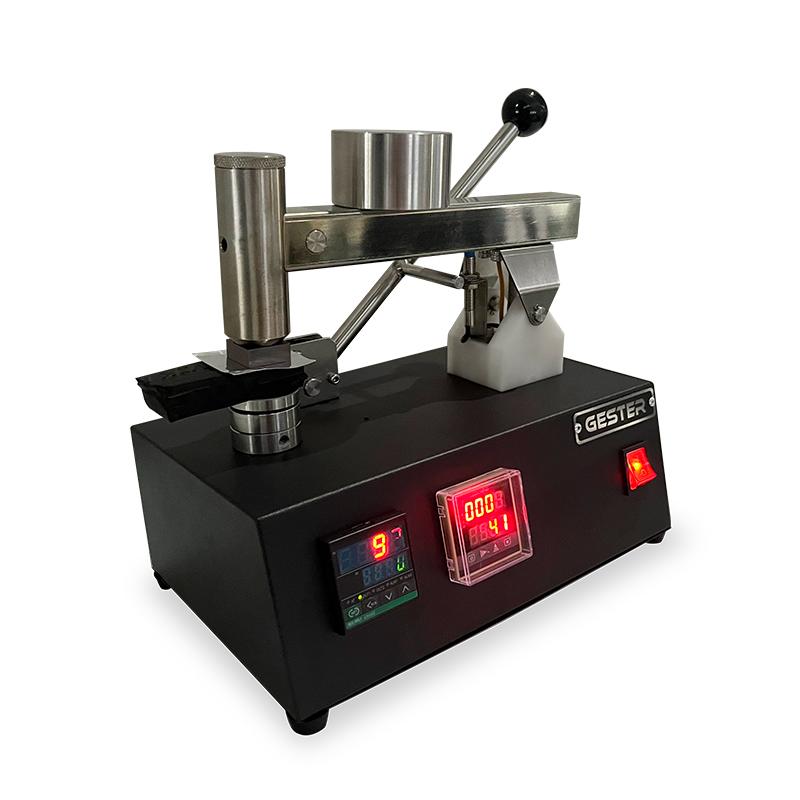

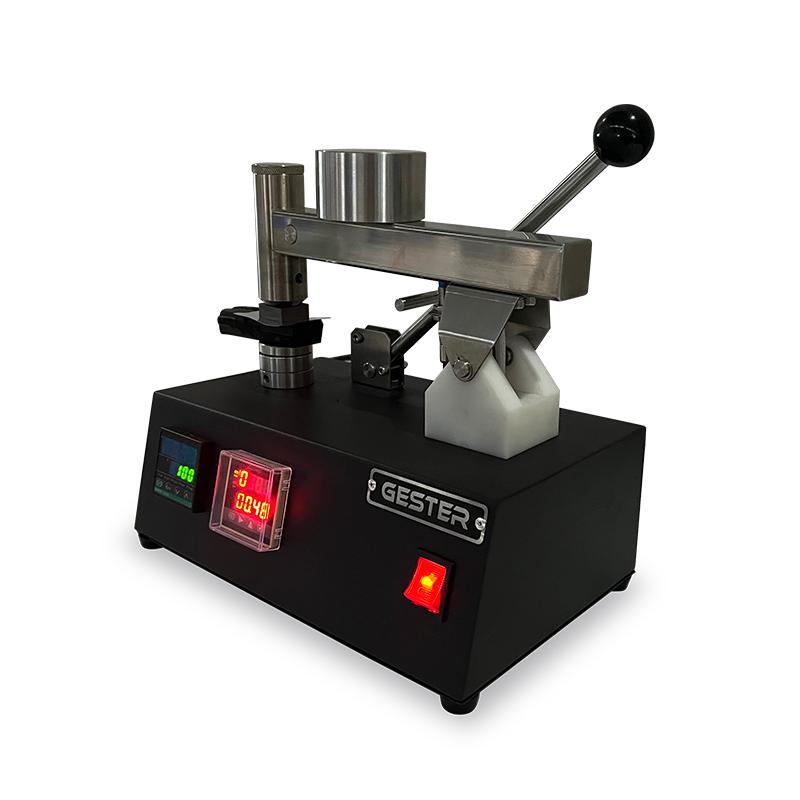

Heat Resistance Contact Tester GT-KB24

Product Introduction

Application:

This Heat Resistance Contact Tester is used for determine the ability of shoe materials to withstand the heat due to shoe making operation such as embossing, crimping, toe and seat flagging, hot blasting etc.

Standards:

EN-344-1 section 5.18, SATRA TM49, GB/T 20991 section 8.7, AS/NZS 2210.2 section 8.7,

ISO 20344-2021 section 8.9, BS 5131 Part2.11

Dimensions

Feature

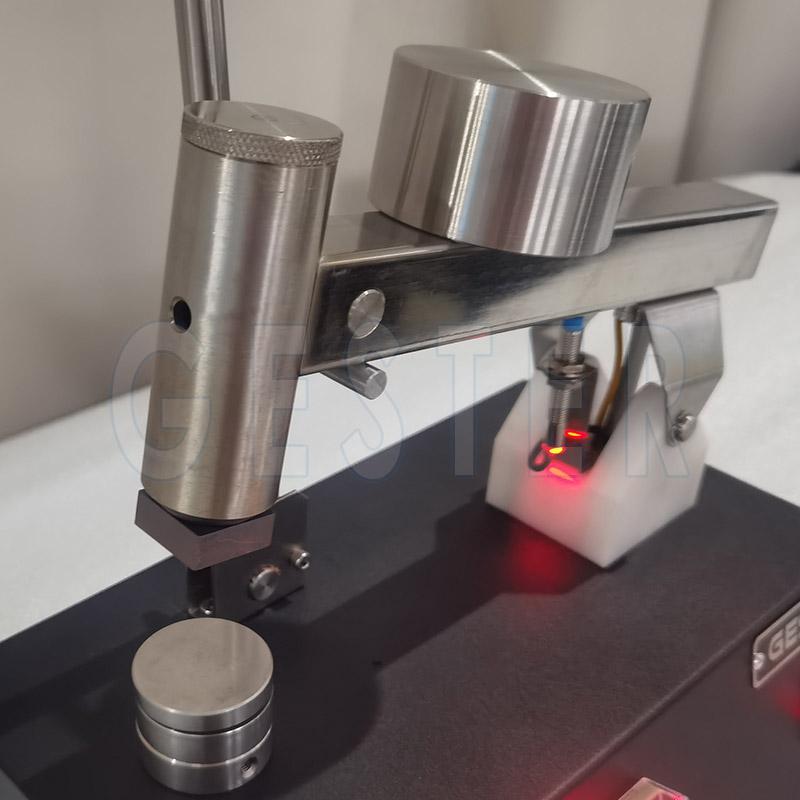

1. Copper test head, heat-resistance,wear-resistance, corrosion-resistance.

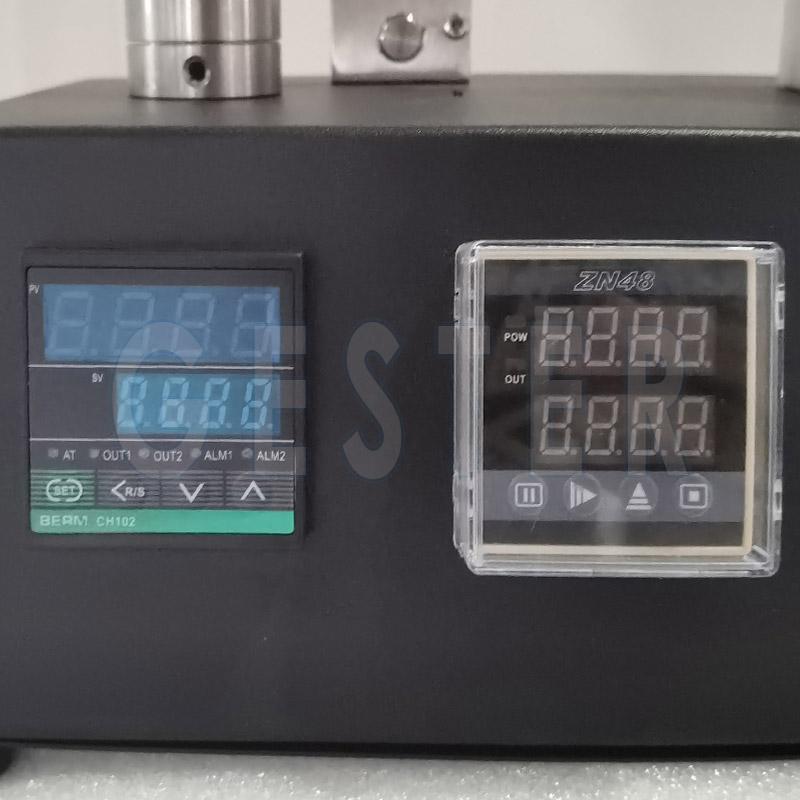

2. Equip with temperature controlled device, automatically control heater temperature.

3. Heat Resistance Contact Tester equip with air-bubble level to indicate whether machine in level.

Key Specifications

Model	GT-KB24
Cylindrical copper body	Mass 200±20g, Lower end surface 25.5 x 25.5 mm
Metal heating block	530±50g
Test pressure	20±2kPa
Test Time	60s
Temperature range	RT-----400℃
Specimen size	70 x 30mm
Power line	1∮AC 220V 50/60HZ 3A
Dimensions( L x W x H)	300x180x300mm
Weight	40 kg
Standards	EN-344-1 section 5.18 , SATRA TM49 GB/T 20991 section 8.7 , AS/NZS 2210.2 section 8.7 ISO 20344-2021 section 8.9 , BS 5131 Part2.11
