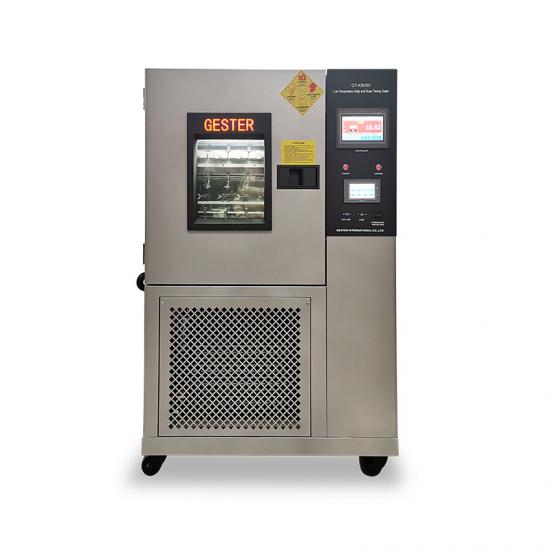

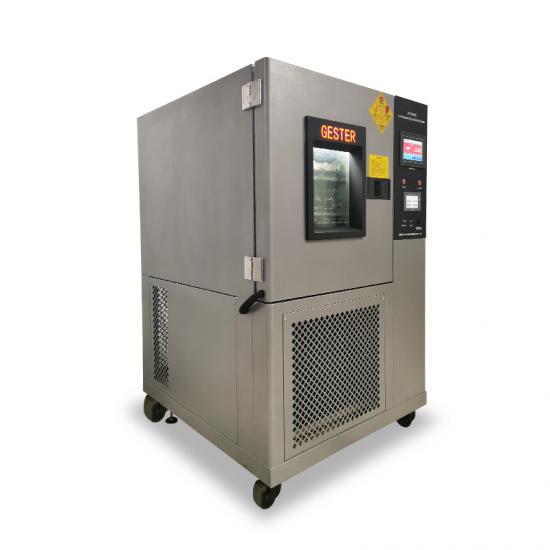

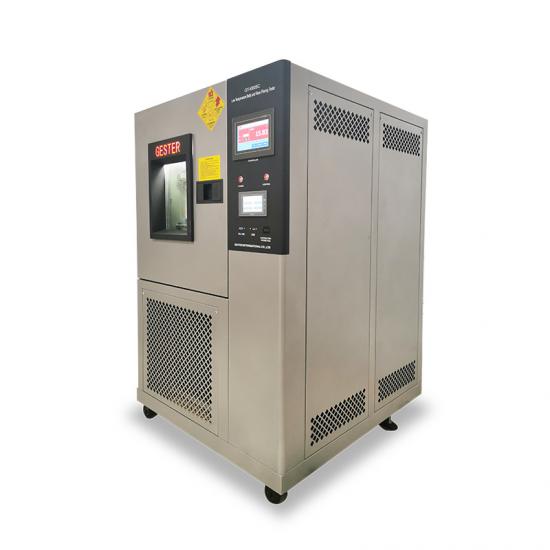

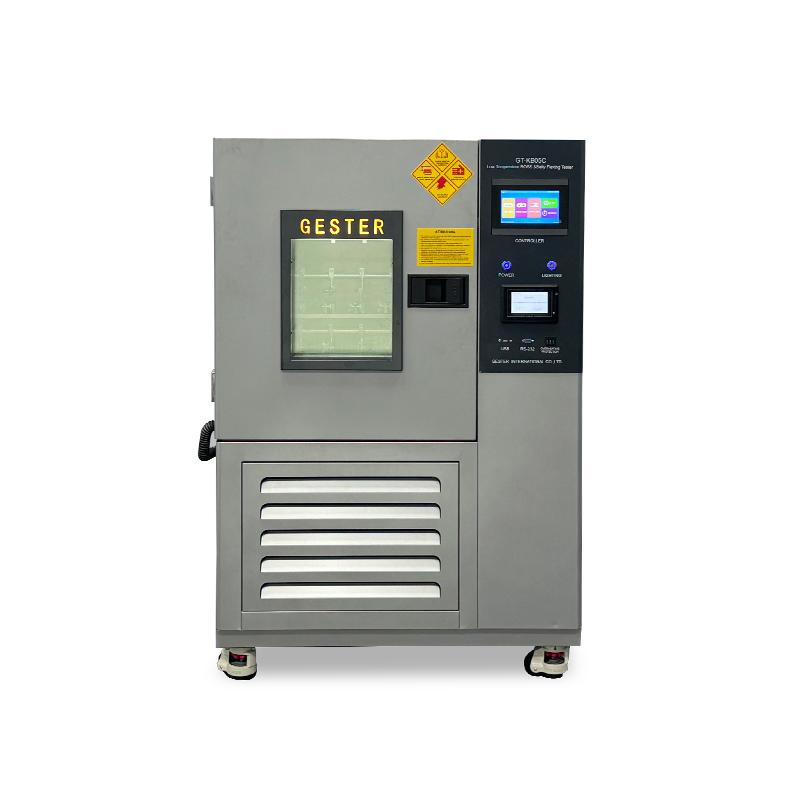

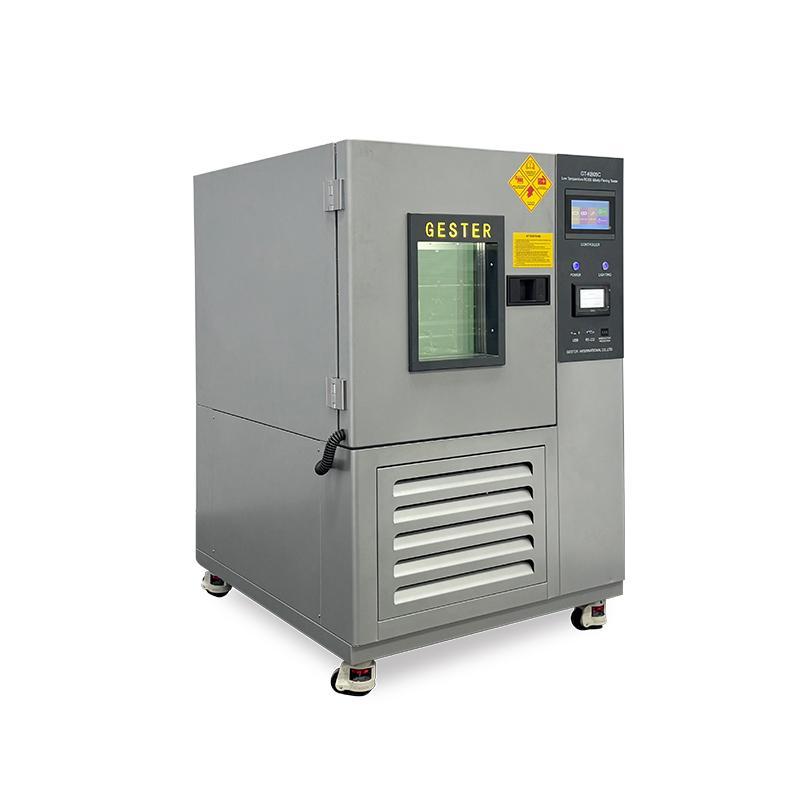

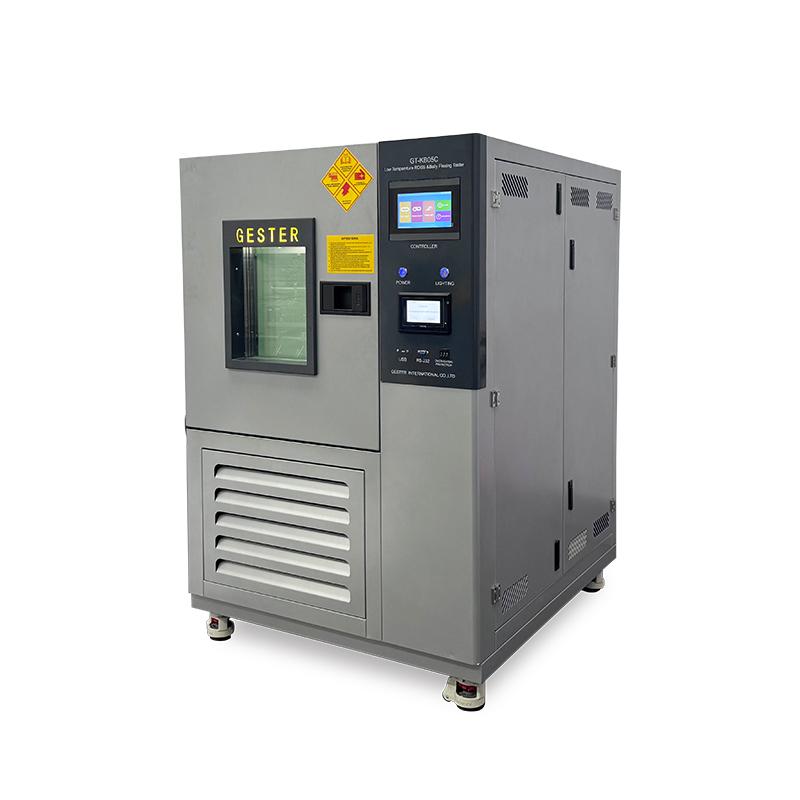

Low Temperature Bally & ROSS Resistance Flexing Tester GT-KB05C

Low Temperature Bally & ROSS Resistance Flexing Tester to determine the resistance of a material to cracking or other types of failure at flexing creases.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB05C
  • Order(MOQ):

    1
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 days
  • Product Detail

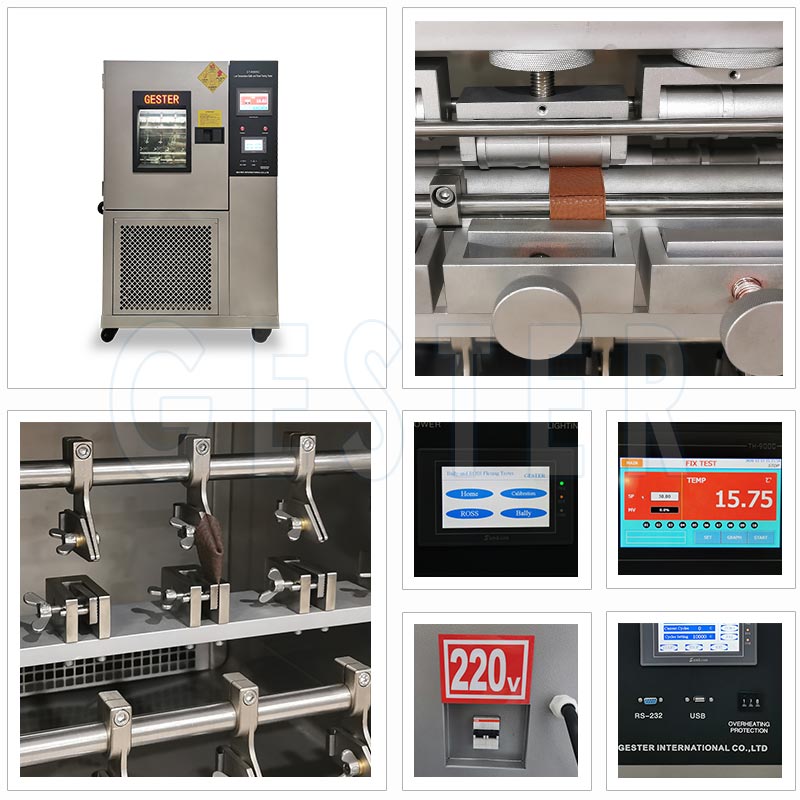

Low Temperature Bally & ROSS Resistance Flexing Tester GT-KB05C

Product Introduction

Application:
Low Temperature Bally & ROSS Resistance Flexing Tester to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.



Feature

  • Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
  • Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
  • With vacuum glass observation window, more effective to observe the testing situation.
  • Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
  • Low Temperature Bally & ROSS Resistance Flexing Tester Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groups.
  • The flexing system has separate controller with function of power off memory and automatical stop when test done.
  • All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.



Key Specification



Model

            GT-KB05C

Flexing Parameters

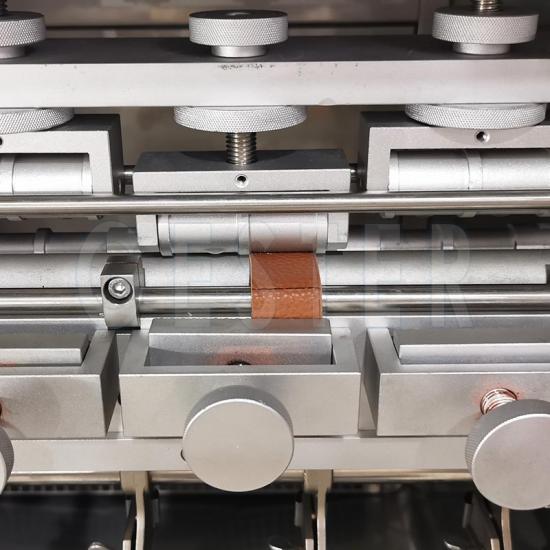

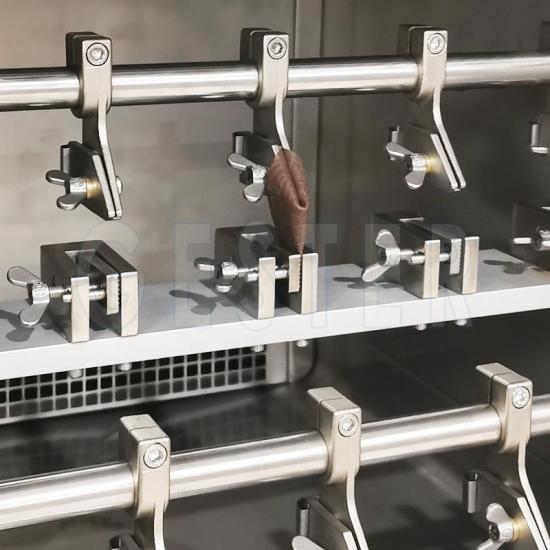

Types of Test Grips

ROSS flexing

Bally flexing

Number of Position

5Sets

10Sets

Flexing Speed

60cpm

100cpm

Bending Angle

90°

22.5°

Counter

Touch Screen, 0 - 999,999.( Adjustment)

Control System

Touch Screen Programmable Microprocessor Control

Temperature Range

-40~100℃

Inside Chamber Capacity

150L

Chamber Material

SUS # 304 Stainless Steel and Painted

Power Supply

1∮AC220V 50/60HZ

Weight

About 420kg


Standards:

For Bally Flexing Resistance Test

SATRA TM 55; IULTCS/IUP 20-1;

ISO 17694 ; EN 13512 ;

EN344-1 section 5.13.1.3 and annex C;

EN ISO 20344 section 6.6.2.8;

GB/T20991 section 6.6.2.8;

AS/NZS 2210.2 section 6.6.2.8;

JIS-K6545; BS 3144 Clause 13

Equipped with A type of upper grips.

ISO 32100 ; DIN53351; ISO5402-1;

GE-24;ASTM D 6182,

EN ISO 20344-2021 section 6.6.3;

Equipped with B type of upper grips.

For ROSS Flexing Test

ASTM D1052, SATRA TM60, BS5131 : 2.1,GB 20265, ISO 5423, HG/T2411, ISO4643,

EN ISO 20344-2021 section 8.7, 8.8.4



Accessories:

Standards Accessories

1pc

Chisel cutter (2mm)

1pc

Chisel cutter (2.5mm) for ASTM D1052

Optional Accessories

Optional

GT-KD20 Pneumatic Sample Cutting Machine

(Cutter: 70 ± 5 x 45 ± 5 mm)


Low Temperature Bally & ROSS Resistance Flexing Tester GT-KB05C
