Loading point template, a template, which consists of two shaped members fastened together by a pivot at one end.
Brand:
GESTERItem NO.:
GT-LB01-1Order(MOQ):
1Payment:
T/T ,L/CLead Time：
20-30 daysProduct Detail

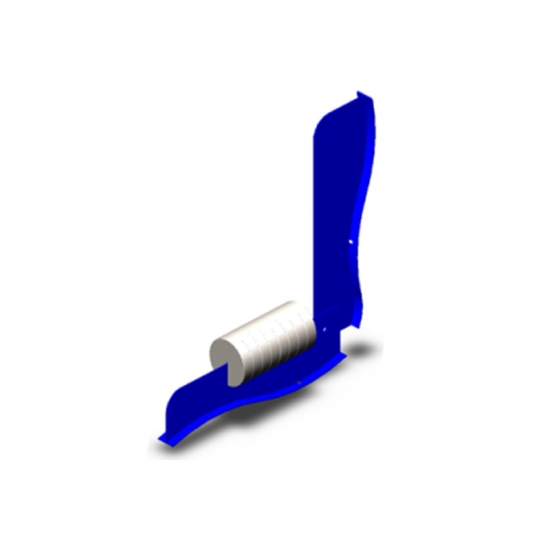

Loading Point Template GT-LB01-1
Application: A template, which consists of two shaped members fastened together by a pivot at one end .The contours of the shaped surfaces are so devised as to sink into the upholstery. For this purpose the seat loading arm shall have a mass of 20 kg applied at the seat loading point.
Standards: EN 1728 Section 5.1 , EN 1022 Section 4.6, BS5459-2-2000 Section A3.2 , EN581-2, GB10357-3-2013 Section 3.1; ISO7173-1989 Section 6.10 |
Model |
GT-LB01-1 |
Material |
Steel |
Dimension (L×W×D) |
600×500×50mm |
Weight |
33kg |
Standard Accessories |
20KG weight 1set |

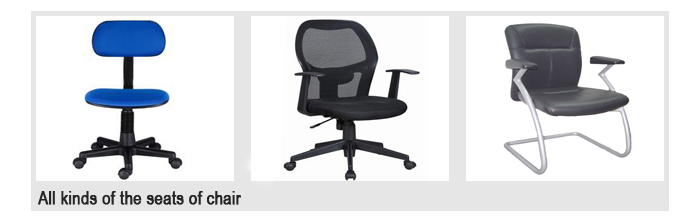

All kinds of seats with pedal of chair can be tested on the Loading Point Template
