Laboratory Stenter-Horizontal Type GT-D21A-1

Laboratory Stenter apply in laboratory to simulate the process of dyeing in the workshop.
  • Brand:

    GESTER
  • Item NO.:

    GT-D21A-1
  • Order(MOQ):

    1
  • Lead Time:

    15-30 days
  • Product Detail

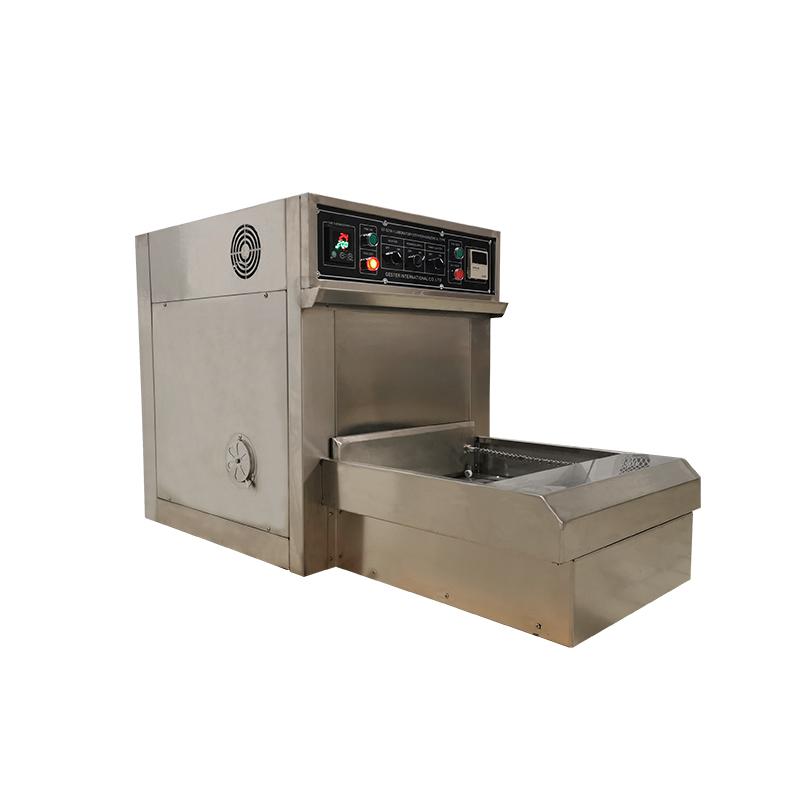

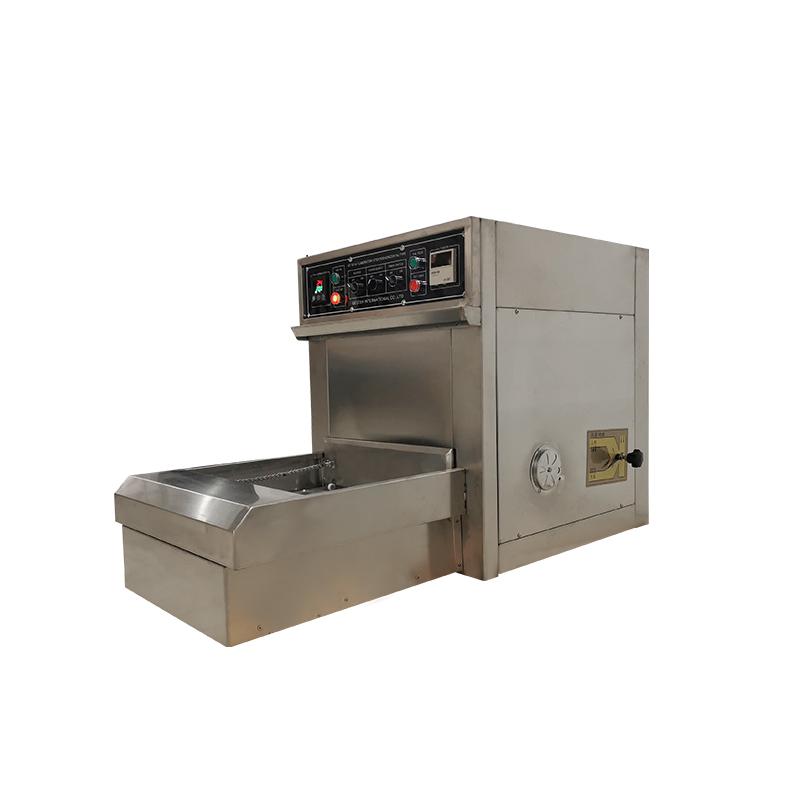

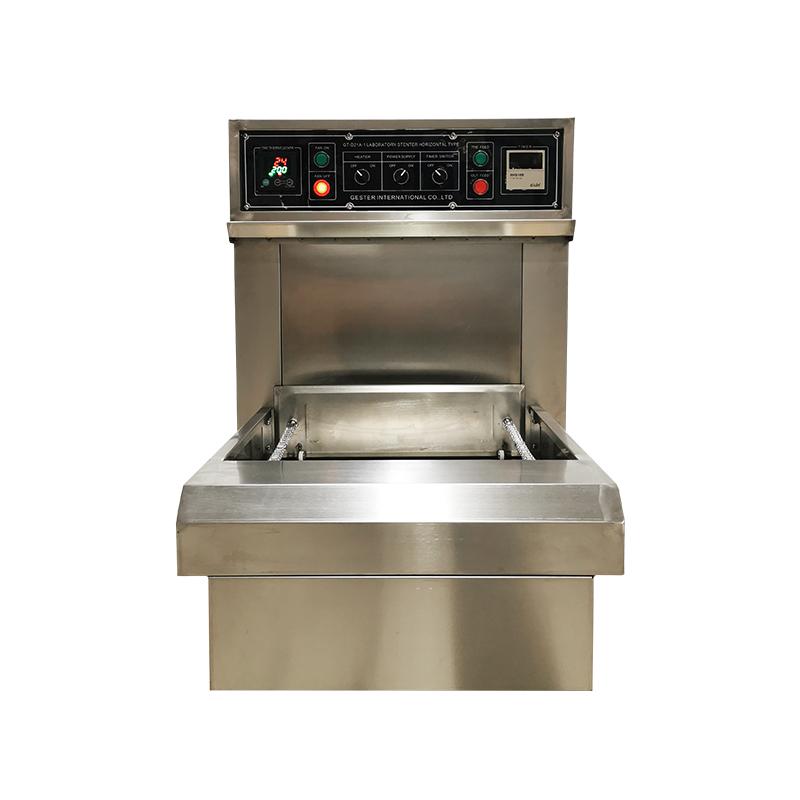

Laboratory Stenter - Horizontal Type



Product Introduction


Application:

It's apply in laboratory to simulate the process of dyeing in the workshop. Carrying through the resin melt dyeing baking test, and obtain and verify the recipe and technological conditions of dyeing materials and auxiliaries. Get the right finished product by testing the hand-feel, the discoloration degree and color fastness of specimen. And this machine can also use in hot fix color method and printing drying.



Feature
  • Brushed stainless steel construction, good heat-insulated performance.
  • Cyclic hot air system, automatic temperature control.

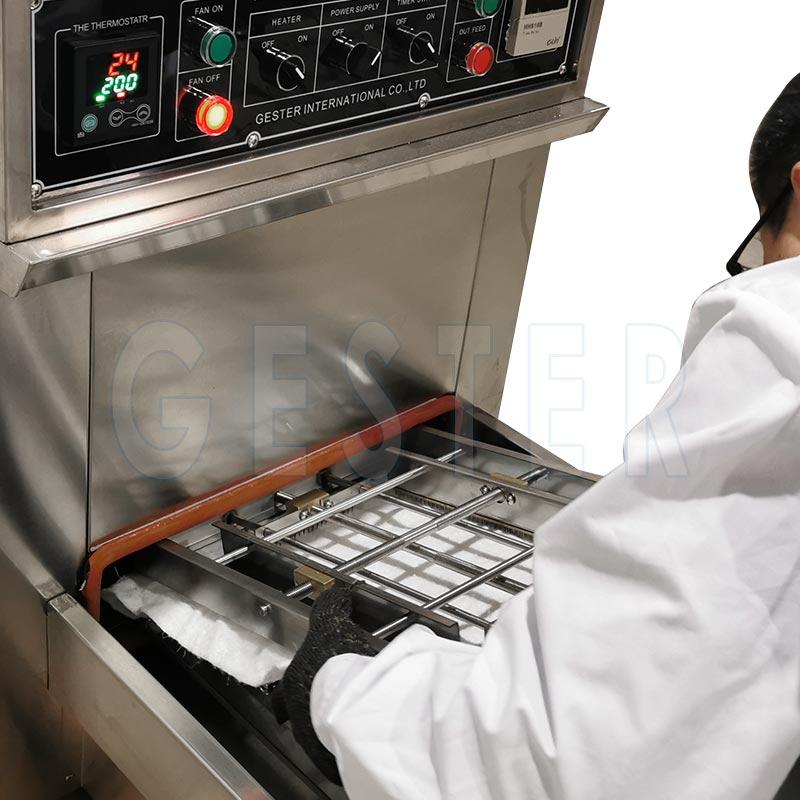

  • Pin-frame automatically transported into the drying chamber with adjustable load times from 1-999s, audible alarm when loading complete.

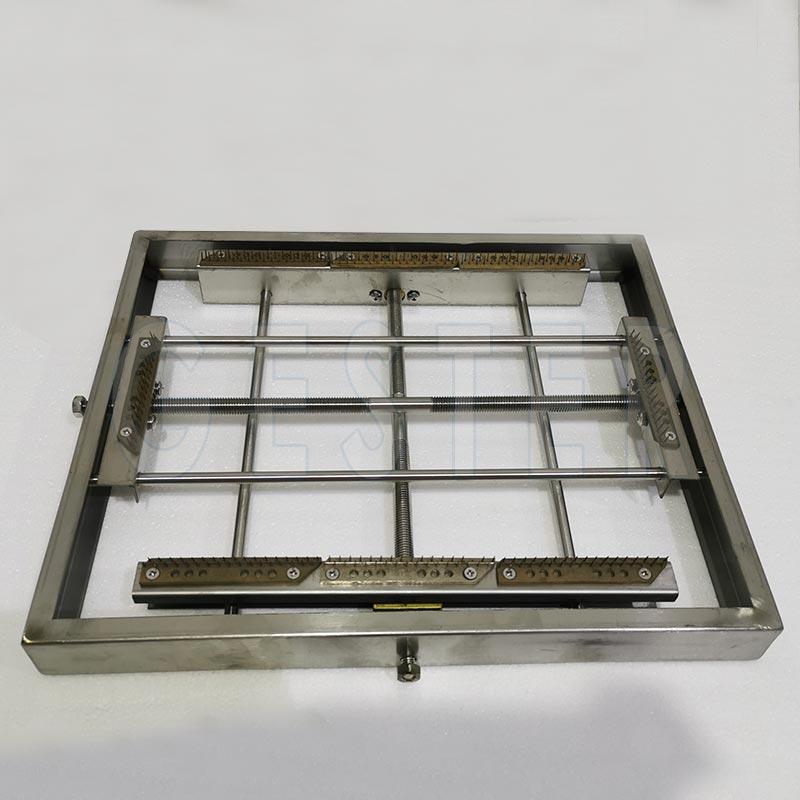

  • Four-direction adjustable pin-frame, to mount the samples with various tension as required.



Key Specifications



Model

GT-D21A-1

Temperature range

20-250℃

Testing time range

1-999s

Pin-frame size

340 x 400mm

Effective pin-frame size

Min. 95mm x 160mm

Max. 275mm x 335mm

Power supply

3∮AC 380V 50/60HZ

Dimensions

1320* 660 * 800mm (L x W x H)

Weight

160kg
