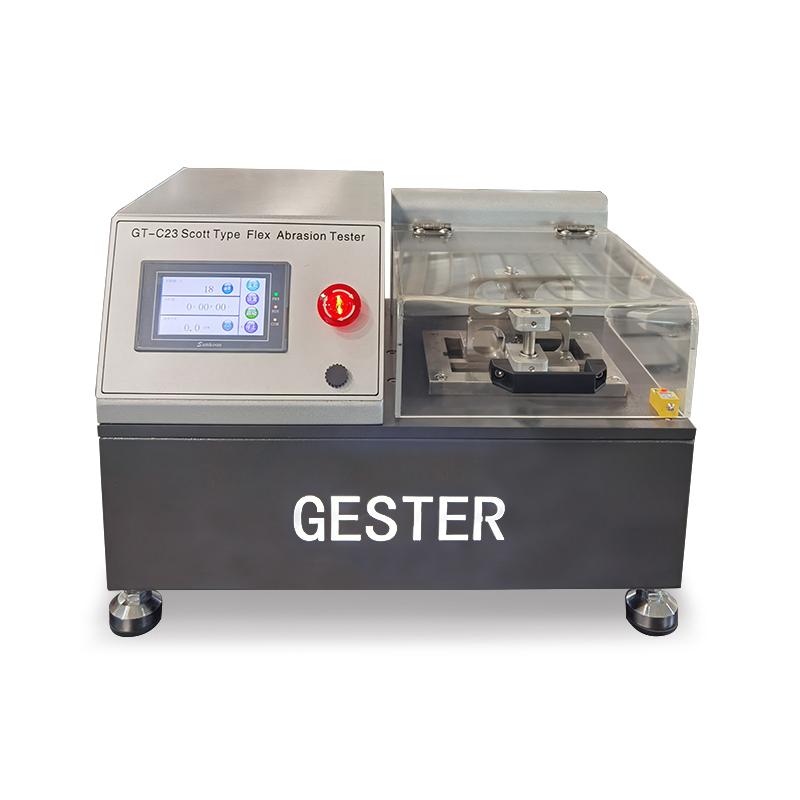

ISO 5981 Scott Type Flex Abrasion Tester GT-C23

This ISO 5981 Flex Abrasion Tester is evaluated the resistance to combined shear flexing and rubbing of rubber or plastics-coated fabrics.
  • Brand:

    GESTER
  • Item NO.:

    GT-C23
  • Order(MOQ):

    1
  • Payment:

    TT or L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    25 days
  • Product Detail

ISO 5981 Scott Type Flex Abrasion Tester GT-C23

Product Introduction

Application:

Flex Abrasion Tester GT-C23; This Tester is evaluated the resistance to combined shear flexing and rubbing of rubber or plastics-coated fabrics.


Standards:
ISO 5981


Test Principle

The sample is subjected to Continuous bending. Then the bent portion will be subjected to a series of flexing and rubbing, and observe the wear pattern of sample visually.


There are 2 methods:

Pressure method(A) and without application of the pressure foot(B).

Pressure method(method A): Forced by application of a pressure foot. And the sample is damaged by the friction of the platen. Thus testing resistance to combined shear flexing and rubbing. It is for materials with sticky surfaces, light coatings such as polyurethanes on rough surfaces.


without application of the pressure foot(method B): Rubbing is caused by simple contact between the faces of the test pieces.Then evaluated the resistance to combined shear flexing and rubbing coated samples.




Key Specifications


Model

GT-C23

Distance between clamps

12 mm ± 0.3 mm

Amplitude of movement

40 mm ± 1 mm

Test Speed

144180 times/min(2.43.0Hz

Pressure foot

(100±1)×)10±0.2)mm

Load applied through the foot

5 ± 0.1 N, or 10 N ± 0.2 N by addition of a supplementary load

Sample Size

(100±0.25)×(50±0.25)mm

Power supply

AC 220V 50/60HZ

Dimensions

39cm×50cm×23cm (L x W x H)

Weight

40kg

Standards

ISO 5981
