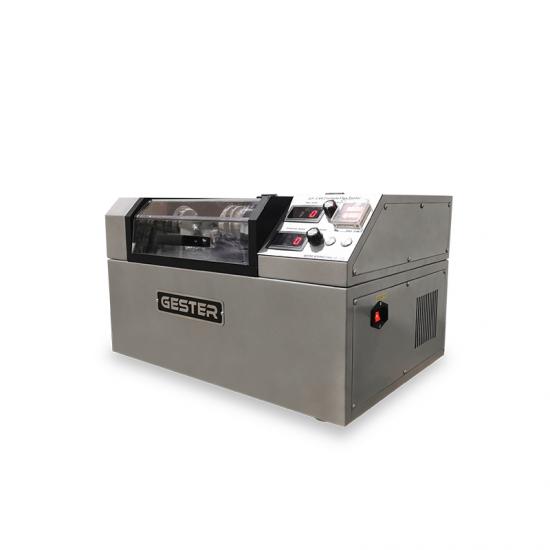

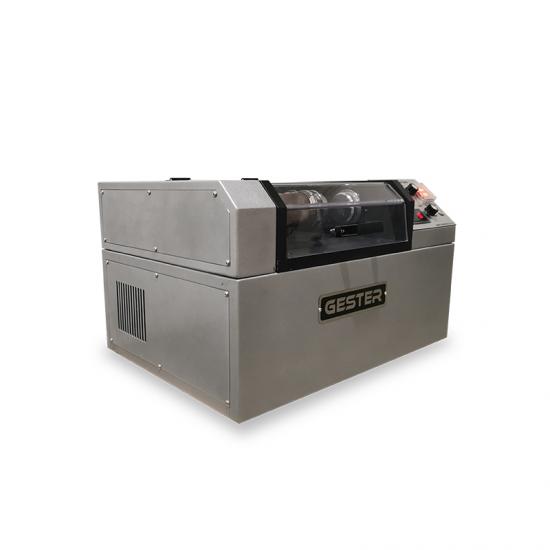

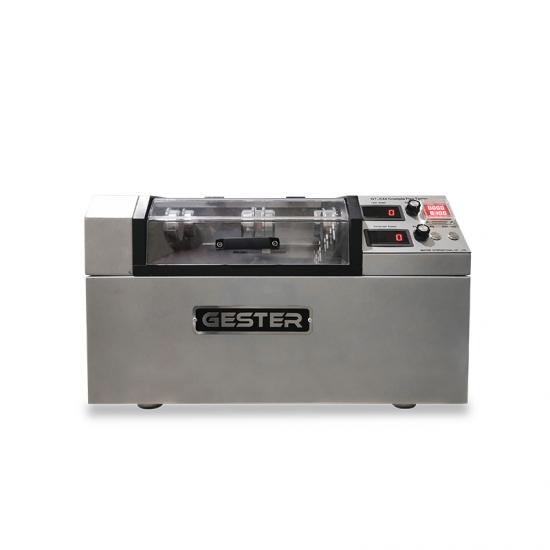

Crumple Flex Tester GT-C44

Crumple Flex Tester is suitable to determine resistance to damage by crumpling and flexing method for rubber or plastics coated fabrics.

  • Brand:

    GESTER
  • Item NO.:

    GT-C44
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

Crumple Flex Tester GT-C44


Product Introduction

Application:

Crumple Flex Tester is suitable to determine resistance to damage by crumpling and flexing method for rubber or plastics coated fabrics.


Standards:
BS 3424 P9-Method C, ISO 7854-Method C, GB/T 12586


Dimensions

Crumple Flex Tester GT-C44



Structure

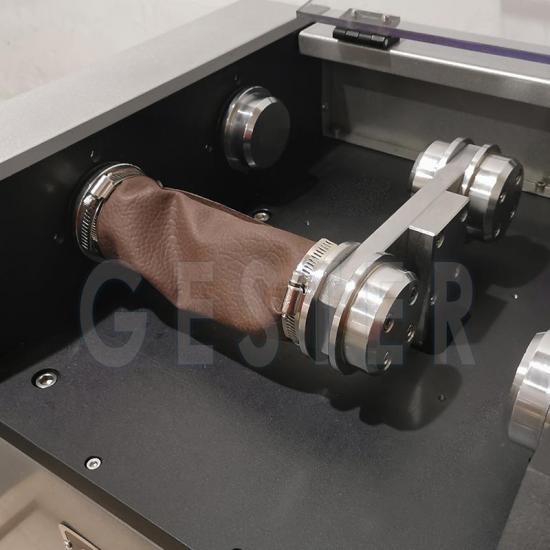

A rectangular test piece of coated fabric is sewn into a cylindrical shape. The cylinder of coated fabric is mounted between two discs and secured into position. One of the discs oscillates and its axis through approximately 90°. This includes twisting in the coated-fabric test piece cylinder. At the same time, the other disc reciprocates along its axis, thus causing the cylindrical test piece to compress along its length. This twisting and simultaneous compressing of the cylindrical test piece is continued for either a pre-set number of cycles or until damage to the test piece is apparent.



Key Specifications


Model

GT-C44

Test Positions

4

Disc

Diameter: 63.5mm, Width: 15mm

Rotational Speed

200±10r/min(3.33Hz±0.17Hz)

Rotational Angle

90°±2°

Compression Speed

152±4r/min(2.53Hz±0.07Hz)

Compression Stroke

70mm

Cylinder Flanges Inner Side Distance

Max.180±3mm

Dimension of Test Piece

220x190mm,

Each piece in longitudinal in transverse direction

Sewing size of Test Piece

Cylindrical Shape, length 190 mm, inner diameter 64 mm

Counting

0 ~ 999 999 times, settable

Dimensions (WxDxH)

57x39x42cm

Weight

≈60Kg

Power Supply

1∮ AC 220V 50/60Hz 3A

Standards accessories

1pc

Sampling plate

8pcs

Hose clamp
