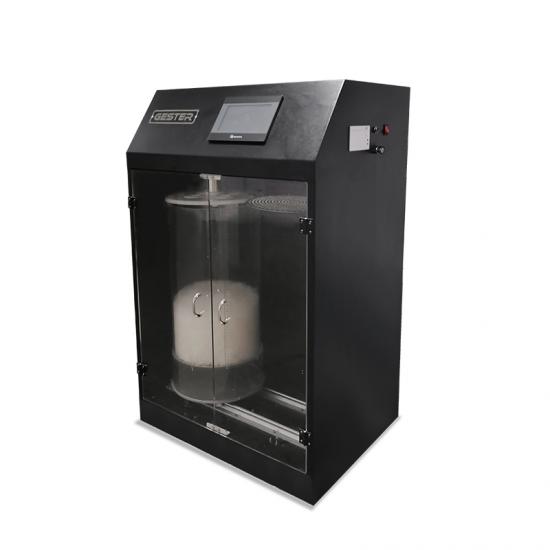

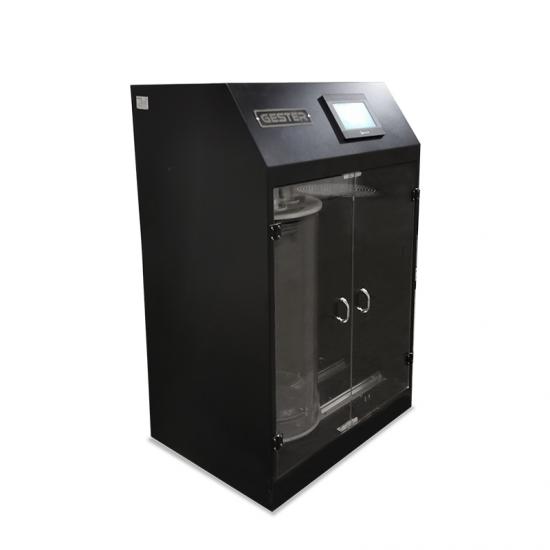

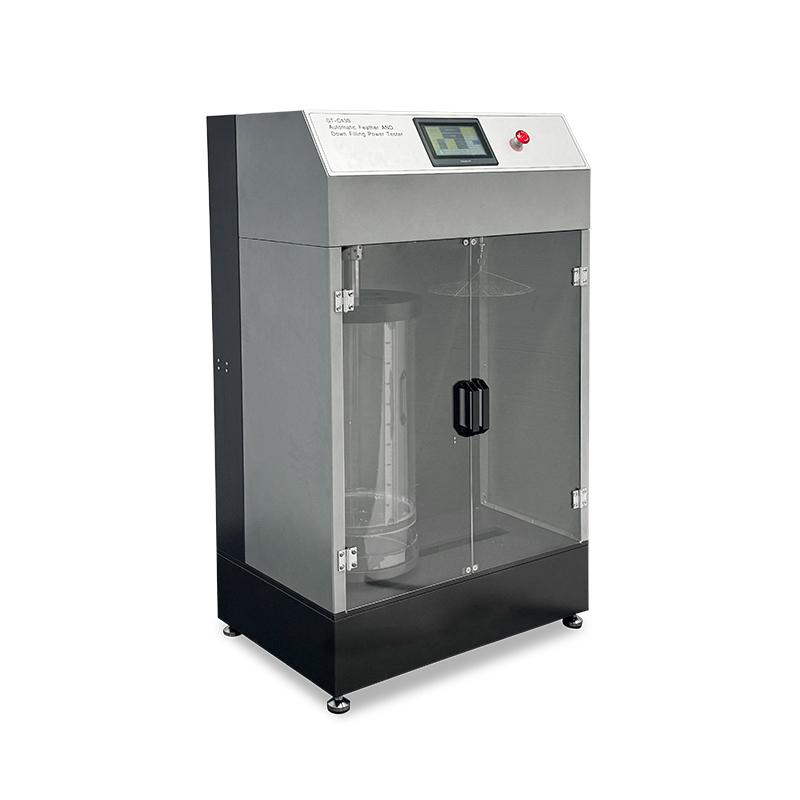

Automatic Feather and Down Filling Power Tester GT-C43B

Feather and Down Filling Power Tester is applied to determine the filling power of feather and down, and product filling materials

  • Brand:

    GESTER
  • Item NO.:

    GT-C43B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    China Port
  • Lead Time:

    20-30 Days
  • Product Detail

Automatic Feather and Down Filling Power Tester GT-C43B



Product Introduction


Application:

Feather and Down Filling Power Tester is applied to determine the filling power of feather and down, and product filling materials.


Standards:

IDFB Part 10-B(IDFB), FZ/T 80001, JISL1903, BS EN12130


Features


1.It adopts color touch screen display, man-machine dialogue and convenient operation.

2.Unique filter ventilation design, automatic switch between blowing and sucking positions, to ensure that feathers do not fly around, prevent the health of operators.

3.The test speed can be set, suitable for different standards, and the transmission structure adopts servo motor system, which makes the height precision of the bulkiness more precise.

4.The original zero position system ensures the accuracy of the data.

5.Adopt high-precision sensor, ARM 32-bit microprocessor, AD company 16-bit A/D acquisition level, accurately sense the position of the pressure plate, accurately calculate the test results, can be applied to multiple standards.

6.The automatic wind speed design system ensures that the feather is in the natural fluffy state, which makes the data of each measurement have better authenticity and reproducibility.

7.The test process is completed with one click, without manual replacement of the test bucket and timing measurement.

8.Fully automated testing, no need to manually replace the test bucket.


Automatic Feather and Down Filling Tester Key Specifications



Model

GT-C43B

Measurement Accuracy

0.1mm

Height

750 mm, Conforms to New National Standard.

Test Speed

0~1000 mm/min, Can Be Set

Cylinder inner diameter

Standard Accessories

Ф288 mm(BSEN12130,IDFB)

Option Accessories

Ф290 mm (JISL 1903),Ф240 mm (FZ/T80001)

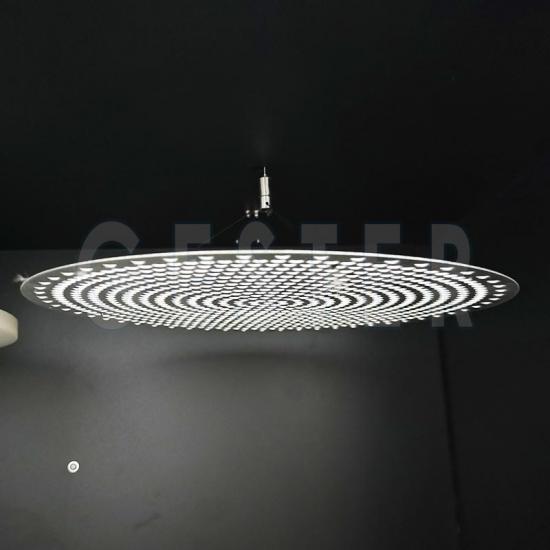

Test Platen

Standard Accessories

94.25g: Ф284 mm(BSEN12130, IDFB),

material: aluminium sheet

Option Accessories

120 g: Ф285 mm (JISL 1903), 68.4g :Ф 240mm (FZ/T80001)

material: aluminium sheet

Air Supply Velocity

240L/S , Can Be Adjusted.

Compressing Plate Up and Down Speed

1~1000mm/min, Can Be Set.

Descent Speed of Compressing Down

1-1000mm/min, Can Be Set.

Time of Blowing

0-999s, Can Be Set.

Time of Compressing

0-999s, Can Be Set.

Power Supply

AC220V±10% 50/60Hz 100W

Mainframe Dimensions (L×W×H

50×55×120 cm

Weight

50kg


Accessories:

Calibration Weight: 100g

1pc



Test Cylinder: Ф288 mm (BSEN12130)

1pc



Test Platen: 94.25g, Ф284 mm

1pc



Test Cylinder: Ф290 mm (JISL 1903)

1pc

optional

Test Platen: 120 g, Ф285 mm (JISL 1903)

1pc

optional

Test Cylinder: Ф240 mm (FZ/T80001)

1pc

optional

Test Platen: 68.4g, Ф 240 mm (FZ/T80001)

1pc

optional



Application Industry

All kinds of materials can be tested by the Automatic Feather and Down Filling Power Tester

Automatic Feather andDown Filling Power Tester
