Aircraft Material Vertical and Horizontal Flammability Tester GT-C54

FAR25.853 Flammability Tester
  • Brand:

    GESTER
  • Item NO.:

    GT-C54
  • Order(MOQ):

    1
  • Payment:

    TT or L/C
  • Product Detail

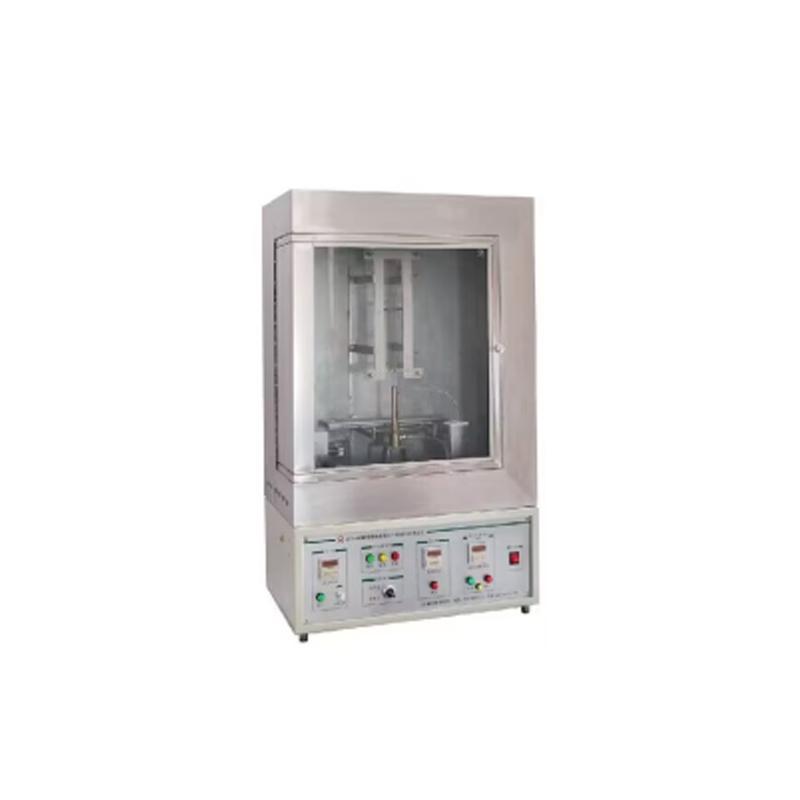

Aircraft Material Vertical and Horizontal Flammability Tester GT-C54



Product Introduction

Application

This machine applied to test the flammability of the aircraft interior trim and materials. It’s widely used in printing and dyeing industry, aircraft interior trim production department, textile testing department and research and development institution.


Standards

FAR25.853


Feature
  1. Pulse ignition.

  2. Ignition timing: 0~99.99(settable).

  3. Afterflame time, afterglow time, droplet burning time can be recorded automatically and show by digital display.

  4. The height of the flame is adjustable.

  5. The air inlet pressure of the igniter is adjustable.

  6. Integrated vertical and horizontal testers.


Key Specifications



Model

GT-C54

Diameter of the igniter nozzle

(9.5±0.3)mm

Flame temperature

1550°F

Fuel gas

99% methane (Equipped by user)

Timer of afterflame and afterglow

0~9999.9 seconds, accuracy: ±0.1s

Distance between the front part of specimen and igniter

19mm

Size of the specimen

Vertical Specimen Size:76mm*305mm

Horizontal Specimen Size:254mm*100mm

Power Supply

AC 220V 50/60HZ
