Automatic Paper Thickness Tester GT-N19B

Automatic Paper Thickness Tester | paper testing equipment manufacturer supplier
  • Brand:

    GESTER
  • Item NO.:

    GT-N19B
  • Order(MOQ):

    1
  • Product Detail

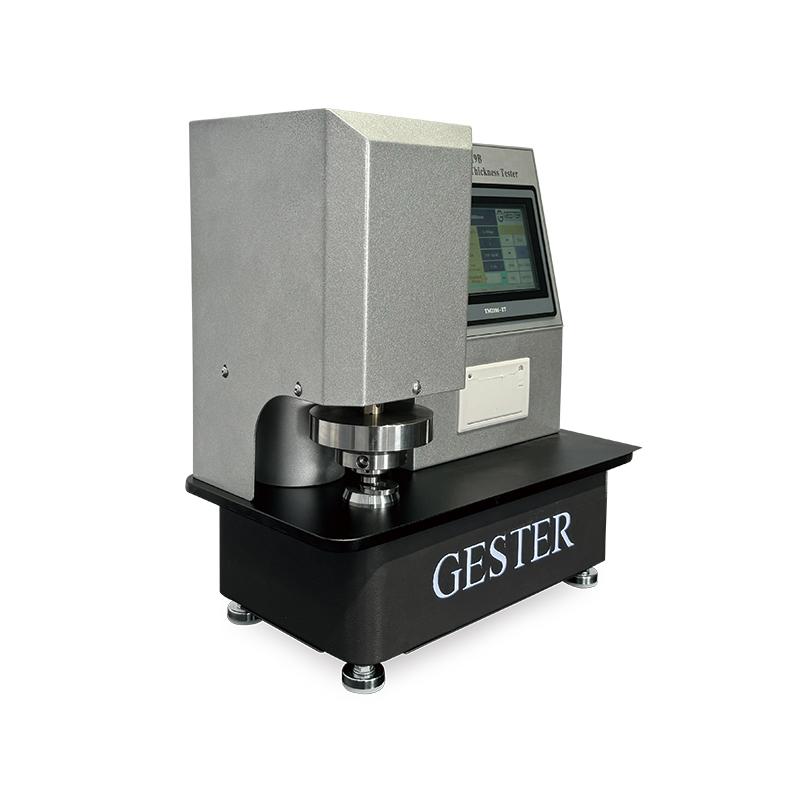

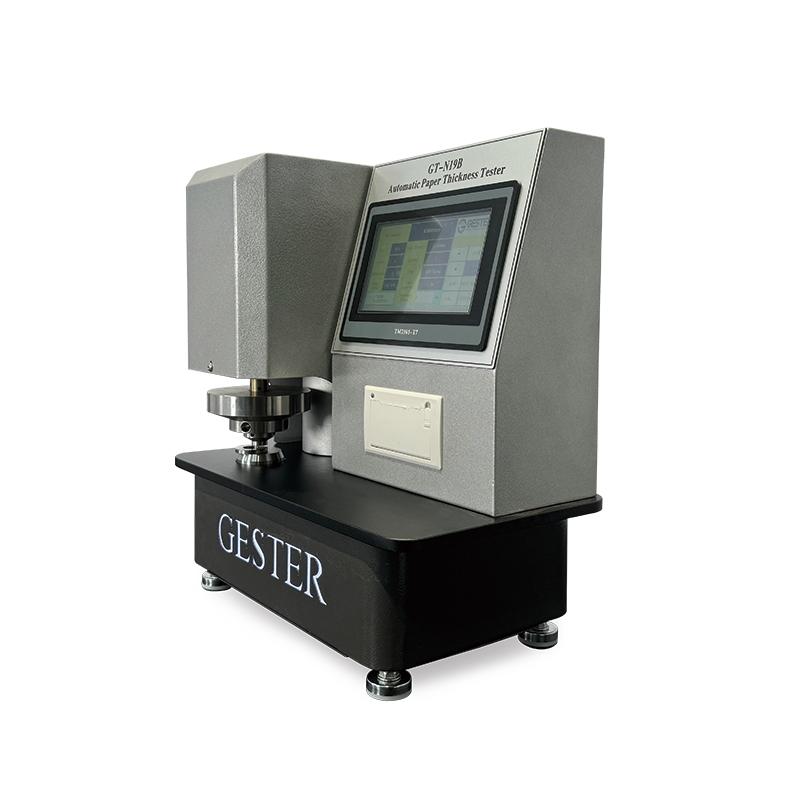

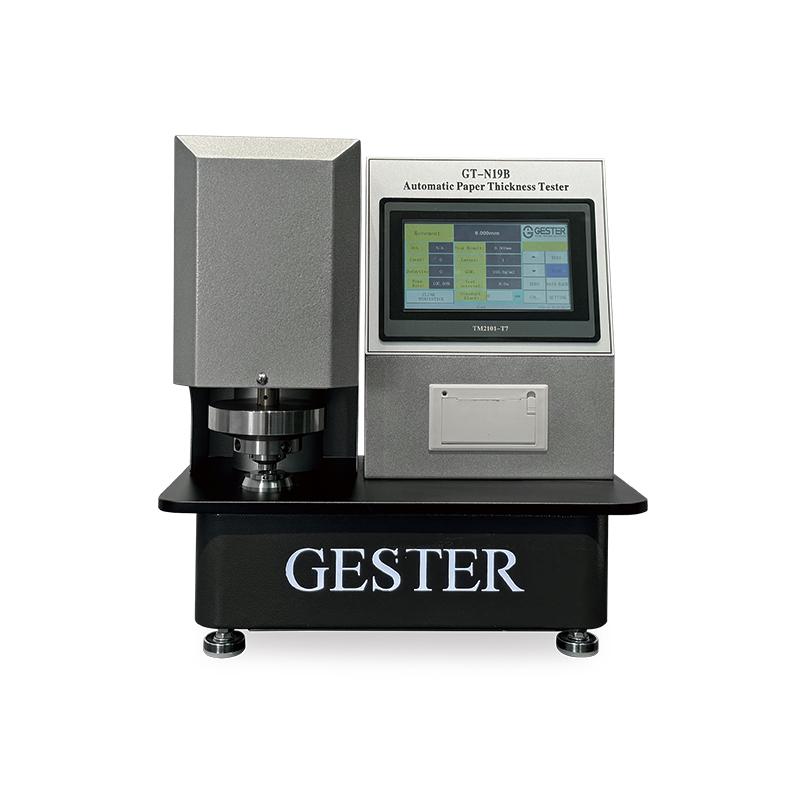

Automatic Paper Thickness Tester GT-N19B


Product Introduction

Application:

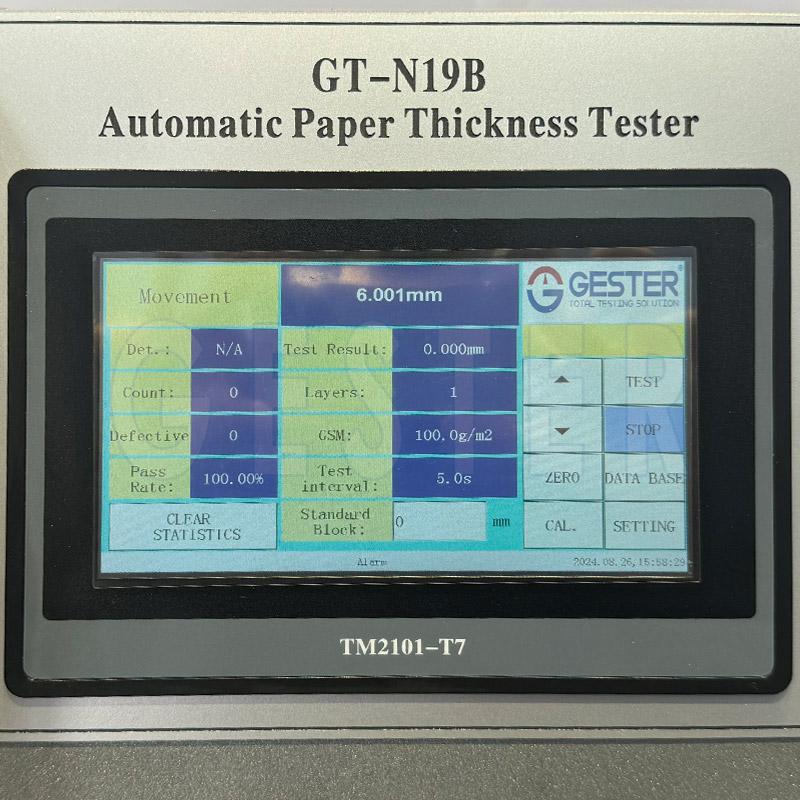

This tester with a electronic digital display, could measure the thickness of paper and paperboard automatically, which is a more advanced and accurate paper thickness tester. Thickness is one of basic elements of paper, it is relative to the peculiarity and strength of paper, and that also make thickness a important testing project. This Automatic Paper Thickness Tester is widely appropriate for paper, copy paper, offset paper, car paper, paperboard, enamel paper, white paperboard, specialty paper, kraft paper, gray paperboard and other flaky materials.


Standards:

GB/T 451.3, QB/T 1035, QB/T 1055, GB/T 24328.2, ISO 534, ISO 438, TAPPI T411



Key Specifications


Model

GT-N19B

Display

Touch screen display

Measuring range

0-5mm

Resolution

0.001mm

Indication error

±0.0025mm or±0.5

Indication volatility

0.0025mmor0.5

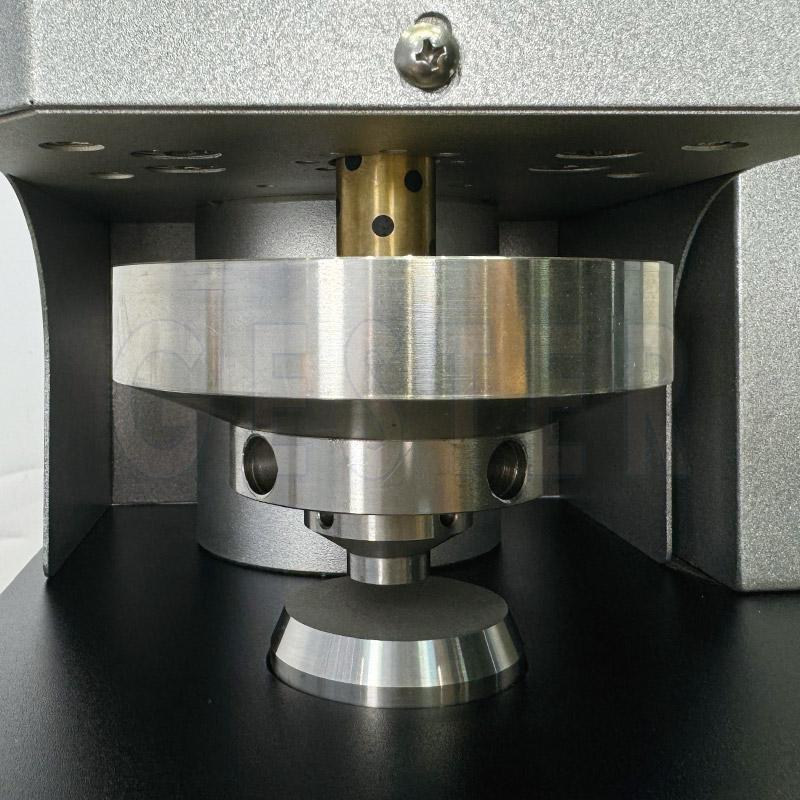

Parallelism between measure surfaces

0.002mm

Contact Area

200±5 mm²

Contact Pressure

100±5kpa

Measuring Head Descending Speed

0.510mm/s, can be adjustable

Printer

Thermal printer

Dimension

410×225×450 (L×W×H, mm)

Weight

About 25kg


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Cup Stiffness Tester
Cup Stiffness Tester GT-N77
This Paper cup Testing Equipment designed for test cup body stiffness for capacity cups, bowls, disposable plastic cups, tea cups and other products.
Read More
RCT Sample Cutter
RCT Sample Cutter GT-N11
GT-N11 Sampling Cutter is to get the required special sampling of Ring Crush test.
Read More
Coefficient of Friction Tester
Paper Friction Coefficient Tester GT-N35
Coefficient of Friction Tester is used to measure the friction coefficient of plastic film, thin sheet, paper and other materials when sliding on the surface of themselves or other materials.
Read More
Paper Air Permeability Tester
Schopper Air Permeability Tester GT-N56
This Schopper Air Permeability Tester was designed according to QB/T1667. It is used to test the air permeability of materials like paper, bag of cement, cable paper and so on.
Read More
brightness tester for paper
Brightness Tester GT-N04B
Paper Brightness And Opacity Tester Standards: ISO 2469,ISO 2470,ISO 2471, ISO 9416 etc.
Read More
Concora Medium Fluter Tester

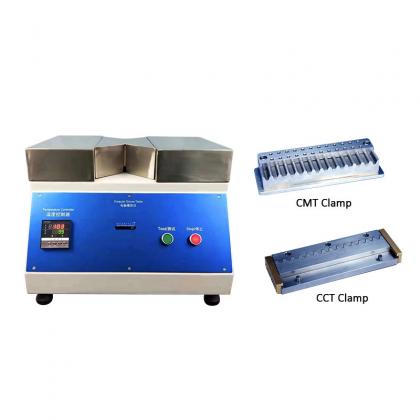

CMT CCT Corrugated Concora Medium Fluter Tester GT-N23
